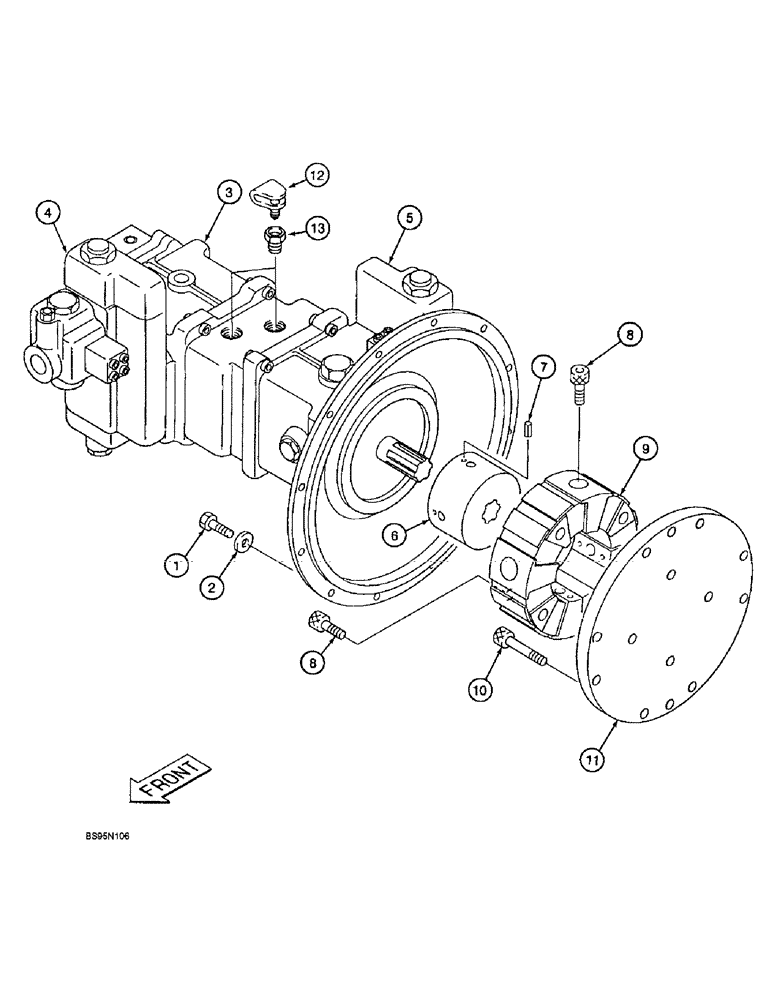

Запчасти Case 9010 (8-04) - HYDRAULIC PUMP COUPLING (08) - HYDRAULICS

1

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

9шт.

2

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

9шт.

153337A1

PUMP, HYDRAULIC

PUMP AND REGULATOR ASSEMBLY, hydraulic

1шт.

3

156803A1

PISTON

PUMP ASSEMBLY, hydraulic parts list Figure 8-14

1шт.

4

156874A1

CLUTCH SERVO

REGULATOR ASSEMBLY, pump front, parts list Figure 8-20

1шт.

5

156858A1

CLUTCH SERVO

REGULATOR ASSEMBLY, pump rear, parts list Figure 8-24

1шт.

6

152680A1

SPLINED COUPLING

COUPLING splined coupling

1шт.

150612A1

FLEXIBLE COUPLING

DAMPER ASSEMBLY vibration

1шт.

7

738-1510

LOCK PIN,M5 x 10, Slotted

PIN - roll, 5 x 10 mm

4шт.

8

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

BOLT hex socket 16 - 2.0 x 50 mm, class 12.9

8шт.

9

152578A1

COUPLING

DAMPER vibration

1шт.

10

862-16100

HEX SOC SCREW,M16 x 100mm, Cl 12.9

BOLT hex socket 16 - 2.0 x 100 mm, class 12.9

6шт.

11

157144A1

PUMP

PLATE pump drive

1шт.

12

S243647

COUPLING

ASSEMBLY quick disconnect

2шт.

13

151136A1

BUSHING

ADAPTER straight, special

2шт.
