(8-30) - HYDRAULIC CONTROL CIRCUIT, PUMP TO CONTROL VALVE

Запчасти Case 9010 (8-30) - HYDRAULIC CONTROL CIRCUIT, PUMP TO CONTROL VALVE (08) - HYDRAULICS

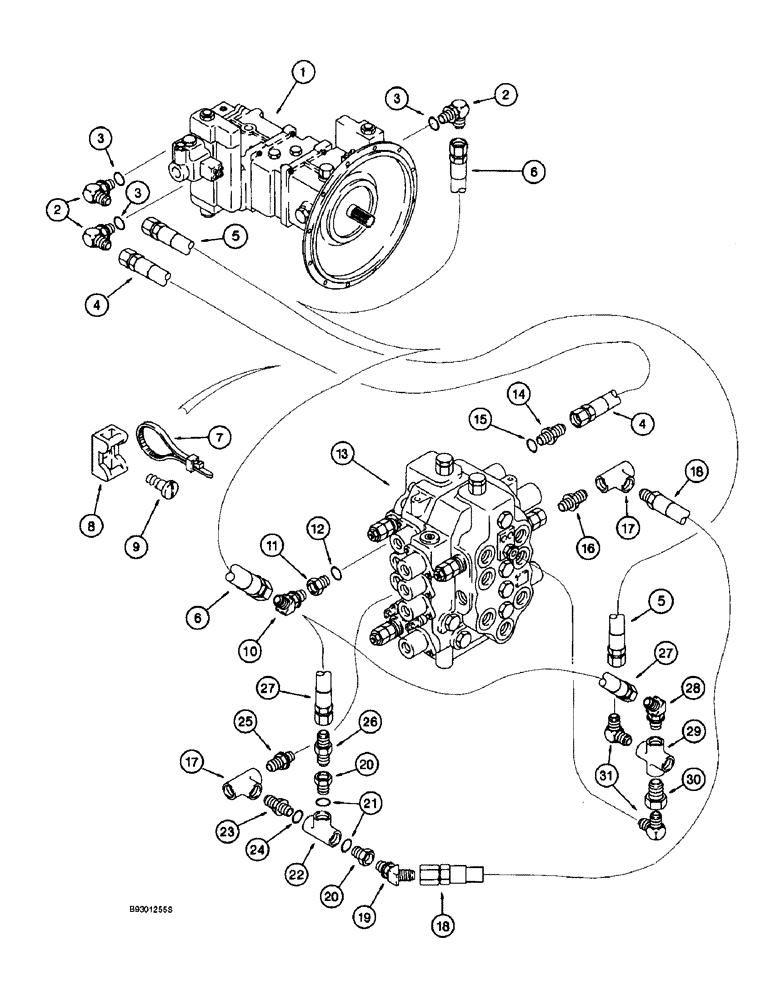

Схема запчастей Case 9010 - (8-30) - HYDRAULIC CONTROL CIRCUIT, PUMP TO CONTROL VALVE (08) - HYDRAULICS
15
12
14
21
10
4
27
3
18
5
18
11
6
28
5
30
26
16
2
9
27
31
29
3
17
7
4
24
1
23
3
19
25
17
20
2
13
22
6
8
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

153337A1

PUMP, HYDRAULIC

PUMP AND REGULATOR ASSEMBLY hydraulic parts list

1шт.

For complete pump, see Figures 8-04 and 8-14 - 8-24.

1шт.

2

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree hydraulic, Includes: Ref. 3

3шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

4

151892A1

HOSE,6.3mm ID x 1950mm L

- Pump to rear of control valve 1950.00 mm

1шт.

5

152989A1

HOSE ASSY.

HOSE 94-7/16 inch (2400 mm) long pump to left side of control valve

1шт.

6

152989A1

HOSE ASSY.

HOSE 94-7/16 inch (2400 mm) long pump to front of control valve

1шт.

7

150071A1

MOUNTING CLIP

STRAP tie 365 mm long

1шт.

8

150860A1

COLLAR

BRACKET support

2шт.

9

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

machine, pan Phillips 6 - 1.0 x 8 mm, clamp bracket mounting

2шт.

10

153599A1

ADAPTER

ELBOW 45 degree

1шт.

11

153412A1

SOCKET

ADAPTER straight, 1/4 PT x 7/16-20 inch O-ring boss, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

fitting

1шт.

13

153082A1

VALVE

ASSEMBLY control parts list Figures 8-60 - 8-66

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER straight hydraulic, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

16

152129A1

NIPPLE, LUBE

ADAPTER straight

1шт.

17

152135A1

TEE

hydraulic

2шт.

18

152388A1

HOSE,64.00 mm ID x 700.00 mm

- Valve swing section pilot 64.00 mm ID x 700.00 mm

1шт.

19

153599A1

ADAPTER

ELBOW, 45 degree

1шт.

20

152309A1

SOCKET

REDUCER special, Includes: Ref. 21

2шт.

21

154475A1

O-RING

reducer, was 150031A1

1шт.

22

153374A1

SHUT-OFF VALVE

VALVE shuttle

1шт.

23

152636A1

ADAPTER

straight hydraulic, Includes: Ref. 24

1шт.

24

154475A1

O-RING

adapter, was 150031A1

1шт.

25

152129A1

NIPPLE, LUBE

ADAPTER straight

1шт.

26

153603A1

ADAPTER

straight hydraulic

1шт.

27

152793A1

HOSE ASSY.

HOSE, 17-3/4 inch (450 mm) long front L.H. swing spool to left side of control valve

1шт.

28

153599A1

ADAPTER

ELBOW, 45 degree

1шт.

29

152303A1

4 WAY CONNECTION

CROSS special

1шт.

30

153601A1

ADAPTER

straight

1шт.

31

153596A1

ADAPTER

ELBOW 90 degree hydraulic

2шт.
