(8-32) - HYDRAULIC CONTROL CIRCUIT, PILOT LINES AT HYDRAULIC CONTROL AND BOOM HOLD VALVES

Запчасти Case 9010 (8-32) - HYDRAULIC CONTROL CIRCUIT, PILOT LINES AT HYDRAULIC CONTROL AND BOOM HOLD VALVES (08) - HYDRAULICS

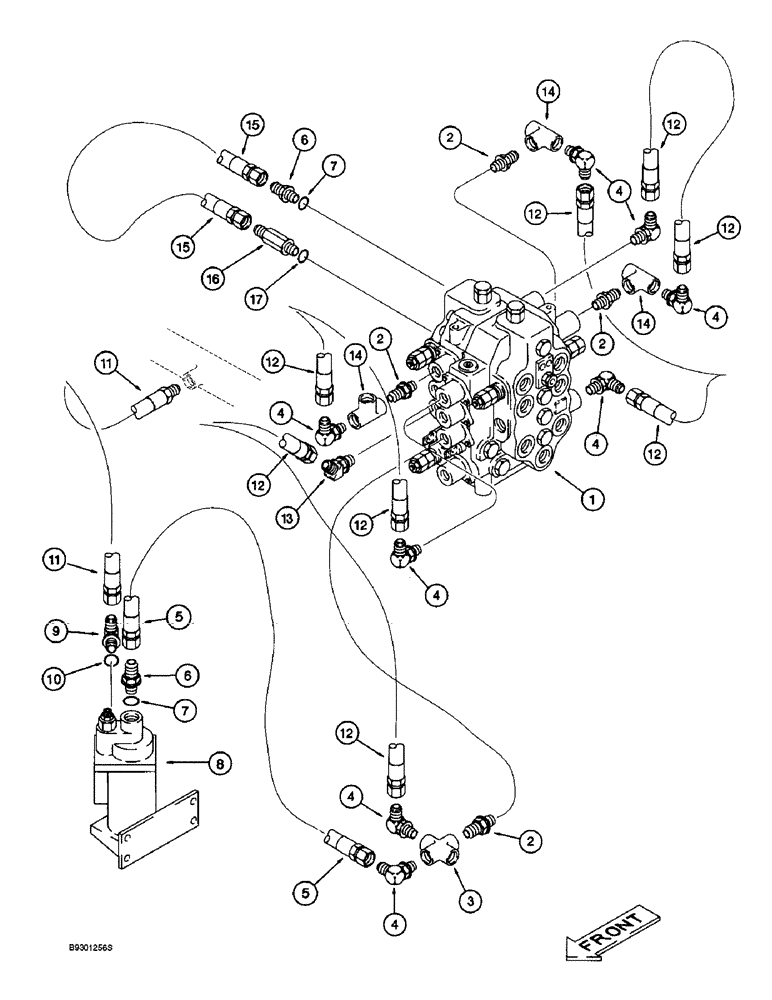

Схема запчастей Case 9010 - (8-32) - HYDRAULIC CONTROL CIRCUIT, PILOT LINES AT HYDRAULIC CONTROL AND BOOM HOLD VALVES (08) - HYDRAULICS
14
12
12
12
14
15
9
12
4
16
8
4
10
2
6
4
14
7
12
17
12
4
3
5
11
11
5
4
15
13
12
2
6
2
1
4
4
12
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

153082A1

VALVE

ASSEMBLY control parts list, Figures 8-60 - 8-66

1шт.

2

152129A1

NIPPLE, LUBE

ADAPTER straight hydraulic

2шт.

3

152303A1

4 WAY CONNECTION

CROSS special

1шт.

4

153596A1

ADAPTER

ELBOW 90 degree hydraulic

8шт.

5

152276A1

HOSE,63mm ID x 550mm L

- Control valve to boom hold valve 63.00 mm ID x 550.00 mm

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER straight hydraulic, Include: Ref. 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

8

153249A1

VALVE

ASSEMBLY anti-drift parts list Figure 8-70

1шт.

9

153559A1

ELBOW

90 degree, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

11

152802A1

HOSE

27-9/16 inch (700 mm) long boom holding valve, Serial Range: return-tank

1шт.

12

152276A1

HOSE,63mm ID x 550mm L

- Control valve pilot 63.00 mm ID x 550.00 mm

4шт.

13

153599A1

ADAPTER

ELBOW 45 degree

1шт.

14

152135A1

TEE

hydraulic

3шт.

15

152911A1

HOSE ASSY.

HOSE 13-3/4 inch (350 mm) long control valve pilot

1шт.

16

152919A1

STUD

BUSHING reducer hydraulic, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

reducer bushing

1шт.
