(8-50) - SWING MOTOR HYDRAULIC CIRCUIT

Запчасти Case 9010 (8-50) - SWING MOTOR HYDRAULIC CIRCUIT (08) - HYDRAULICS

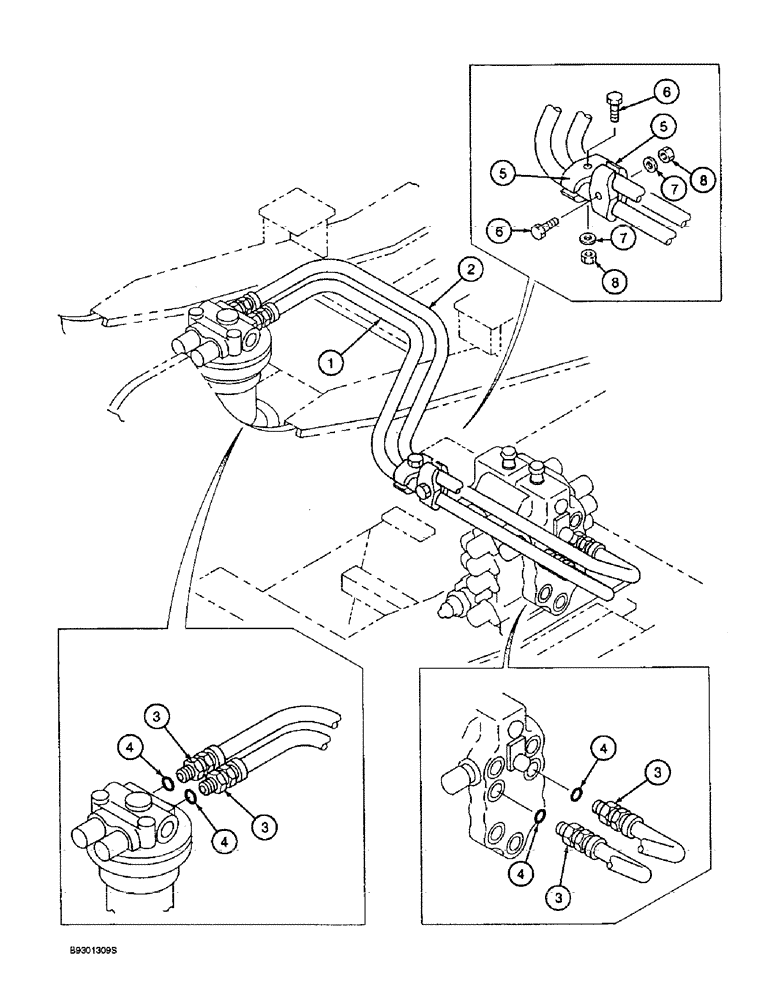

Схема запчастей Case 9010 - (8-50) - SWING MOTOR HYDRAULIC CIRCUIT (08) - HYDRAULICS
7
1
3
5
6
7
4
5
4
8
6
8
3
2
3
3
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

153226A1

TUBE

front port of control valve to swing motor

1шт.

2

153228A1

TUBE

rear port of control valve to swing motor

1шт.

3

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER straight hydraulic, Includes: Ref. 4

4шт.

4

154503A1

O-RING

adapter

1шт.

5

152742A1

COLLAR

CLAMP tube

4шт.

6

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

hex 12 - 1.75 x 65 mm, class 10.9

2шт.

7

150988A1

WASHER

flat, special 12 mm

2шт.

8

829-1312

NUT,M12 x 1.75, Cl 10

hex 12 mm - 1.75, class 10

2шт.
