(8-60) - 153082A1 CONTROL VALVE ASSEMBLY

Запчасти Case 9010 (8-60) - 153082A1 CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

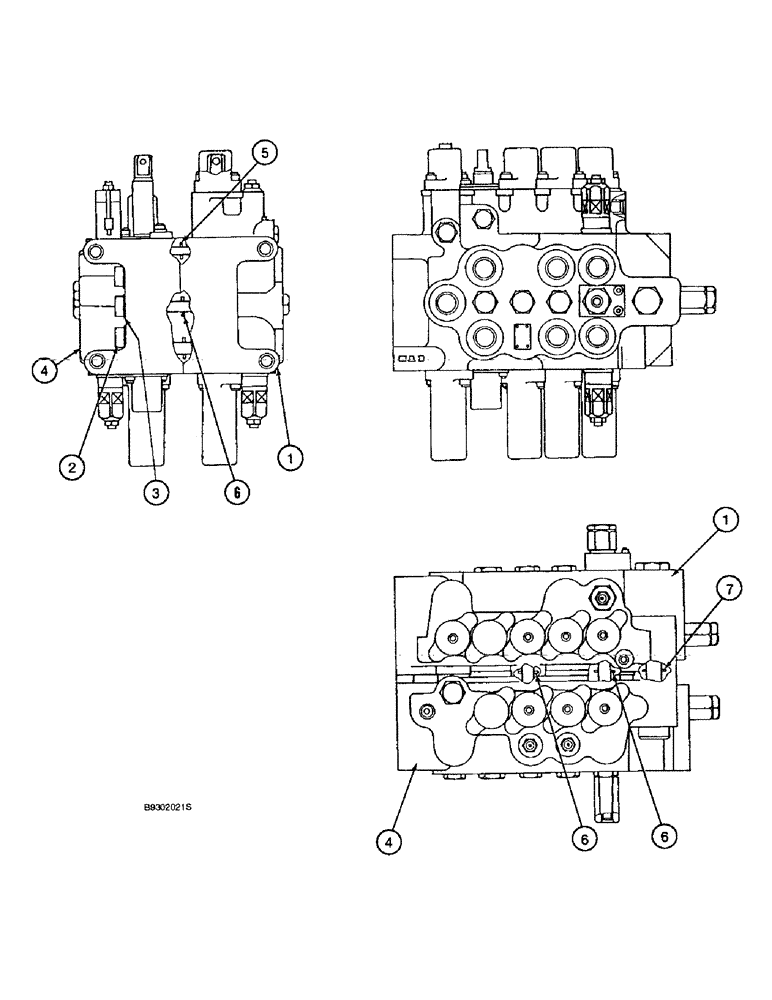

Схема запчастей Case 9010 - (8-60) - 153082A1 CONTROL VALVE ASSEMBLY (08) - HYDRAULICS
1
4
5
1
3
6
7
2
4
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

153082A1

VALVE

ASSEMBLY contro, Includes: Ref. 1-7l parts list Figures 8-60 - 8-67A

1шт.

1

155756A1

VALVE

SUBASSEMBLY left-hand, parts list Figures 8-62, 8-64 and 8-67A

1шт.

2

156169A1

BOLT

BOLT hex socket special

7шт.

3

156170A1

WASHER

special

7шт.

4

155755A1

VALVE

SUBASSEMBLY right-hand, parts list Figures 8-66 and 8-67A

1шт.

5

154479A1

O-RING

valve section, small

2шт.

6

155172A1

O-RING

valve section, medium

4шт.

7

154515A1

O-RING

valve section, large

1шт.
