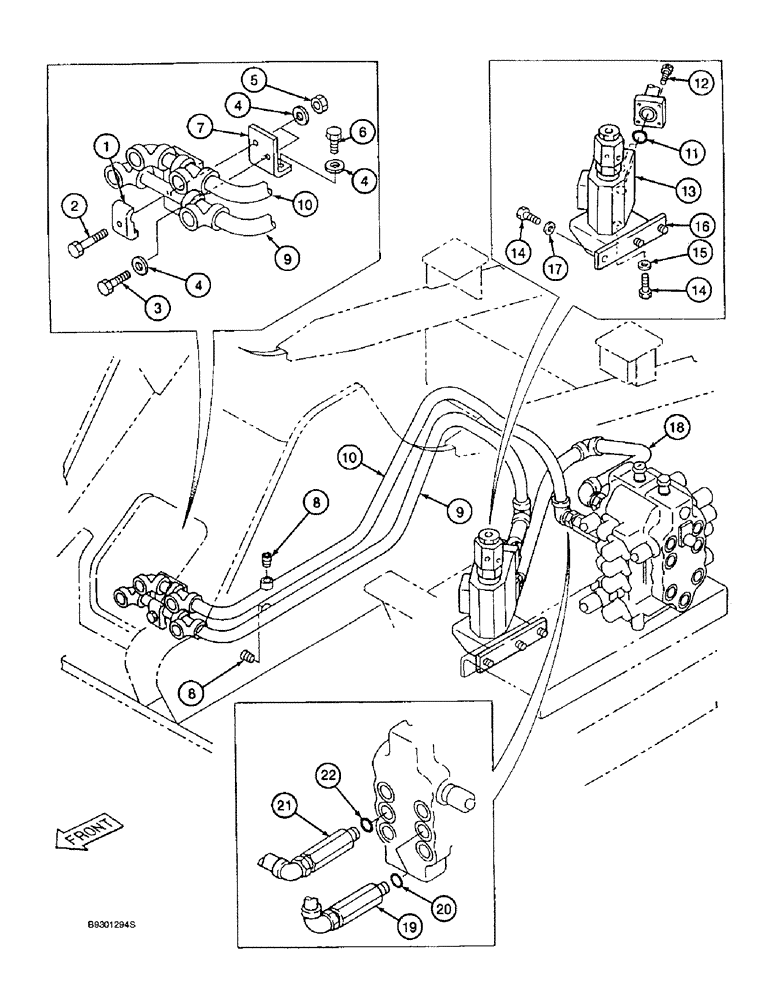

Запчасти Case 9010 (8-68) - BOOM HYDRAULIC CIRCUIT, CONTROL VALVE TO BASE OF BOOM (08) - HYDRAULICS

1

151486A1

CLAMP BRACKET

CLAMP tube

1шт.

2

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

hex 12 - 1.75 x 70 mm, class 10.9

1шт.

3

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

4

150988A1

WASHER

flat, special 12 mm

5шт.

5

829-1312

NUT,M12 x 1.75, Cl 10

hex 12 mm - 1.75, class 10

2шт.

6

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

2шт.

7

152563A1

BRACKET

mounting tube support

1шт.

8

151030A1

PLUG

port boom tubes

2шт.

9

153045A1

TUBE

to relief valve

1шт.

10

152968A1

TUBE

to control valve

1шт.

11

154548A1

O-RING

to boom holding valve

2шт.

12

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

BOLT hex socket 10 - 1.5 x 35 mm class 12.9

8шт.

13

153249A1

VALVE

ASSEMBLY anti-drift parts list Figure 8-70

1шт.

14

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

5шт.

15

151977A1

WASHER

flat 10 mm special

2шт.

16

153046A1

BRACKET

mounting

1шт.

17

150732A1

WASHER

special 10 mm

3шт.

18

153048A1

TUBE

to boom holding valve

1шт.

19

152019A1

ELEC CONNECTOR

ADAPTER straight front center port of control valve, Includes: Ref. 20

1шт.

20

154503A1

O-RING

adapter

1шт.

21

152021A1

CONNECTOR, ELEC

ADAPTER straight rear center port of control valve, Includes: Ref.22

1шт.

22

154503A1

O-RING

adapter

1шт.
