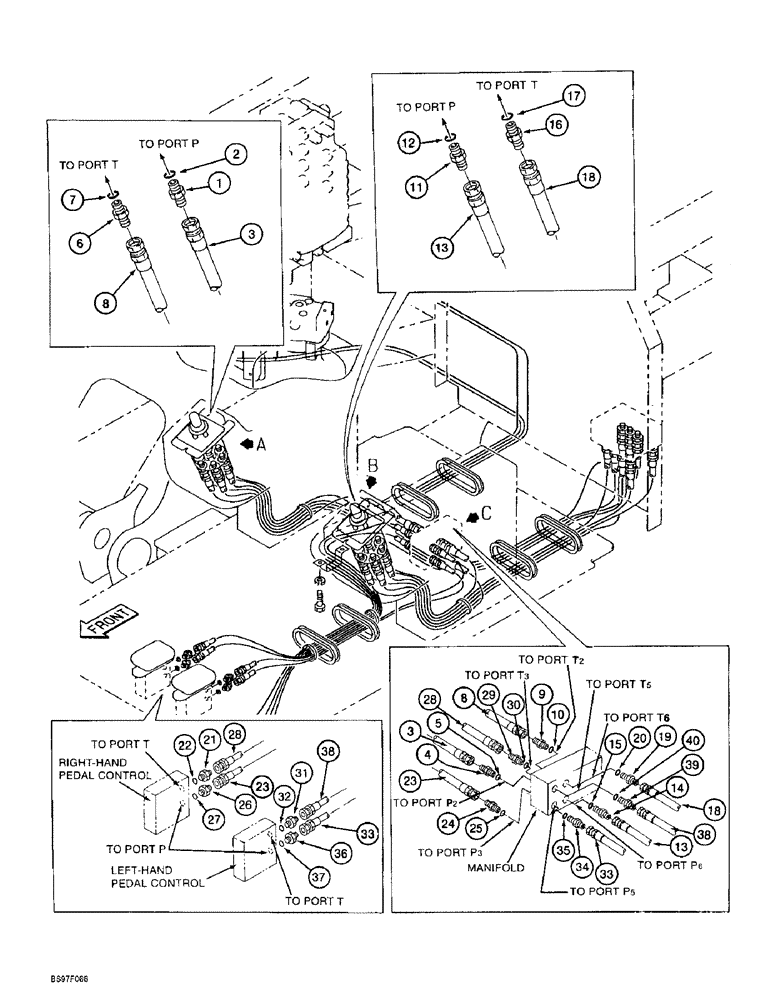

Запчасти Case 9010B (8-028) - CONTROL VALVE PRESSURE AND RETURN LINES (08) - HYDRAULICS

1

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

- straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159213A1

HYDRAULIC HOSE

HOSE - 1150 mm (45-1/4 inch) long, right-hand console-to-manifold pressure line (controller port P to manifold port P2)

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152747A1

ADAPTER

- straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

159214A1

HYDRAULIC HOSE

HOSE - 1200 mm (47-1/4 inch) long, right-hand console-to-manifold return line (controller port T to manifold port T2)

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154475A1

O-RING

- adapter

1шт.

11

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

- straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

159214A1

HYDRAULIC HOSE

HOSE - 1200 mm (47-1/4 inch) long, left-hand console-to-manifold pressure line (controller port P to manifold port P6)

1шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, hose, Includes: Ref. 15

1шт.

15

154475A1

O-RING

- adapter

1шт.

16

152747A1

ADAPTER

- straight, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

18

159213A1

HYDRAULIC HOSE

HOSE - 1150 mm (45-1/4 inch) long, left-hand console-to-manifold return line (controller port T to manifold port T6)

1шт.

19

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 20

1шт.

20

154475A1

O-RING

- adapter

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

23

151888A1

HOSE,63.00 mm ID x 1350.00 mm

- RH pedal-to-manifold pressure line (Controller port P to manifold port P3) 63.00 mm ID x 1350.00 mm

1шт.

24

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

26

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

28

151888A1

HOSE,63.00 mm ID x 1350.00 mm

- RH pedal-to-manifold return line (Controller port T to manifold port T3) 63.00 mm ID x 1350.00 mm

1шт.

29

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

31

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 32

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

33

152517A1

HOSE,63mm ID x 1100mm L

- LH pedal-to-manifold pressure line (Controller port P to tee in manifold port P5) 63.00 mm ID x 1100.00 mm

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

36

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

38

152517A1

HOSE,63mm ID x 1100mm L

- LH pedal-to-manifold return line (Controller port T to tee in manifold port T5) 63.00 mm ID x 1100.00 mm

1шт.

39

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.
