(9-012) - COUNTERWEIGHT

Запчасти Case 9010B (9-012) - COUNTERWEIGHT (09) - CHASSIS

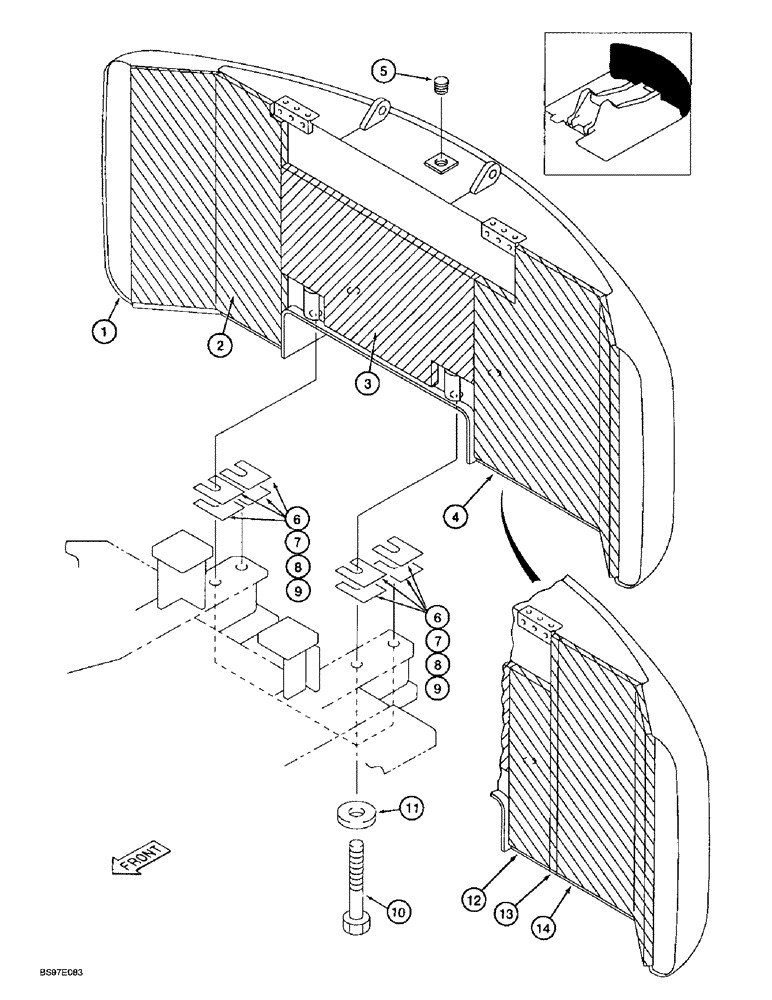

Схема запчастей Case 9010B - (9-012) - COUNTERWEIGHT (09) - CHASSIS
9
1
4
6
9
5
6
8
7
11
8
3
7
12
10
14
2
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

164743A1

WEIGHT PACKAGE

COUNTERWEIGHT - boom and arm, replaces 161114A1, counterweight

1шт.

2

161105A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

3

164902A1

NOISE PROTECTION

INSULATION - acoustic, replaces 161106A1, insulation

1шт.

4

161107A1

NOISE PROTECTION

INSULATION - acoustic, machines only, Serial Range: -DAC01#2001

1шт.

See Figure 1-002 for explanation of model variations.

1шт.

5

150139A1

PLUG

special

1шт.

6

158933A1

SHIM

- plate, 0.8 mm (0.03 inch) thick

1шт.

7

158934A1

SHIM

- plate, 1.2 mm (0.05 inch) thick

1шт.

8

158935A1

ADJUSTING PLATE

SHIM - plate, 2.3 mm (0.09 inch) thick

1шт.

9

158936A1

ADJUSTING PLATE

SHIM - plate, 4.5 mm (0.18 inch) thick

1шт.

10

826-27240

BOLT,Hex, M27 x 3 x 240mm, Cl 10.9

- hex, 27 - 3.0 x 240 mm, class 10.9

4шт.

11

163857A1

WASHER

- special, replaces 157544A1, washer

4шт.

12

165567A1

NOISE PROTECTION

INSULATION - acoustic, machines only, Start Serial: DAC01#2001

1шт.

See Figure 1-002 for explanation of model variations.

1шт.

13

165569A1

CUSHION

INSULATION - acoustic, machines only, Start Serial: DAC01#2001

1шт.

See Figure 1-002 for explanation of model variations.

1шт.

14

165568A1

NOISE PROTECTION

INSULATION - acoustic, machines only, Start Serial: DAC01#2001

1шт.

See Figure 1-002 for explanation of model variations.

1шт.
