(6-018) - TRACK DRIVE MOTOR, CONTROL VALVE ASSY,STD MODELS PIN DAC0101222 & AFT,ALL SPECIAL APPLICATION MODELS

Запчасти Case 9010B (6-018) - TRACK DRIVE MOTOR, CONTROL VALVE ASSY,STD MODELS PIN DAC0101222 & AFT,ALL SPECIAL APPLICATION MODELS (06) - POWER TRAIN

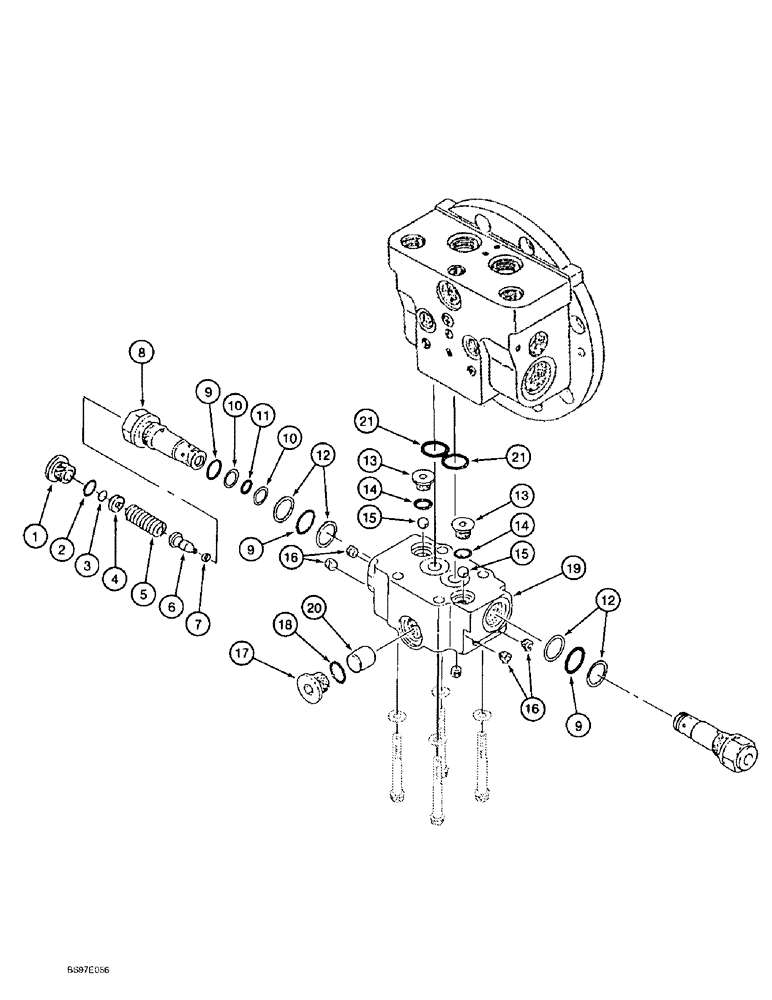

Схема запчастей Case 9010B - (6-018) - TRACK DRIVE MOTOR, CONTROL VALVE ASSY,STD MODELS PIN DAC0101222 & AFT,ALL SPECIAL APPLICATION MODELS (06) - POWER TRAIN
4
10
20
14
19
11
12
3
17
16
21
9
13
10
16
8
1
5
15
7
14
13
6
15
9
18
21
2
9
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

164691A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, includes all parts listed on Figures 6-10, 6-14, and 6-18, Includes: Ref. 1 - 20

1шт.

164692A1

MOTOR, HYDRAULIC

VALVE ASSEMBLY - base plate, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

2

154483A1

O-RING

- outer, valve cartridge

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - special

2шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - spring

2шт.

5

NSS

NOT SOLD SEPARAT

SPRING - valve

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE - base plate

2шт.

7

165218A1

SEAL

SEAL - piston

2шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - valve

2шт.

9

154491A1

O-RING

- intermediate, valve cartridge

4шт.

10

153961A1

BACK-UP RING

RING - backup

4шт.

11

154475A1

O-RING

- inner, valve cartridge

2шт.

12

153974A1

BACK-UP RING

RING - backup

4шт.

13

165236A1

PLUG

- port, valve body

2шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

- port plug

2шт.

15

160979A1

BALL

- steel

2шт.

16

155490A1

PLUG

- port, valve body

5шт.

17

165237A1

PLUG

- valve body

1шт.

18

154487A1

O-RING

- plug

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON - valve body

1шт.

21

154487A1

O-RING

- seal, valve assembly

2шт.
