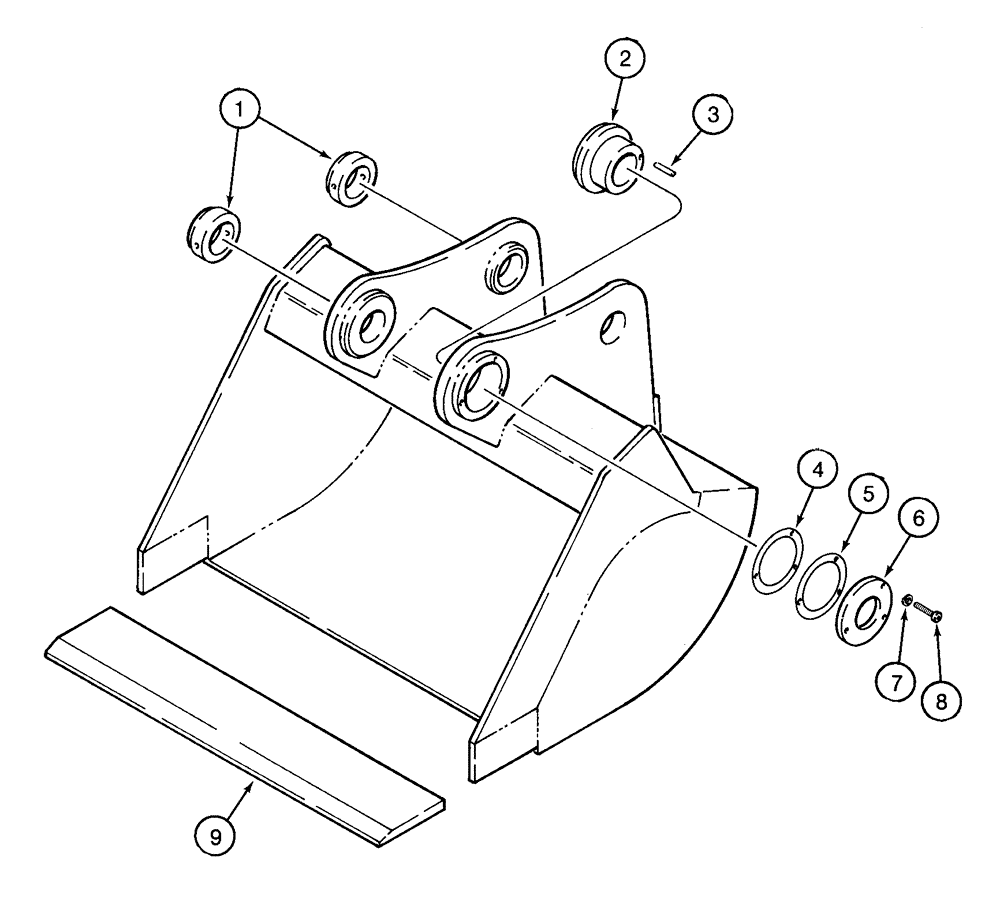

Запчасти Case 9020 (9-54) - CENTRAL FABRICATORS BUCKETS, DITCH, DITCH BUCKET ASSEMBLY (09) - CHASSIS

REF

INSTRUCTION

BUCKET ASSEMBLY 48 inch (1220 mm), 0.72 cu. yd. mm, Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY 60 inch (1524 mm), 0.90 cu. yd. mm, Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122705A1

LATCH

BUSHING bucket, with locking collar

2шт.

2

122701A1

BUSHING

bucket, adjustable, Includes: Ref. 3

1шт.

3

37-1816

DOWEL,1/2" x 1"

PIN, 1/2 x 1 inch, hardened

1шт.

4

122702A1

SHIM

plate mounting, 0.039 inch thick

1шт.

5

122703A1

SHIM

plate mounting, 0.020 inch thick

1шт.

6

122704A1

RETAINER

PLATE bushing

1шт.

7

140030

LOCK WASHER,M14

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

hex, socket, 14 - 2.0 x 50 mm, class 12.9

3шт.

9

125034A1

PLATE

EDGE cutting, center 48 inch (1219 mm) bucket

1шт.

9

125035A1

PLATE

EDGE cutting, center 60 inch (1524 mm) bucket

1шт.
