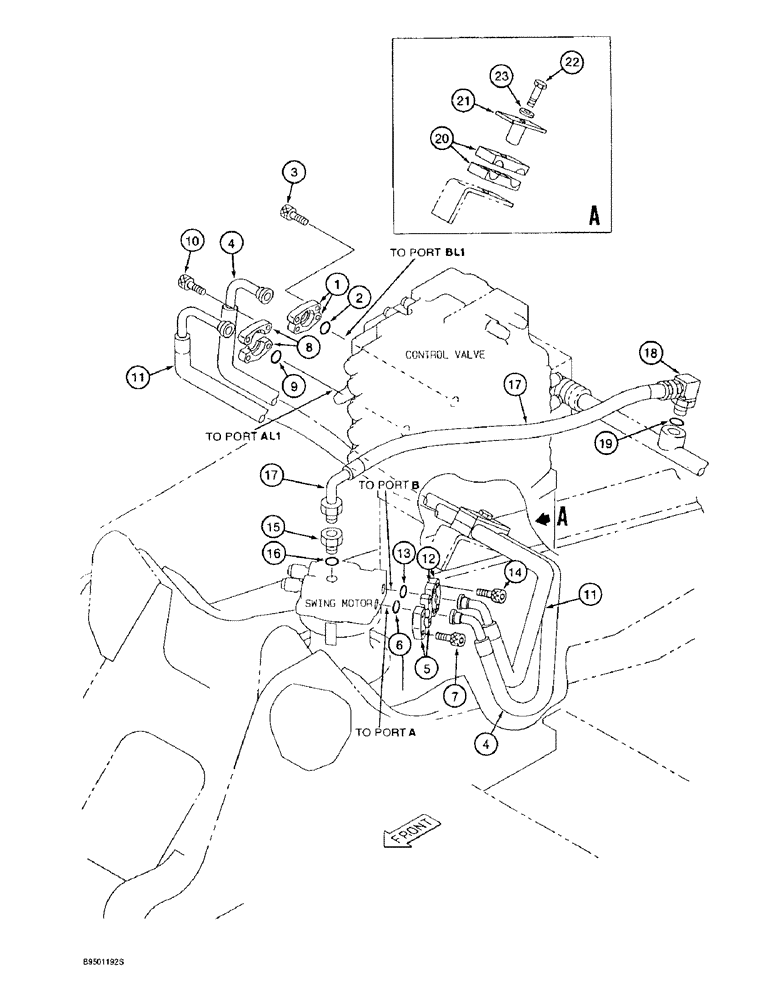

Запчасти Case 9020B (8-054) - SWING MOTOR CIRCUIT (08) - HYDRAULICS

1

161080A1

FLANGE

- split

2шт.

2

161096A1

O-RING

- split flange

1шт.

3

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 30 mm, class 12.9

4шт.

4

161543A1

HYDRAULIC HOSE,12.70 mm ID x 1200.00 mm

- Swing right power line (Control valve port "BL1" to swing motor port "A") 12.70 mm ID x 1200.00 mm

1шт.

5

153458A1

FLANGE

- split

2шт.

6

155210A1

O-RING

- seal, split flange

1шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

8

161080A1

FLANGE

- split

2шт.

9

161096A1

O-RING

- split flange

1шт.

10

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 30 mm, class 12.9

4шт.

11

161542A1

HYDRAULIC HOSE,12.70 mm ID x 1090.00 mm

- Swing left power line (Control valve port "AL1" to swing motor port "B") 12.70 mm ID x 1090.00 mm

1шт.

12

153458A1

FLANGE

- split

2шт.

13

155210A1

O-RING

- seal, split flange

1шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

15

159387A1

ADAPTER

- straight, special, Includes: Ref. 16

2шт.

16

154523A1

O-RING

- reducer

1шт.

17

163501A1

HYDRAULIC HOSE

HOSE - 460 mm (18-1/8 inch) long, return line from swing motor

1шт.

18

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 19

1шт.

19

154503A1

O-RING

- elbow

1шт.

20

161187A1

COLLAR

CLAMP - hose

2шт.

21

161186A1

CLAMP

RETAINER - clamp

1шт.

22

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

1шт.

23

150811A1

WASHER

- flat, special, 12 mm

1шт.
