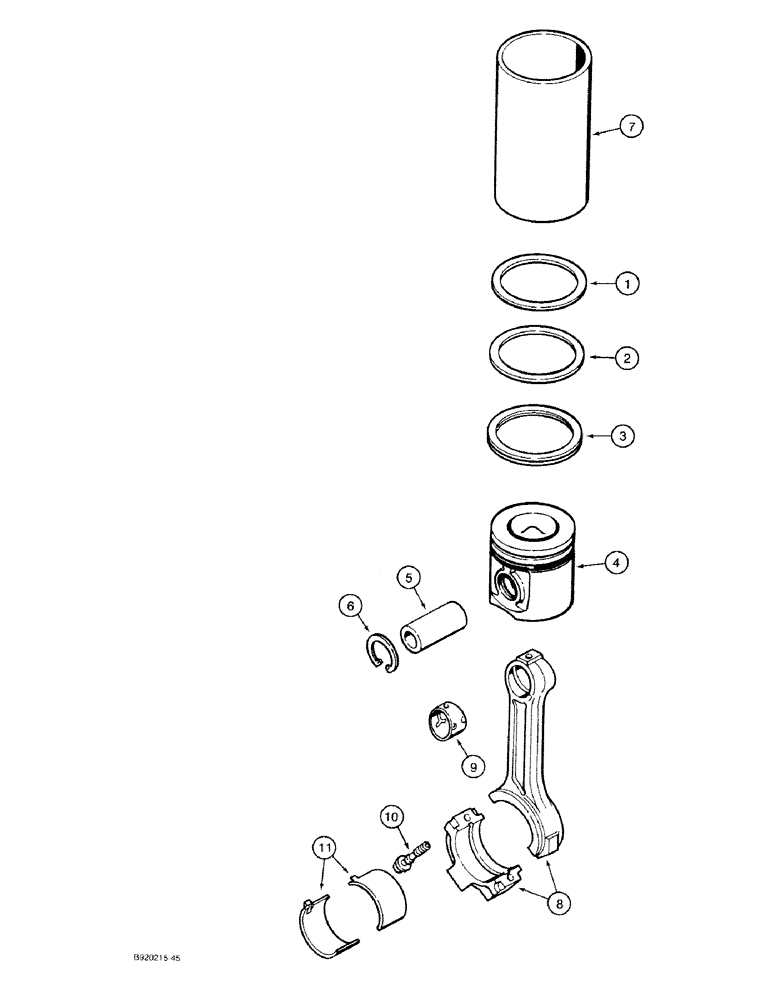

Запчасти Case 9030 (2-42) - PISTONS & CNNCT ROD,6T-590 ENG (02) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

KIT - piston, standard, Includes: Ref. 1 - 6

6шт.

A77727

PISTON RING SET

KIT - ring, standard, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard (Stamped 7163)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- retainer, pin

2шт.

A77731

PISTON & RINGS KIT

KIT - piston, 0.5 mm oversize, Includes: Ref. 1 - 6

6шт.

A77728

PISTON RING SET

KIT - ring, 0.5 mm oversize, piston, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top, 0.5 mm oversize piston

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle, 0.5 mm oversize piston

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom, 0.5 mm oversize piston

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize (Stamped 8815)

1шт.

5

J901793

PISTON PIN

PIN - piston, 0.5 mm oversize

1шт.

6

J901706

RING

- retainer, pin, 0.5 mm oversize piston

2шт.

A77732

PISTON

KIT - piston, 1.0 mm oversize, Includes: Ref. 1 - 6

6шт.

A77729

PISTON RING SET

KIT - ring, 1.0 mm oversize, piston, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top, 1.0 mm oversize piston

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle, 1.0 mm oversize piston

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom, 1.0 mm oversize piston

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize (Stamped 8816)

1шт.

5

J901793

PISTON PIN

PIN - piston, 1.0 mm oversize

1шт.

6

J901706

RING

- retainer, pin, 1.0 mm oversize piston

2шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair (when liner is installed, use A77730 standard piston kit), 1.0 mm oversize

1шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY - connecting, replaces J901569 rod, Includes: Ref. 8 - 10

1шт.

JR925232

ROD

Assembly - remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 8 - 10

1шт.

JC925232

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit when using a remanufactured assembly, Includes: Ref. 8 - 10

1шт.

84145405R

REMAN-CONNECTING ROD

9030 (11/92-), Reman For New PN J925232

1шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

1шт.

JC942581

CORE-ROD CONNECTING

Return Number

1шт.

JC901569

CORE-ROD CONNECTING

Return Number, Connecting Rod

1шт.

8

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

9

J901085

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, connecting rod

2шт.

11

A77465

BEARING SET

KIT - bearing, standard, upper and lower set, connecting rod

6шт.

11

A77466

BEARING SET

KIT - bearing, 0.25 mm undersize, upper and lower set, connecting rod

6шт.

11

A77467

BEARING LINER

KIT - bearing, 0.50 mm undersize, upper and lower set, connecting rod

6шт.

11

A77468

BEARING SET

KIT - bearing, 0.75 mm undersize, upper and lower set, connecting rod

6шт.

11

A77469

BEARING SET

KIT - bearing, 1.00 mm undersize, upper and lower set, connecting rod

6шт.
