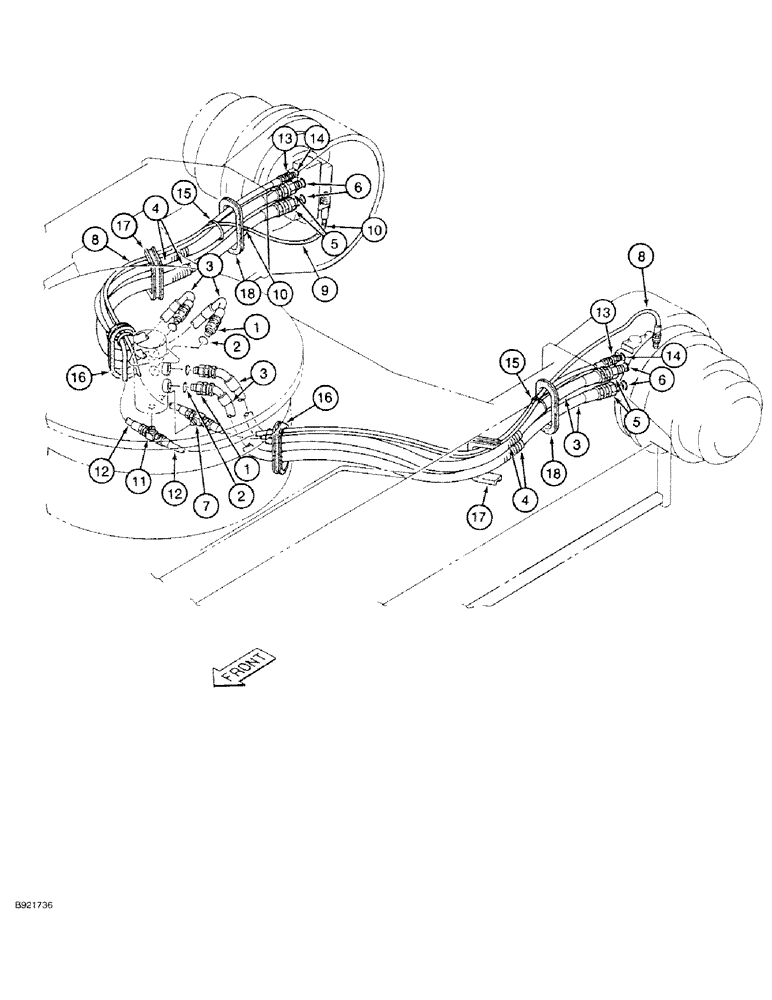

Запчасти Case 9030 (6-16) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN

1

153001A1

ADAPTER

- hose, at swivel, Includes: Ref. 2

4шт.

2

154503A1

O-RING

-, Serial Range: adapter-swivel

1шт.

3

152537A1

HOSE ASSY.

HOSE - hydraulic, side of swivel to track drive motors

4шт.

4

152539A1

GUARD

- hose

4шт.

5

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - hose to track drive motor, Includes: Ref. 6

4шт.

6

154523A1

O-RING

- adapter, at track drive motor

1шт.

7

152509A1

TEE

- hydraulic, at lower rear side port of swivel

1шт.

8

151895A1

HOSE,2450.00 mm

- Nylon, Swivel to track drive motors 2450.00 mm

2шт.

For fitting from hose to drive motor order P/N 155482A1, Figure 6-10, Ref. 19

1шт.

9

150394A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 500 mm Length

TUBE - hydraulic, to RH track drive motor

1шт.

10

150067A1

MOUNTING CLIP

STRAP - tie

2шт.

11

152195A1

TEE

- hydraulic, at swivel bottom

1шт.

12

152435A1

HYDRAULIC HOSE,12.70 mm ID x 2150.00 mm

At bottom of swivel 12.70 mm ID x 2150.00 mm

2шт.

13

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - hose, at track drive motor, Includes: Ref. 14

2шт.

14

154487A1

O-RING

- adapter

1шт.

15

150071A1

MOUNTING CLIP

STRAP - tie

2шт.

16

152511A1

CUSHION ASSY.

GROMMET - rubber

2шт.

17

152268A1

FRAME ASSY

GROMMET - rubber

2шт.

18

152516A1

CUSHION ASSY.

GROMMET - rubber

2шт.
