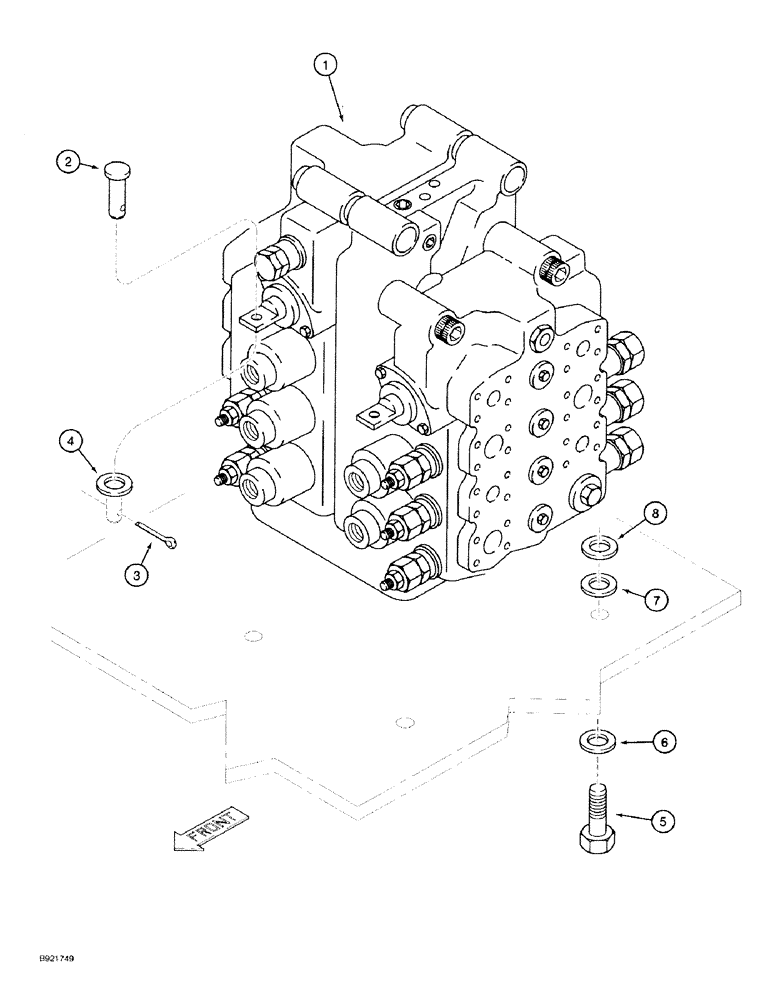

Запчасти Case 9030 (8-58) - CONTROL VALVE MOUNTING (08) - HYDRAULICS

153561A1

CONTROL

VALVE ASSEMBLY - hydraulic control, with clevis pins, for models with 7-3/4 or 9-2/3 foot arm, Includes: Ref. 1 - 4

1шт.

158374A1

VALVE

ASSEMBLY - hydraulic control, with clevis pins, for models with 22-1/2 foot (long reach) arm, Includes: Ref. 1 - 4

1шт.

1

153562A1

CONTROL

VALVE ASSEMBLY - hydraulic control, without clevis pins, for models with 7-3/4 or 9-2/3 foot arm, parts list Figures 8-60 - 8-66

1шт.

1

158022A1

VALVE, CONTROL

VALVE ASSEMBLY - hydraulic control, without clevis pins, for models with 22-1/2 foot (long reach) arm, parts list Figures 8-60 - 8-66

1шт.

2

150842A1

HEADED PIN

PIN - clevis

3шт.

3

732-2516

COTTER PIN,M2.5 x 16

PIN - cotter, 2.5 x 16 mm

3шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

5

626-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

6

150991A1

WASHER

- special

4шт.

7

150570A1

WASHER

- flat, valve mounting

4шт.

8

150575A1

WASHER

- flat, valve mounting

4шт.
