(8-114) - ARM AND BOOM HOLDING OPTION, ARM COMPONENTS, MODELS WITH LONG REACH

Запчасти Case 9030B (8-114) - ARM AND BOOM HOLDING OPTION, ARM COMPONENTS, MODELS WITH LONG REACH (08) - HYDRAULICS

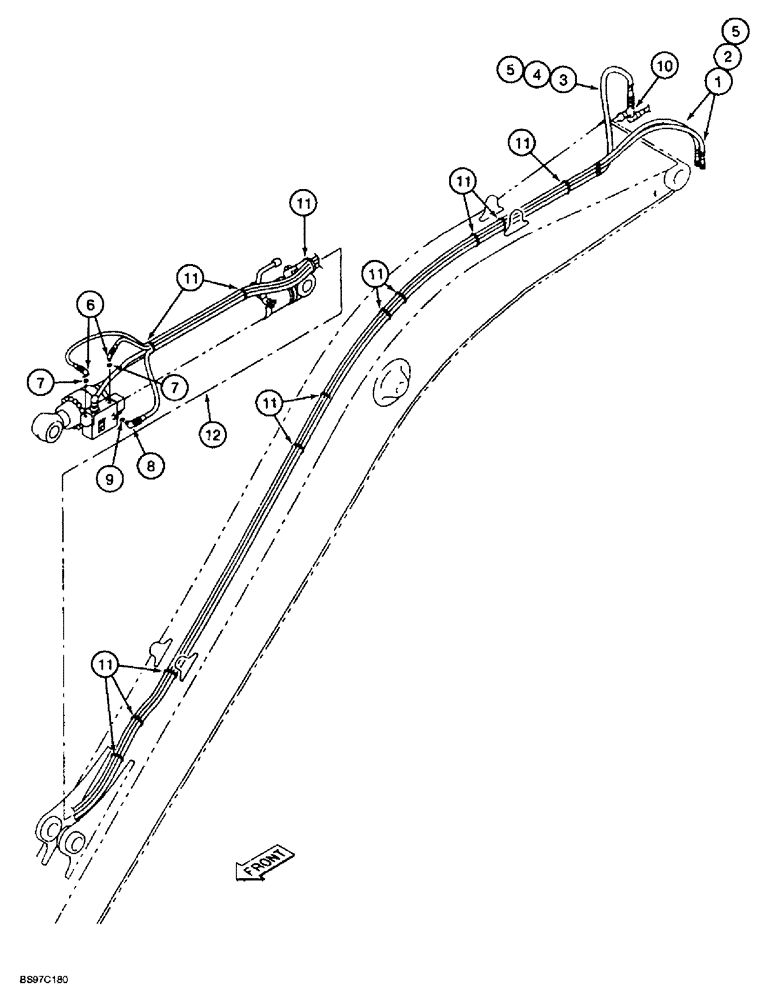

Схема запчастей Case 9030B - (8-114) - ARM AND BOOM HOLDING OPTION, ARM COMPONENTS, MODELS WITH LONG REACH (08) - HYDRAULICS
11
2
7
11
8
9
11
12
11
11
10
12
5
11
1
3
7
5
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

164396A1

HYDRAULIC HOSE

9300 mm

2шт.

2

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

2шт.

3

164397A1

HYDRAULIC HOSE,12.70 mm ID x 9300.00 mm

12.70 mm ID x 9300.00 mm

1шт.

4

158061A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

5

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

6шт.

6

159367A1

ELBOW

- 90 degree, special, Includes: Ref. 7

2шт.

7

154475A1

O-RING

- elbow

2шт.

8

159370A1

ELBOW

- 90 degree, special, Includes: Ref. 9

1шт.

9

154487A1

O-RING

- elbow

1шт.

10

150073A1

ADAPTER

- straight

1шт.

11

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

13шт.

12

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, see Figures 8-175A and 8-178 for correct cylinder and components

1шт.
