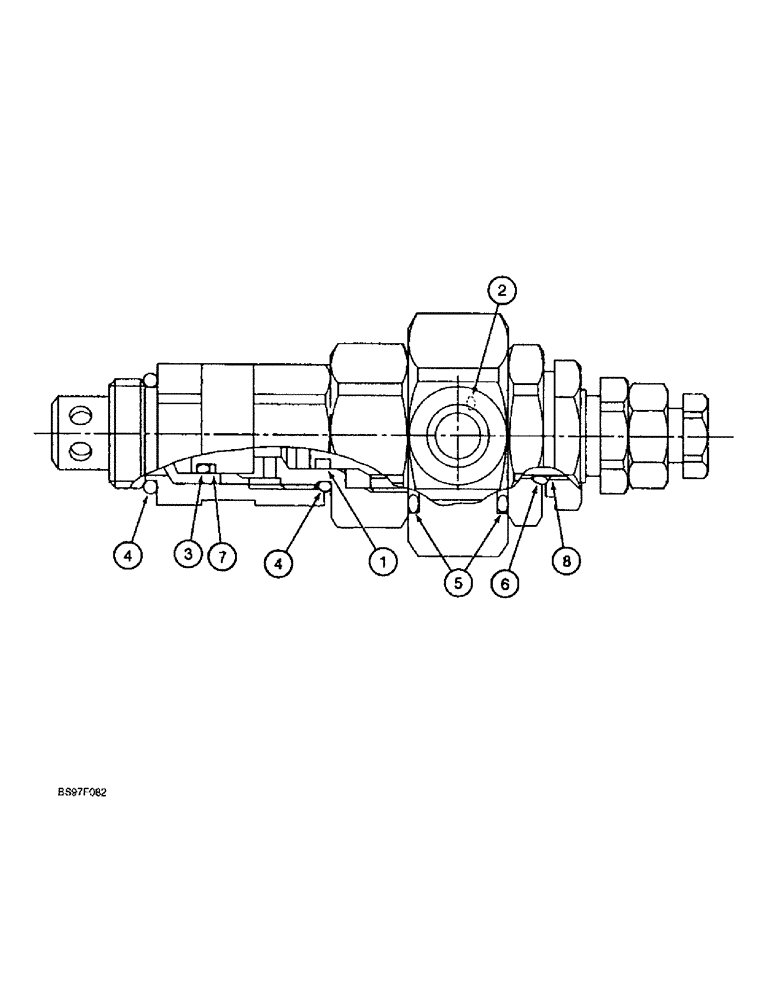

Запчасти Case 9030B (8-152) - HYDRAULIC CONTROL VALVE COMPONENTS, MAIN RELIEF VALVE COMPONENTS (08) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - control, see Figure 8-136 for correct valve assembly, Includes: Ref. 1 - 8 on this figure and parts on Figures 8-136 - 8-150

1шт.

160131A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, main, 161873A1 and 162839A1 valves, Includes: Ref. 1 - 8

1шт.

165835A1

VALVE

ASSEMBLY - relief, main, 165058A1 and 165060A1 valves, Includes: Ref. 1 - 8

1шт.

1

154470A1

O-RING

- valve

1шт.

2

154462A1

O-RING

- valve

1шт.

3

159982A1

O-RING

- valve

1шт.

4

155223A1

O-RING

- valve

2шт.

5

154538A1

O-RING

- valve

2шт.

6

155222A1

O-RING

- valve

1шт.

7

153964A1

BACK-UP RING

RING - backup, valve

1шт.

8

159985A1

BACK-UP RING

RING - backup, valve

1шт.
