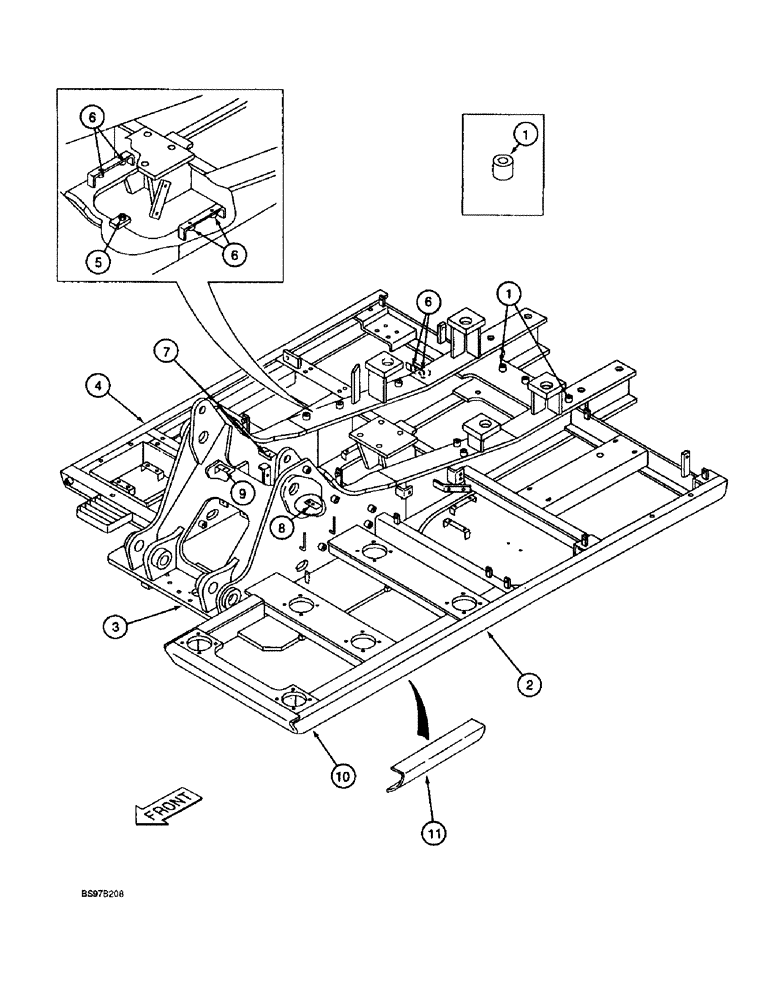

Запчасти Case 9030B (9-008) - TURNTABLE, STANDARD MODELS P.I.N. DAC0301004 THRU DAC0302000 (09) - CHASSIS

1

158811A1

BOSS

- special

40шт.

2

161473A1

FRAME

PLATFORM - turntable, left-hand, no longer available, order Ref. 10 161022A1

1шт.

3

159753A1

FRAME

PLATFORM - boom mounting, no longer available, order Ref. 10 161022A1

1шт.

4

161023A1

FRAME

PLATFORM - turntable, right-hand, no longer available, order Ref. 10 161022A1

1шт.

5

158918A1

SPECIAL NUT

- special

1шт.

6

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

6шт.

7

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

1шт.

8

162866A1

BAR

- base

1шт.

9

164904A1

BAR

- base, replaces part 162867A1

1шт.

10

161022A1

FRAME ASSY

FRAME - revolving, complete

1шт.

11

159752A1

ANGLE BAR

GUARD - formed angle iron, 2546 mm (100 inch) long, frame repair

1шт.

Repair guard used on turntable sides. Guard is long enough to repair any side of the turntable. Cut and use the required length for the damaged side.

1шт.
