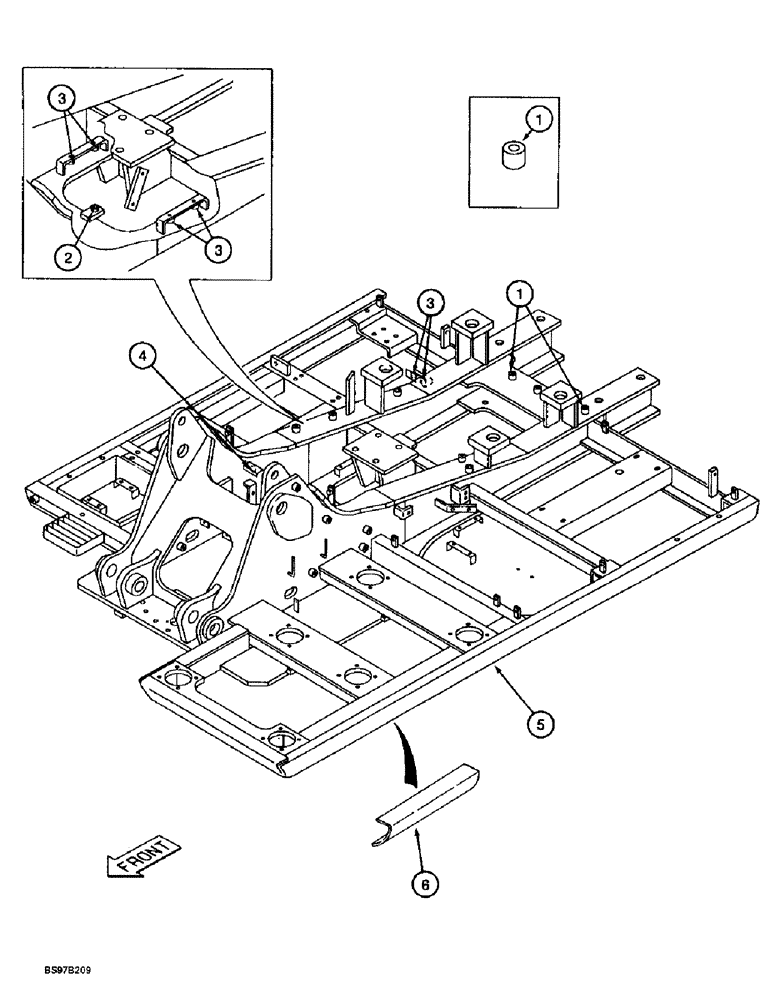

Запчасти Case 9030B (9-010) - TURNTABLE, ALL MODELS EXCEPT TIMBER KING MODELS, P.I.N. DAC03#2001 AND AFTER (09) - CHASSIS

1

158811A1

BOSS

- special

40шт.

2

158918A1

SPECIAL NUT

- special, complete

1шт.

3

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

6шт.

4

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

3шт.

5

164711A1

FRAME

- revolving, complete

1шт.

6

159752A1

ANGLE BAR

GUARD - formed angle iron, 2546 mm (100 inch) long, frame repair

1шт.

Repair guard used on turntable sides. Guard is long enough to repair any side of the turntable. Cut and use the required length for the damaged side.

1шт.
