(9-014) - TURNTABLE ACCESS COVERS, PRIOR TO P.I.N. DAC03#2001

Запчасти Case 9030B (9-014) - TURNTABLE ACCESS COVERS, PRIOR TO P.I.N. DAC03#2001 (09) - CHASSIS

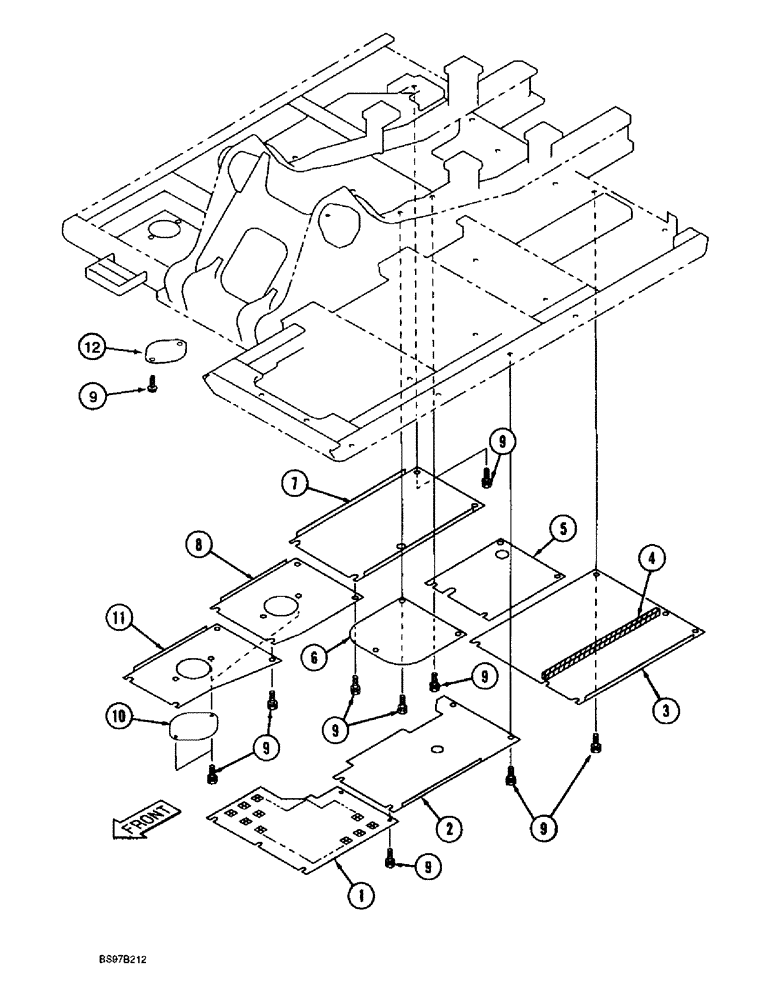

Схема запчастей Case 9030B - (9-014) - TURNTABLE ACCESS COVERS, PRIOR TO P.I.N. DAC03#2001 (09) - CHASSIS
10
9
4
12
1
9
7
9
9
2
3
6
9
9
8
5
9
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159769A1

COVER

GUARD - turntable

1шт.

2

159770A1

COVER

GUARD - turntable

1шт.

3

159771A1

COVER

GUARD - turntable

1шт.

4

159768A1

RUBBER BLOCK

SEAL - turntable guard

1шт.

5

160763A1

COVER

GUARD - turntable

1шт.

6

158946A1

COVER

GUARD - turntable

1шт.

7

159773A1

COVER

GUARD - turntable

1шт.

8

159774A1

COVER

GUARD - turntable

1шт.

9

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

BOLT - special

34шт.

10

158950A1

COVER

- access

2шт.

11

159775A1

COVER

GUARD - turntable

1шт.

12

164297A1

COVER

- access

1шт.
