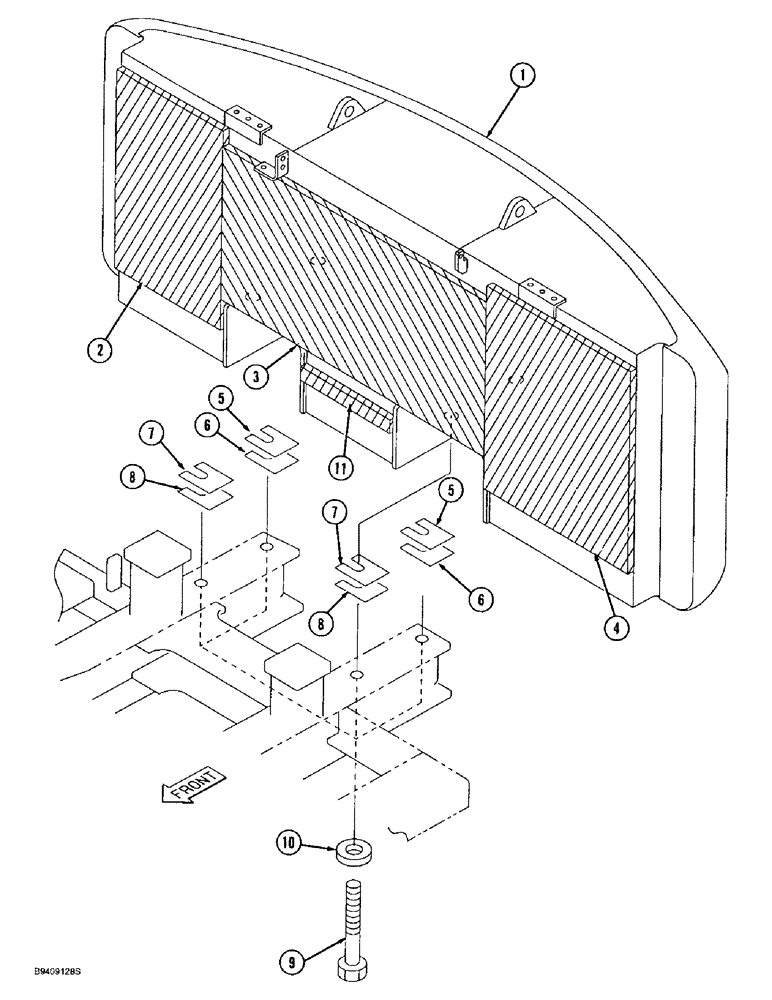

Запчасти Case 9030B (9-018) - COUNTERWEIGHT (09) - CHASSIS

1

165341A1

WEIGHT PACKAGE

COUNTERWEIGHT - 4742 kgs (10454 lbs), Standard and Special Application models, replaces 159756A1

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

1

166028A1

WEIGHT PACKAGE

COUNTERWEIGHT - 4300 kgs (9480 lbs), Narrow Track models

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

1

164211A1

WEIGHT PACKAGE

COUNTERWEIGHT - 4600 kgs (10141 lbs), Timber King models

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

1

164370A1

WEIGHT PACKAGE

COUNTERWEIGHT - 5000 kgs (11023 lbs), Long Reach (21 ft. arm) models

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

2

158939A1

NOISE PROTECTION

INSULATION - acoustic, right-hand

1шт.

3

158938A1

NOISE PROTECTION

INSULATION - acoustic, upper center

1шт.

4

158940A1

NOISE PROTECTION

INSULATION - acoustic, left-hand

1шт.

5

158933A1

SHIM

- plate, 0.8 mm (0.03 inch) thick

2шт.

6

158934A1

SHIM

- plate, 1.2 mm (0.05 inch) thick

2шт.

7

158935A1

ADJUSTING PLATE

SHIM - plate, 2.3 mm (0.09 inch) thick

2шт.

8

158936A1

ADJUSTING PLATE

SHIM - plate, 4.5 mm (0.18 inch) thick

2шт.

9

159758A1

BOLT,Spcl, Hex, M27 x 290mm

BOLT - special, Standard and Special Application models only

4шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

9

159427A1

BOLT,Spcl, Hex, M30 x 290mm

BOLT - special, Narrow Track, Long Reach (21 ft. arm) and Timber King models

4шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

10

159759A1

WASHER

- high strength, special, Standard and Special Application models only

4шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

10

163858A1

WASHER

- high strength, Narrow Track, Long Reach (21 ft. arm) and Timber King models

4шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

11

158941A1

NOISE PROTECTION

INSULATION - acoustic, lower center

1шт.
