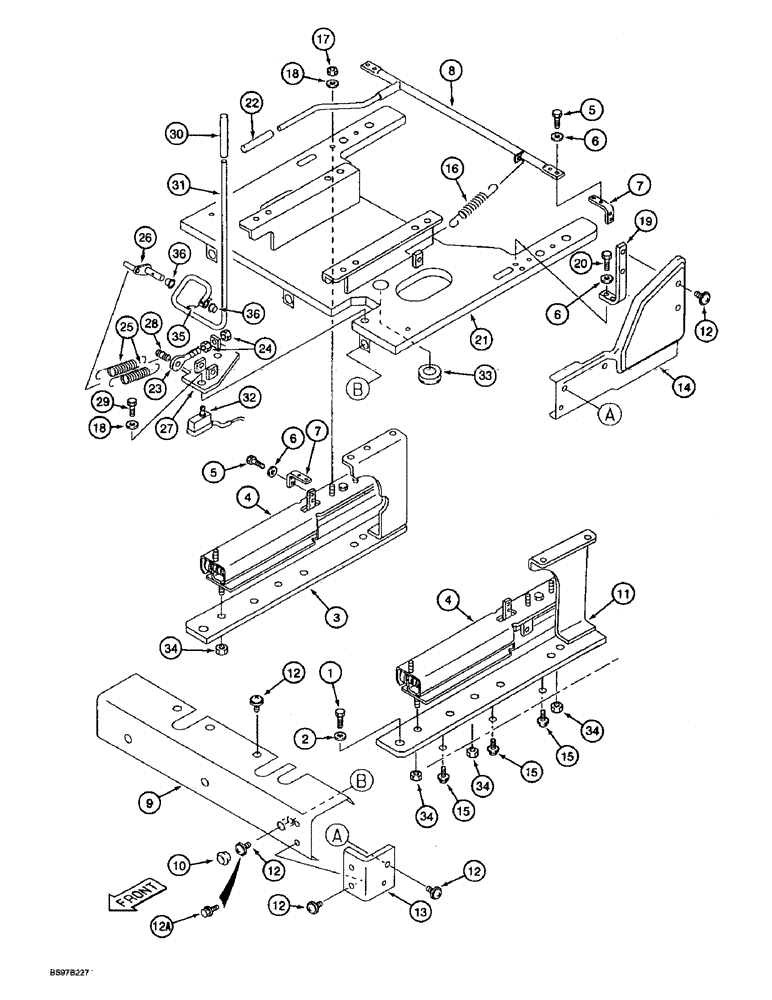

Запчасти Case 9030B (9-048) - SEAT SLIDE RAILS AND PLATFORM, USED WITH SEAT WITHOUT CASE LOGO ON BACK CUSHION (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
- hex, full threads, 12-1.75 x 30 mm, class 10.9
2шт.
4
159513A1
RAIL ASSY.
RAIL - slide, seat, component parts not serviced separately
2шт.
12a
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
BOLT - hex, special, if used
3шт.
15
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
- special, rail mounting
6шт.
20
627-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd
- hex, full threads, 8 - 1.25 x 16 mm, class 10.9
2шт.
23
159346A1
BALL JOINT
EYE - threaded, spring anchor, gate lock control lever
1шт.
29
627-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 20 mm, class 10.9
2шт.
There is another limit switch used for the console. This limit switch is part # 159538A1. It has two wire leads (one is white and one is black) that are each 100 mm long. This switch is wired normally open. The Sumitomo part # is probably stamped somewhere on the switch body. The Sumitomo part # is KHN1432.
1шт.
159541A1 gate lock control limit switch has two wire leads (both are green) that are each 150 mm long. This switch is wired normally closed. The Sumitomo part # is probably stamped somewhere on the switch body. The Sumitomo part # is KHN1439.
1шт.
5
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
- hex, full threads, 8-1.25 x 25 mm, class 10.9
8шт.
