(9-083A) - AIR CONDITIONER COMPRESSOR MOUNTING, P.I.N. DAC03#2001 AND AFTER

Запчасти Case 9030B (9-083A) - AIR CONDITIONER COMPRESSOR MOUNTING, P.I.N. DAC03#2001 AND AFTER (09) - CHASSIS

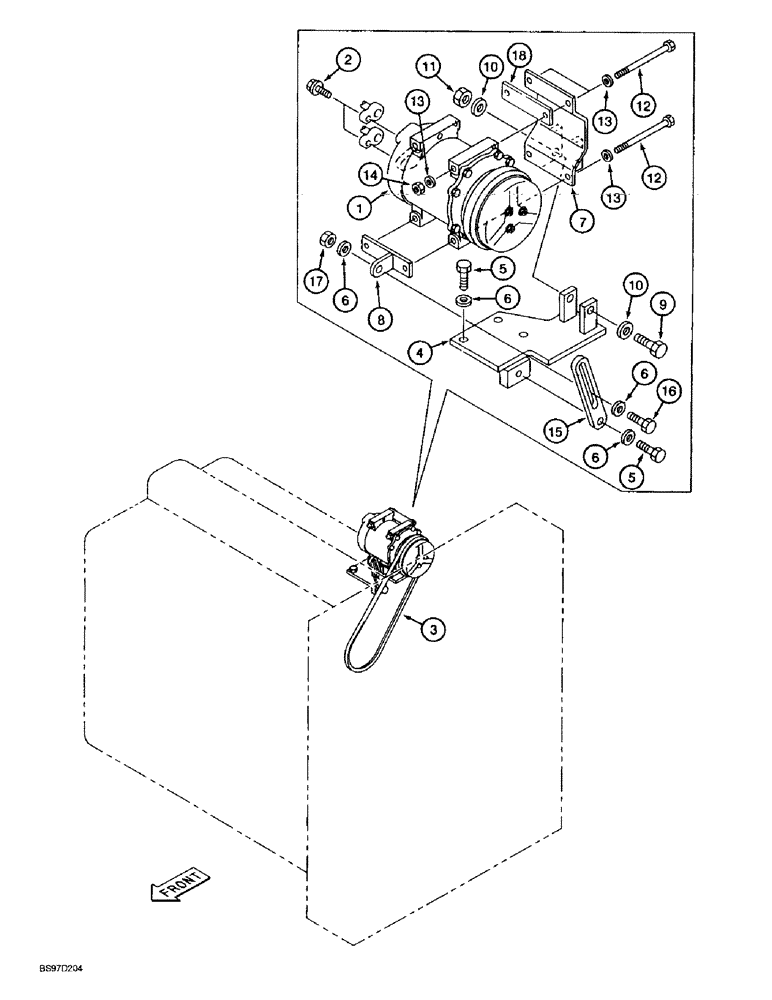

Схема запчастей Case 9030B - (9-083A) - AIR CONDITIONER COMPRESSOR MOUNTING, P.I.N. DAC03#2001 AND AFTER (09) - CHASSIS
6
16
7
2
8
6
3
1
18
5
5
4
10
12
15
14
10
12
13
17
13
9
6
13
11
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

165823A1

COMPRESSOR

- air conditioner

1шт.

2

162457A1

SPECIAL BOLT,Spcl

BOLT - special

2шт.

3

165843A1

V-BELT

1шт.

4

165822A1

BRACKET

- mounting

1шт.

6

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

6шт.

7

165820A1

BRACKET

- mounting

1шт.

8

165640A1

BRACKET

- mounting

1шт.

9

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

- hex, 12-1.75 x 90 mm, class 10.9

1шт.

10

150811A1

WASHER

- flat, special, 12 mm

2шт.

11

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm-1.75, class 10

1шт.

12

165807A1

BOLT

BOLT - high strength, special

4шт.

13

153081A1

WASHER

- flat, special

10шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

15

165821A1

ADJUSTER

BRACE - compressor adjusting

1шт.

16

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

1шт.

18

165806A1

BRACKET

- mounting

2шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
