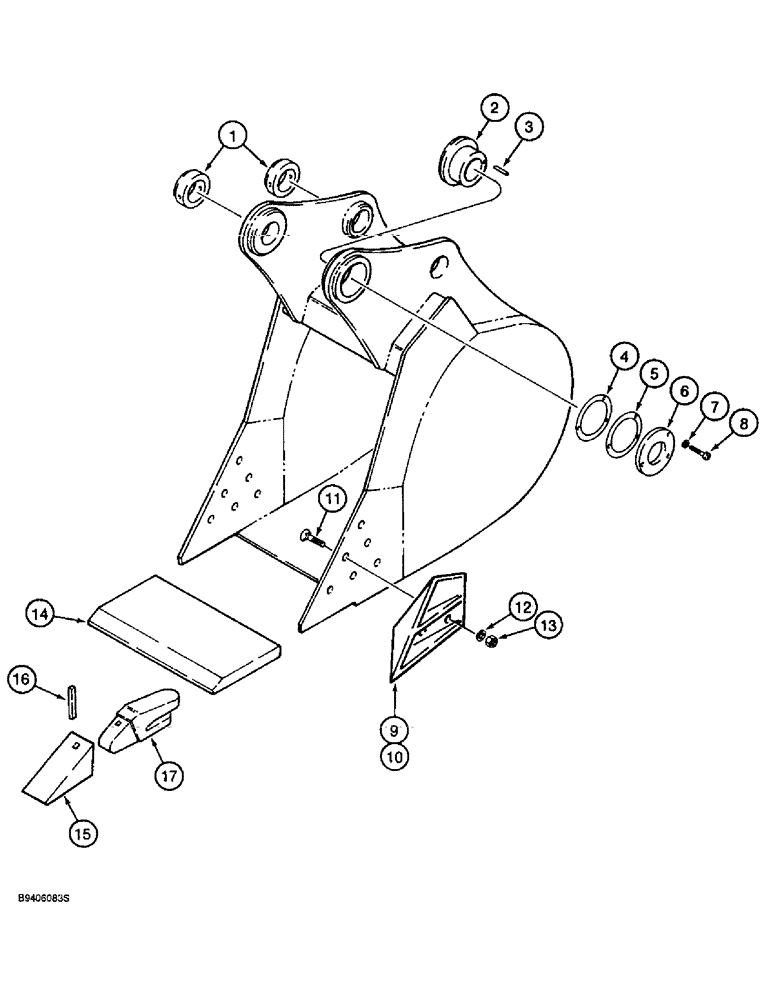

Запчасти Case 9030B (9-106) - CENTRAL FABRICATORS BUCKETS, GENERAL PURPOSE AND HEAVY DUTY, STD OR HIGH CAPACITY, STD MODELS ONLY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.59 cu. yd., Includes: Ref. 1 - 14, assembly, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.77 cu. yd., Includes: Ref. 1 - 14, assembly, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.95 cu. yd., Includes: Ref. 1 - 14, assembly, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.12 cu. yd., Includes: Ref. 1 - 14, assembly, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 1.30 cu. yd., Includes: Ref. 1 - 14, assembly, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.73 cu. yd., Includes: Ref. 1 - 14, assembly, general purpose, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.95 cu. yd., Includes: Ref. 1 - 14, assembly, general purpose, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 1.16 cu. yd., Includes: Ref. 1 - 14, assembly, general purpose, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.38 cu. yd., Includes: Ref. 1 - 14, assembly, general purpose, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.59 cu. yd., Includes: Ref. 1 - 14, assembly, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.77 cu. yd., Includes: Ref. 1 - 14, assembly, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.95 cu. yd., Includes: Ref. 1 - 14, assembly, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.12 cu. yd., Includes: Ref. 1 - 14, assembly, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 1.30 cu. yd., Includes: Ref. 1 - 14, assembly, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.73 cu. yd., Includes: Ref. 1 - 14, assembly, heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.95 cu. yd., Includes: Ref. 1 - 14, assembly, heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 1.16 cu. yd., Includes: Ref. 1 - 14, assembly, heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.38 cu. yd., Includes: Ref. 1 - 14, assembly, heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122705A1

LATCH

BUSHING - bucket, with locking collar

2шт.

2

122708A1

BUSHING

- bucket, adjustable, Includes: Ref. 3

1шт.

3

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, hardened

1шт.

4

122702A1

SHIM

- plate mounting, 0.039 inch thick

1шт.

5

122703A1

SHIM

- plate mounting, 0.02 inch thick

1шт.

6

122704A1

RETAINER

PLATE - bushing

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

BOLT - hex socket, 5/8 NC x 2 inch

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting, 6 inch, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3 inch, grade 8

6шт.

12

392-21088

LOCK WASHER,7/8"

7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

6шт.

14

124983A1

EDGE, CUTTING

EDGE - cutting, center, 610 mm (24 inch) bucket, standard capacity

1шт.

14

125001A1

EDGE, CUTTING

EDGE - cutting, center, 762 mm (30 inch) bucket, standard capacity

1шт.

14

125002A1

EDGE, CUTTING

EDGE - cutting, center, 914 mm (36 inch) bucket, standard capacity

1шт.

14

125003A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket, standard capacity

1шт.

14

125004A1

EDGE, CUTTING

EDGE - cutting, center, 1219 mm (48 inch) bucket, standard capacity

1шт.

14

125005A1

EDGE, CUTTING

EDGE - cutting, center, 610 mm (24 inch) bucket, high capacity

1шт.

14

125006A1

EDGE, CUTTING

EDGE - cutting, center, 762 mm (30 inch) bucket, high capacity

1шт.

14

125007A1

EDGE, CUTTING

EDGE - cutting, center, 914 mm (36 inch) bucket, high capacity

1шт.

14

125008A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket, high capacity

1шт.

15

122668A1

TOOTH

- standard

1шт.

See Figures 9-130 and 9-132 for point, pin and shank options.

1шт.

16

122669A1

FASTENER

PIN - flex, Serial Range: tooth-shank

1шт.

See Figures 9-130 and 9-132 for point, pin and shank options.

1шт.

17

122670A1

ADAPTER

SHANK - tooth, 1-1/2 inch

1шт.

See Figures 9-130 and 9-132 for point, pin and shank options.

1шт.
