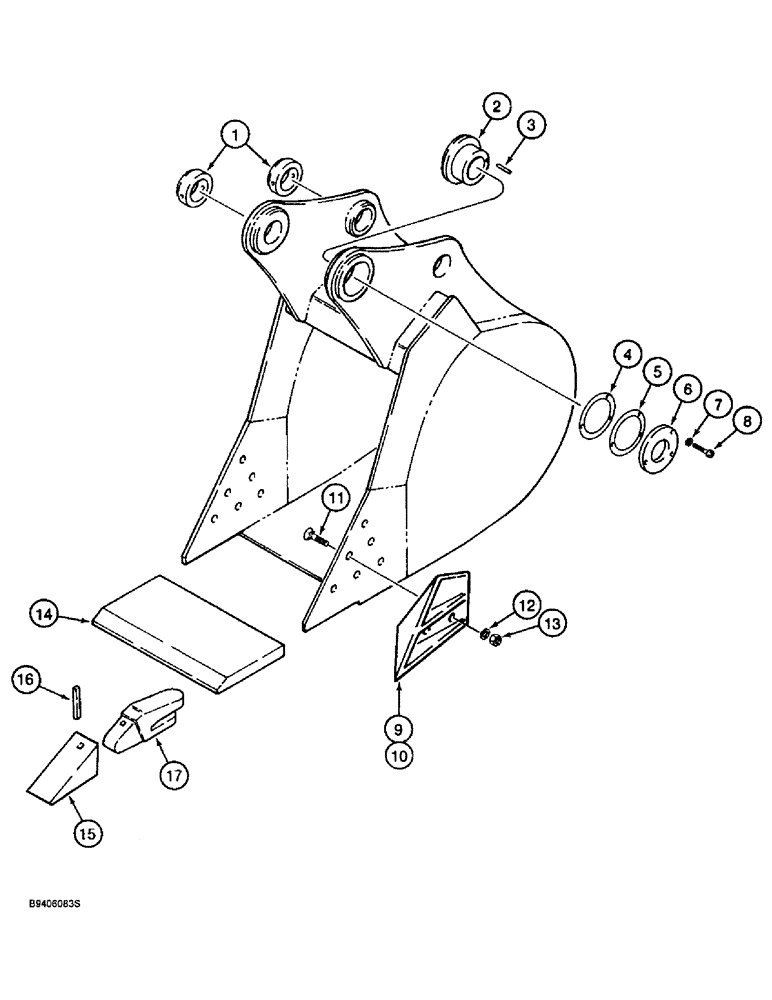

Запчасти Case 9030B (9-112) - CENTRAL FABRICATORS BUCKETS, SEVERE DUTY (09) - CHASSIS

REF

INSTRUCTION

BUCKET ASSEMBLY - 610 mm (24 inch), with 3 teeth, 0.59 cu. yd., Includes: Ref. 1 - 14, severe duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 762 mm (30 inch), with 4 teeth, 0.77 cu. yd., Includes: Ref. 1 - 14, severe duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 914 mm (36 inch), with 4 teeth, 0.95 cu. yd., Includes: Ref. 1 - 14, severe duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122705A1

LATCH

BUSHING - bucket, with locking collar, bucket assembly, severe duty

2шт.

2

122708A1

BUSHING

- bucket, adjustable, Includes: Ref. 3, bucket assembly, severe duty

1шт.

3

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, hardened, bucket assembly, severe duty

1шт.

4

122702A1

SHIM

- plate mounting, 0.039 inch thick, bucket assembly, severe duty

1шт.

5

122703A1

SHIM

- plate mounting, 0.02 inch thick, bucket assembly, severe duty

1шт.

6

122704A1

RETAINER

PLATE - bushing, bucket assembly, severe duty

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Bucket assembly, Severe duty 5/8"

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

BOLT - hex socket, 5/8 NC x 2 inch, bucket assembly, severe duty

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting, 6 inch, Includes: Ref. 9 - 13, bucket assembly, severe duty

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side, bucket assembly, severe duty

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side, bucket assembly, severe duty

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3 inch, grade 8, bucket assembly, severe duty

6шт.

12

392-21088

LOCK WASHER,7/8"

bucket assembly, severe duty 7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

Bucket assembly, severe duty 7/8"-9, G8

6шт.

14

125020A1

EDGE, CUTTING

EDGE - cutting, center, 610 mm (24 inch) bucket, severe duty

1шт.

14

125021A1

EDGE, CUTTING

EDGE - cutting, center, 762 mm (30 inch) bucket, severe duty

1шт.

14

125022A1

EDGE, CUTTING

EDGE - cutting, center, 914 mm (36 inch) bucket, severe duty

1шт.

15

122671A1

TOOTH

- standard point, cutting edges, severe duty

1шт.

See Figures 9-130 and 9-132 for point, pin and shank options.

1шт.

16

122672A1

FASTENER

PIN - flex, tooth to shank, cutting edges, severe duty

1шт.

See Figures 9-130 and 9-132 for point, pin and shank options.

1шт.

17

122673A1

BUCKET TOOTH SHANK

- tooth, 2 inch, cutting edges, severe duty

1шт.

See Figures 9-130 and 9-132 for point, pin and shank options.

1шт.
