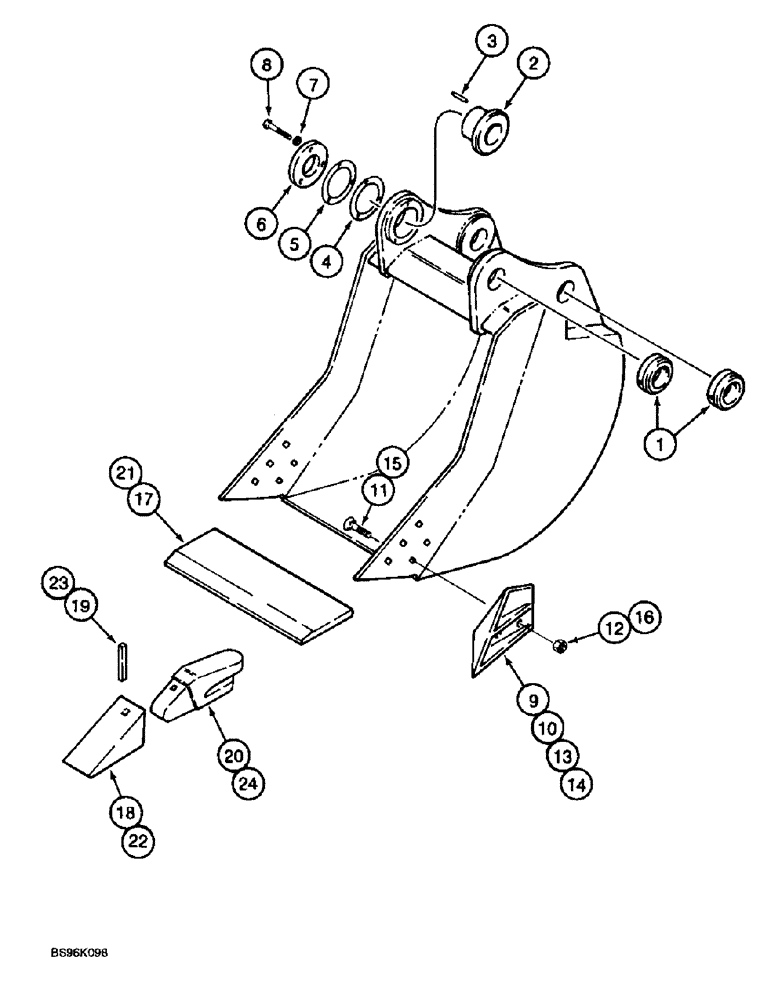

Запчасти Case 9030B (9-118) - H & H BUCKETS, GENERAL PURPOSE AND HEAVY DUTY, STANDARD OR HIGH CAPACITY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.59 cu. yd., assembly, general purpose, standard, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.76 cu. yd., assembly, general purpose, standard, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.94 cu. yd., assembly, general purpose, standard, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.14 cu. yd., assembly, general purpose, standard, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 1.40 cu. yd., assembly, general purpose, standard, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.67 cu. yd., assembly, general purpose, high capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.90 cu. yd., assembly, general purpose, high capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 1.14 cu. yd., assembly, general purpose, high capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.38 cu. yd., assembly, general purpose, high capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.59 cu. yd., assembly, heavy duty, standard, Includes: Ref. 1 - 16 and 21

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.76 cu. yd., assembly, heavy duty, standard, Includes: Ref. 1 - 16 and 21

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.94 cu. yd., assembly, heavy duty, standard, Includes: Ref. 1 - 16 and 21

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.14 cu. yd., assembly, heavy duty, standard, Includes: Ref. 1 - 16 and 21

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 1.40 cu. yd., assembly, heavy duty, standard, Includes: Ref. 1 - 16 and 21

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.67 cu. yd., assembly, heavy duty, high capacity, Includes: Ref. 1 - 16 and 21

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.90 cu. yd., assembly, heavy duty, high capacity, Includes: Ref. 1 - 16 and 21

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 1.14 cu. yd., assembly, heavy duty, high capacity, Includes: Ref. 1 - 16 and 21

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.25 cu. yd., assembly, heavy duty, high capacity, Includes: Ref. 1 - 16 and 21

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.38 cu. yd., assembly, heavy duty, high capacity, Includes: Ref. 1 - 16 and 21

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

125665A1

LATCH

BUSHING - bucket, with locking collar

2шт.

2

125659A1

BUSHING

- bucket, adjustable, Includes: Ref. 3

1шт.

3

125664A1

DOWEL

PIN - dowel, special

2шт.

4

125660A1

SHIM

- plate mounting, 0.02 inch thick

1шт.

5

125661A1

SHIM

- plate mounting, 0.039 inch thick

1шт.

6

125663A1

RETAINER

PLATE - bushing

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

8

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

112985A1

EDGE, CUTTING

KIT - side cutter blade, 3 inch, Includes: Ref. 9 - 12

1шт.

9

125922A1

CUTTER

BLADE - sidecutter, left-hand, 3 inch

1шт.

10

125924A1

CUTTER

BLADE - sidecutter, right-hand, 3 inch

1шт.

11

320-21440

CARRIAGE BOLT,#3, 7/8" - 9 x 2 1/2", Gr 8

BOLT - plow, #3 head, 7/8 NC x 2-1/2 inch, grade 8

10шт.

12

232-41314

LOCK NUT,7/8"-9, GC

NUT, LOCK, 7/8"-9, GC

10шт.

112732A1

KIT

- side cutter blade, 4 inch, Includes: Ref. 13 - 16

1шт.

13

125926A1

CUTTER

BLADE - sidecutter, left-hand, 4 inch

1шт.

14

125928A1

CUTTER

BLADE - sidecutter, right-hand, 4 inch

1шт.

15

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3 inch, grade 8

10шт.

16

232-41314

LOCK NUT,7/8"-9, GC

NUT, LOCK, 7/8"-9, GC

10шт.

17

125715A1

EDGE

- cutting, center, 610 mm (24 inch) bucket, general purpose

1шт.

17

125716A1

EDGE

- cutting, center, 762 mm (30 inch) bucket, general purpose

1шт.

17

125717A1

EDGE

- cutting, center, 914 mm (36 inch) bucket, general purpose

1шт.

17

125780A1

EDGE

- cutting, center, 1067 mm (42 inch) bucket, general purpose

1шт.

17

125718A1

EDGE

- cutting, center, 1219 mm (48 inch) bucket, general purpose

1шт.

18

122668A1

TOOTH

- standard, cutting edges, general purpose

1шт.

See Figures 9-130 and 9-132 for point, pin and shank options.

1шт.

19

122669A1

FASTENER

PIN - flex, tooth to shank, cutting edges, general purpose

1шт.

See Figures 9-130 and 9-132 for point, pin and shank options.

1шт.

20

122670A1

ADAPTER

SHANK - tooth, 1-1/2 inch, cutting edges, general purpose

1шт.

See Figures 9-130 and 9-132 for point, pin and shank options.

1шт.

21

125715A1

EDGE

- cutting, center, 610 mm (24 inch) bucket, heavy duty

1шт.

21

125716A1

EDGE

- cutting, center, 762 mm (30 inch) bucket, heavy duty

1шт.

21

125717A1

EDGE

- cutting, center, 914 mm (36 inch) bucket, heavy duty

1шт.

21

125780A1

EDGE

- cutting, center, 1067 mm (42 inch) bucket, heavy duty

1шт.

21

125718A1

EDGE

- cutting, center, 1219 mm (48 inch) bucket, heavy duty

1шт.

22

122674A1

TOOTH

- standard point, cutting edges, heavy duty

1шт.

See Figures 9-130 and 9-132 for point, pin and shank options.

1шт.

23

122675A1

FASTENER

PIN - flex, point to shank, cutting edges, heavy duty

1шт.

See Figures 9-130 and 9-132 for point, pin and shank options.

1шт.

24

122676A1

BUCKET TOOTH SHANK

SHANK - tooth, 1-1/2 inch, cutting edges, heavy duty

1шт.

See Figures 9-130 and 9-132 for point, pin and shank options.

1шт.
