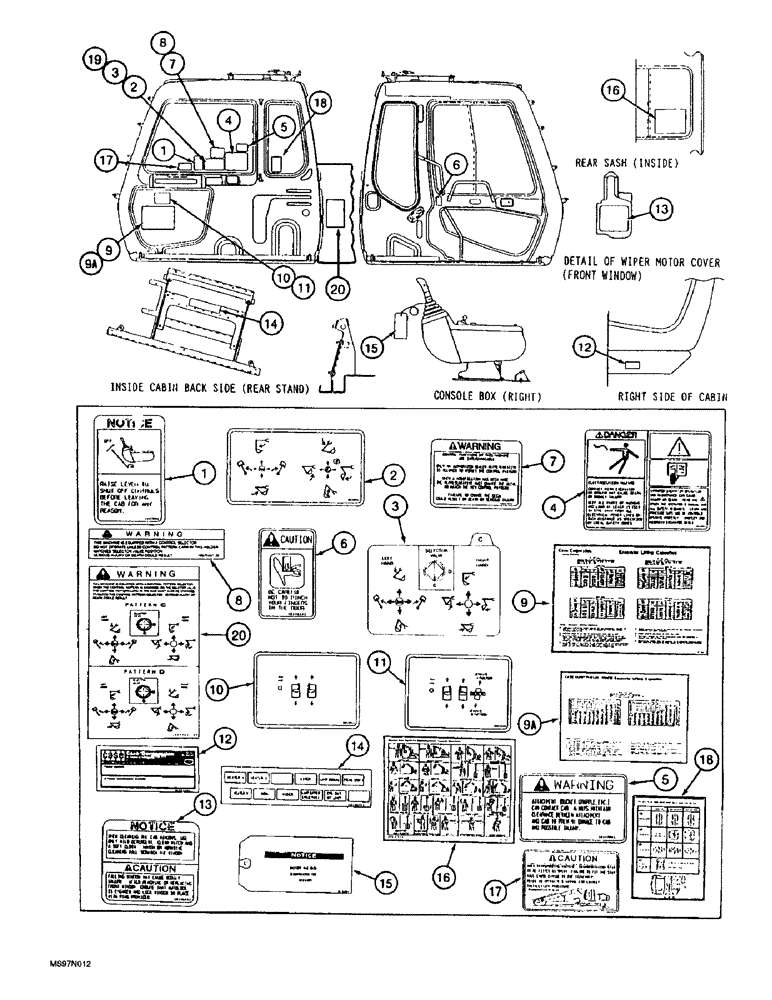

Запчасти Case 9030B (9-140) - DECALS, ENGLISH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS

1

161732A1

DECAL

- Notice, raise lever to shut off controls

1шт.

2

161459A1

DECAL

- control pattern, standard models without selector valve

1шт.

3

165775A1

DECAL

- control pattern, if used, for models with optional selector valve, pattern "C" side shown

1шт.

4

161469A1

DECAL

- Danger, electrocution hazard

1шт.

5

161470A1

DECAL

- Warning, attachment can contact cab

1шт.

6

161461A1

DECAL

- Caution, be careful not to pinch your fingers

1шт.

7

162140A1

WARNING DECAL

DECAL - Warning, control functions on this machine are interchangeable

1шт.

8

165774A1

DECAL

- Warning, this machine is equipped with a control pattern selector, if used

1шт.

9

161742A1

ADHESIVE

DECAL - excavator lifting capacities, for all models except long reach (21 ft. arm) models

1шт.

9a

163099A1

DECAL

- excavator lifting capacities, for long reach (21 ft. arm) models

1шт.

10

162185A1

DECAL

- foot pedal controls

1шт.

11

162186A1

DECAL

- foot pedal controls for machines with auxiliary hydraulic equipment

1шт.

12

157995A1

DECAL

PLATE - Product Identification Number, no longer available

1шт.

13

161460A1

DECAL

- Notice, when cleaning the windows/Caution, falling window may cause

1шт.

14

161464A1

DECAL

- right-hand control console

1шт.

15

151937A1

ADHESIVE STRIP

TAG - maintenance

1шт.

16

162163A1

DECAL

- hand signal chart

1шт.

17

162988A1

ADHESIVE

DECAL - Caution, when transporting machine, for long reach (21 ft. arm) models

1шт.

18

164738A1

DECAL

- auxiliary hydraulics

1шт.

19

165777A1

HOLDER

POCKET - adhesive backed, decal holding, for Ref. 3, 165775A1 decal

1шт.

20

165776A1

DECAL

- Warning, this machine is equipped with a control pattern selector, with "C" and "D" shifting patterns, if used

1шт.

All "B" series Excavators offer a John Deere conversion parts kit p/n: 165849a1 (except 9007B uses p/n: 167145A1). The decal for control pattern is p/n: 190282A1, includes the decal and instruction sheet. tww 03-30-99 CAM

1шт.
