(2-84) - GASKET KIT, 6T-590 ENGINE, PRIOR TO P.I.N. DAC03#2001, CYLINDER BLOCK

Запчасти Case 9030B (2-84) - GASKET KIT, 6T-590 ENGINE, PRIOR TO P.I.N. DAC03#2001, CYLINDER BLOCK (02) - ENGINE

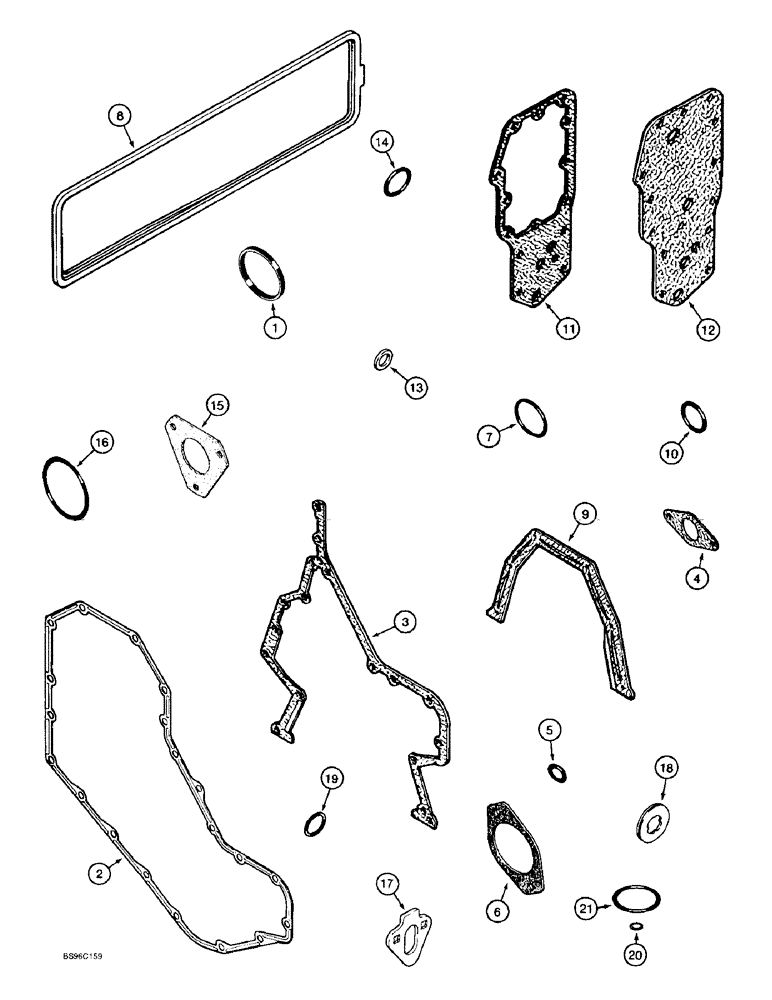

Схема запчастей Case 9030B - (2-84) - GASKET KIT, 6T-590 ENGINE, PRIOR TO P.I.N. DAC03#2001, CYLINDER BLOCK (02) - ENGINE
4
20
5
17
11
21
6
2
13
1
16
15
3
12
10
18
8
19
14
9
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A77861

GASKET KIT

KIT - gasket, cylinder block, replaces A77674 kit, Includes: Ref. 1 - 21

1шт.

For complete engine overhaul, order (1) each of valve grind kit, Figure 2-80, cylinder block kit, oil pan kit, Figure 2-40 , front and rear crankshaft seal kit, Figure 2-68 and required cylinder head gasket, Figure 2-44.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

2

J914385

GASKET,1.02mm Thk

- front cover

1шт.

3

J931351

GASKET

- gear housing, replaces J916131 gasket

1шт.

4

J905595

GASKET

- timing pin housing

1шт.

5

J913994

O-RING

- sealing

1шт.

6

J929751

GASKET

- access cover plate, replaces J919601 gasket

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

8

J928832

GASKET

- tappet cover, replaces J907617

1шт.

9

J928493

GASKET

- rear cover retainer, replaces J914386 gasket

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

11

J942914

GASKET

- oil cooler core, replaces J926760 and J929791 gasket

1шт.

12

J929792

GASKET,1.2mm Thk

- filter head, replaces J918257

1шт.

J942915 is not included in Kit A77861. The correct gasket is J929792. Filter head gasket J942915 has a slot cut in it. J929792 only has holes.

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID, engine oil filler

1шт.

15

J931607

GASKET

- pump mounting, replaces J914389 gasket

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

17

J931348

GASKET

- mounting, fuel transfer pump, replaces J914304 and J923054 gasket

1шт.

18

J928759

SEALING WASHER

- cover bolt, push rod, replaces J900267 seal

6шт.

19

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

20

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

21

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.
