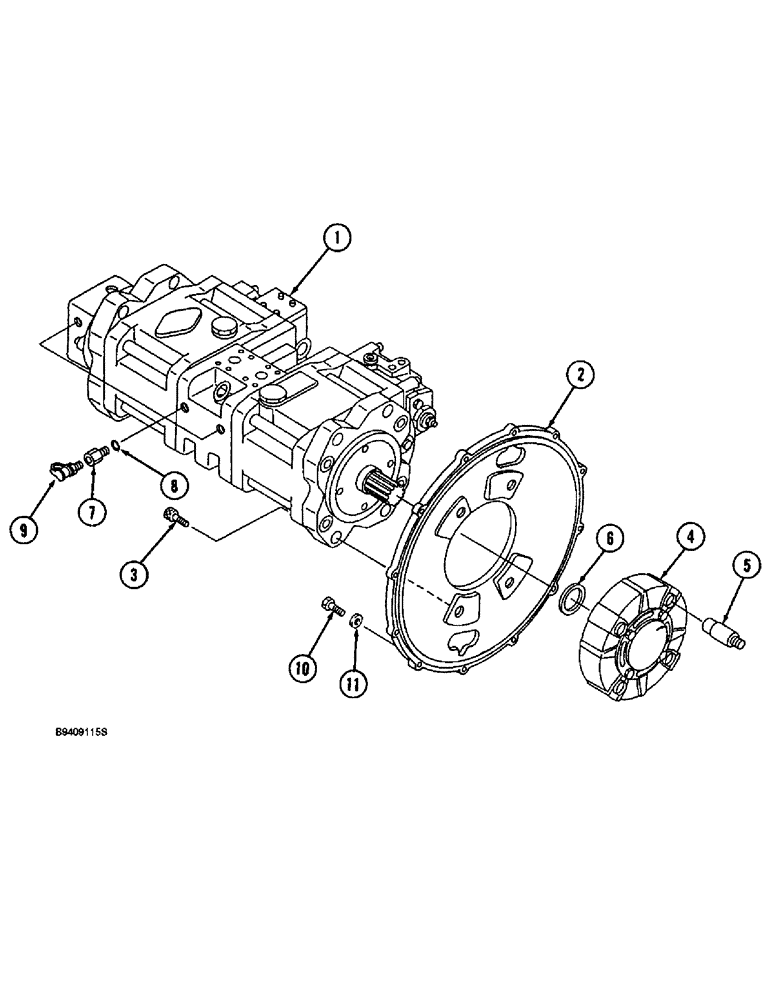

Запчасти Case 9030B (8-004) - HYDRAULIC PUMP AND COUPLING (08) - HYDRAULICS

1

159817A1

PUMP

PUMP ASSEMBLY - hydraulic, used on standard models prior to P.I.N. DAC0301004, see Figures 8-116, 8-124 - 8-128

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

1

162219A1R

REMAN-HYD PUMP

9030B CASE CRAWLER EXCAVATOR, PUMP ASSEMBLY, prior to P.I.N. DAC0301004 (11/04-), Reman For New PN 159817A1

1шт.

1

162219A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

162219A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, used on standard models P.I.N. DAC0301004 and after and on all Special Application, Long Reach or Timber King models, see Figures 8-120, 8-124 and 8-128

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

1

162219A1R

REMAN-HYD PUMP

9030B CASE CRAWLER EXCAVATOR, P.I.N. DAC0301004 and after, PUMP ASSEMBLY - hydraulic (11/94-)

1шт.

1

162219A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

153437A1

FLANGE

FLANGE - mount, Includes: Ref. 3

1шт.

3

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

BOLT - hex socket, 20-2.5 x 55 mm, class 12.9

4шт.

4

159819A1

COUPLING

COUPLING - shaft

1шт.

5

153454A1

DOWEL

PIN - special

4шт.

6

159351A1

SPACER

SPACER - coupling

1шт.

7

151136A1

BUSHING

ADAPTER - straight, special, oil plug, Includes: Ref. 8

3шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

O-RING - adapter

3шт.

9

150290A1

PLUG

PLUG - oil

3шт.

11

150409A1

WASHER

WASHER - flat, special, 10.5 x 21 x 3.2 mm

8шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

BOLT, Hex, M10 x 30, 10.9, Full Thd

8шт.
