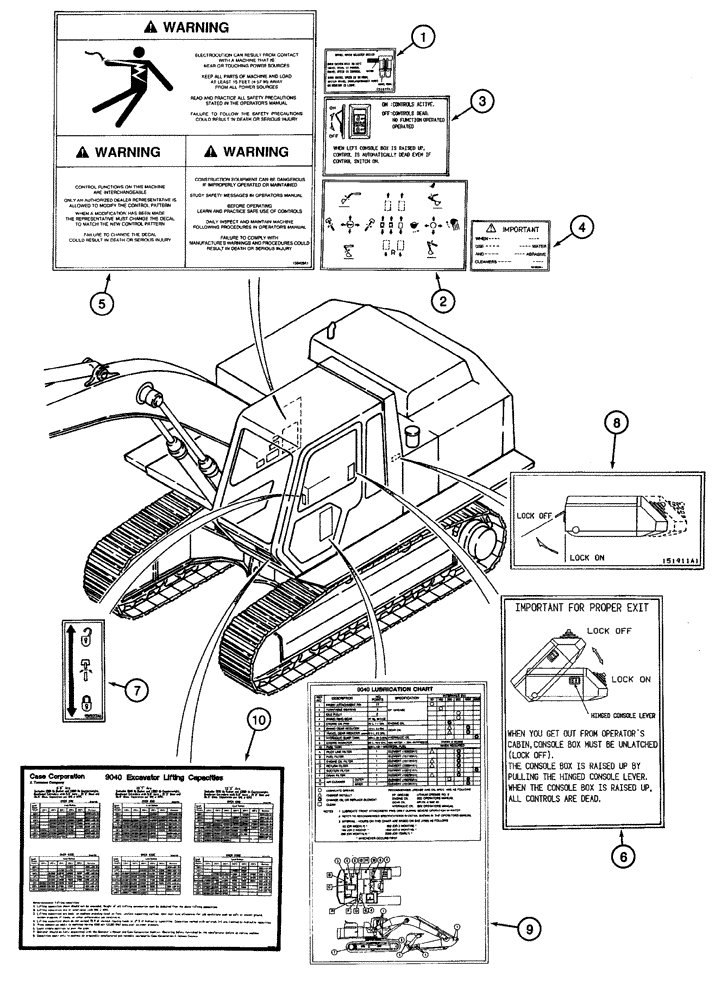

Запчасти Case 9040 (9-84) - DECALS - FRENCH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS

1

158380A1

DECAL

- travel speed selecter switch (French)

1шт.

This part and those noted on Figure 9-80 are included in 158298A1 French language decal kit for models with 10 or 11-1/2 ft arm..

1шт.

This part and those noted on Figure 9-80 are included in 132321A1 French language decal kit for Long Reach models with 26 ft arm.

1шт.

2

151975A1

DECAL

- control pattern

1шт.

3

158276A1

DECAL

- control, on - off (French)

1шт.

This part and those noted on Figure 9-80 are included in 158298A1 French language decal kit for models with 10 or 11-1/2 ft arm..

1шт.

This part and those noted on Figure 9-80 are included in 132321A1 French language decal kit for Long Reach models with 26 ft arm.

1шт.

4

158275A1

DECAL

- Important, when cleaning cab windows (French)

8шт.

This part and those noted on Figure 9-80 are included in 158298A1 French language decal kit for models with 10 or 11-1/2 ft arm..

1шт.

This part and those noted on Figure 9-80 are included in 132321A1 French language decal kit for Long Reach models with 26 ft arm.

1шт.

5

158286A1

DECAL

- Warning, electrocution can result from contact (French)

1шт.

This part and those noted on Figure 9-80 are included in 158298A1 French language decal kit for models with 10 or 11-1/2 ft arm..

1шт.

This part and those noted on Figure 9-80 are included in 132321A1 French language decal kit for Long Reach models with 26 ft arm.

1шт.

6

158279A1

DECAL

- Important for proper exit, lock on/lock off (French)

1шт.

This part and those noted on Figure 9-80 are included in 158298A1 French language decal kit for models with 10 or 11-1/2 ft arm..

1шт.

This part and those noted on Figure 9-80 are included in 132321A1 French language decal kit for Long Reach models with 26 ft arm.

1шт.

7

151927A1

DECAL

- swing lock

1шт.

8

158273A1

DECAL

- slide lever, lock on/lock off (French)

1шт.

This part and those noted on Figure 9-80 are included in 158298A1 French language decal kit for models with 10 or 11-1/2 ft arm..

1шт.

This part and those noted on Figure 9-80 are included in 132321A1 French language decal kit for Long Reach models with 26 ft arm.

1шт.

9

158267A1

DECAL

- lubrication

1шт.

This part and those noted on Figure 9-80 are included in 158298A1 French language decal kit for models with 10 or 11-1/2 ft arm..

1шт.

This part and those noted on Figure 9-80 are included in 132321A1 French language decal kit for Long Reach models with 26 ft arm.

1шт.

10

158261A1

DECAL

- lifting capacity chart (French), for models with 10 or 11-1/2 ft arm

1шт.

This part and those noted on Figure 9-80 are included in 158298A1 French language decal kit for models with 10 or 11-1/2 ft arm..

1шт.

10

131426A1

DECAL

- lifting capacities, Long Reach only (French), for models with 26 ft arm, not as shown

1шт.

This part and those noted on Figure 9-80 are included in 158298A1 French language decal kit for models with 10 or 11-1/2 ft arm..

1шт.
