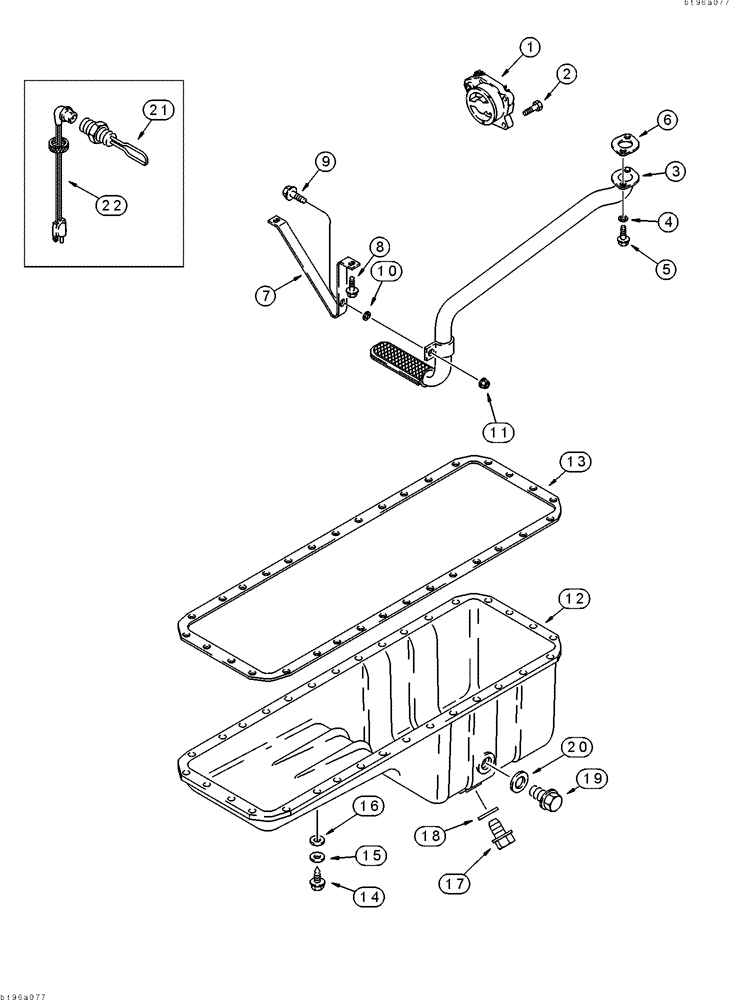

Запчасти Case 9040 (2-24) - OIL PUMP AND OIL PAN, 6T-830 ENGINE (02) - ENGINE

JR926201

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - oil, remanufactured, North America only, 24 teeth drive gear, replaces JR921067 and JR924644 remanufactured pump

1шт.

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, replaces JC924644 return number

1шт.

1

J930338

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, 24 teeth drive gear, new, replaces J924644 and J926201 pump

1шт.

1

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - HH, CL 8.8, M8 x 1.25 x 30, Full Thd, Pump to block

4шт.

3

J910788

TUBE ASSY.

TUBE - with screen, oil suction

1шт.

4

J908738

SPACER

SPACER - mounting, oil suction tube to cylinder block

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 30 mm, Nounting, Tube to block

2шт.

6

J914302

GASKET

GASKET - mounting, oil suction tube

1шт.

Part of Gasket Oil Pan Kit P/N A77679

1шт.

7

J927611

BRACKET

BRACE - suction tube, replaces J913427 brace

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, , Brace to block Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

9

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 20 mm, brace to tube

1шт.

10

J910960

WASHER

WASHER - flat, special, retaining

1шт.

11

J906216

FLANGE NUT

NUT - hex flange, special, 6 mm - 1.0

1шт.

12

J914013

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77679 kit shown below

1шт.

Part of Gasket Oil Pan Kit P/N A77679

1шт.

14

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, 8 - 1.25 x 25 mm, Replaces J907860 screw

32шт.

15

J910266

LOCK WASHER

WASHER - spring, Belleville

32шт.

16

J908316

WASHER

WASHER - flat, special, 9 x 16 x 1 mm

32шт.

17

J924147

PLUG,M18 x 1.5

PLUG - hex magnetic, special, 12 mm - 1.5, oil drain, replaces J911638 plug

1шт.

18

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

Part of Gasket Oil Pan Kit P/N A77679

1шт.

19

J924148

PLUG,M22 x 1.5

PLUG - hex magnetic, special, 22 mm - 1.5, heater hole, replaces J904386 plug

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

Part of Gasket Oil Pan Kit P/N A77679

1шт.

A77679

GASKET KIT

KIT gasket, oil pan, Includes: Ref. 6, 13, 18 and 20

1шт.

A77580

SERVICE KIT

KIT - oil pan heater, Includes: Ref. 21 and 22

1шт.

When engine oil heater kit is ordered, Ref. 20, J902425 washer must be ordered also.

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt, oil pan kit

1шт.

22

196466A1

ELECTRIC CABLE

CABLE - engine block heater, replaces J905113 cable, oil pan kit

1шт.
