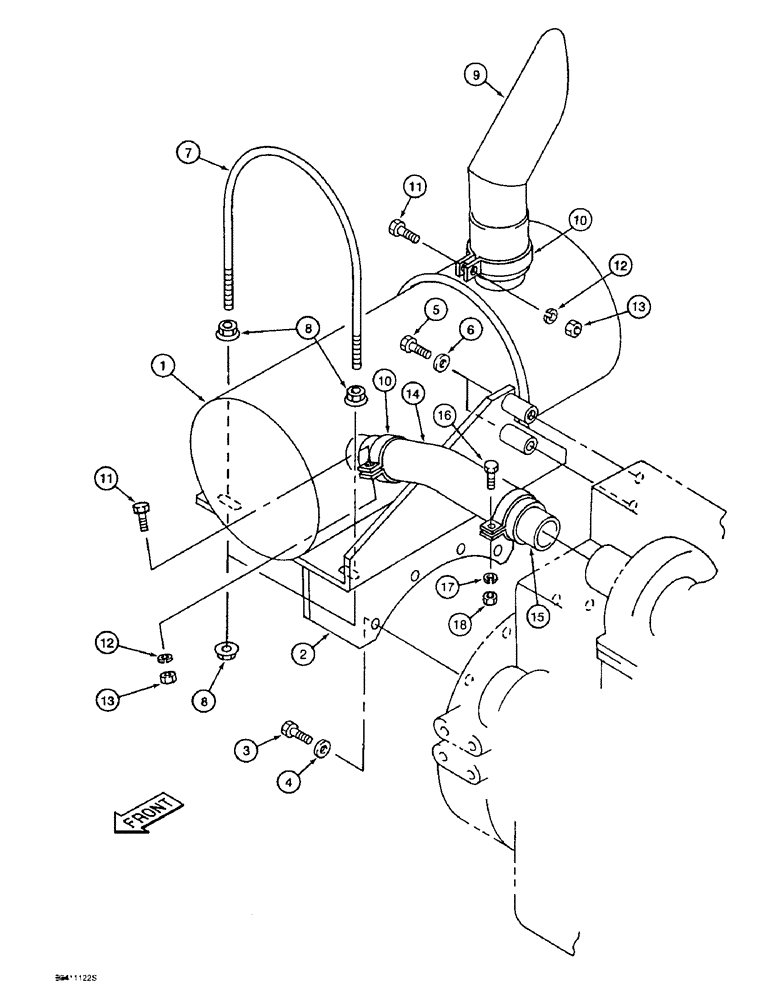

Запчасти Case 9040B (2-12) - MUFFLER AND EXHAUST SYSTEM, PRIOR TO P.I.N. DAC04#2001 (02) - ENGINE

1

151618A1

MUFFLER

- exhaust

1шт.

2

151452A1

SUPPORT

BRACKET - muffler mounting

1шт.

3

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

4шт.

4

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

5

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

2шт.

6

150811A1

WASHER

- flat, special, 12 mm

2шт.

7

150772A1

U-BOLT,M12 x 315mm W x 337.10mm L

- muffler retaining

2шт.

8

150475A1

FLANGE NUT

- flanged, 12 mm - 1.75

8шт.

9

150697A1

EXHAUST SYSTEM PIPE

PIPE - tail

1шт.

10

150670A1

CLAMP

- special

2шт.

11

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

2шт.

12

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

13

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

14

163856A1

PIPE, EXHAUST SYSTEM

PIPE - exhaust, replaces 151456A1, pipe with welded on clamp

1шт.

15

151473A1

CONNECTOR, ELEC

CONNECTOR - exhaust pipe, used with 151456A1, pipe only

1шт.

17

892-11010

LOCK WASHER,M10

Used with 151456A1, Pipe only M10

1шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Used with 151456A1, pipe only Hex, M10 x 30, 10.9, Full Thd

1шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

Used with 151456A1, Pipe only M10, Cl 10

1шт.
