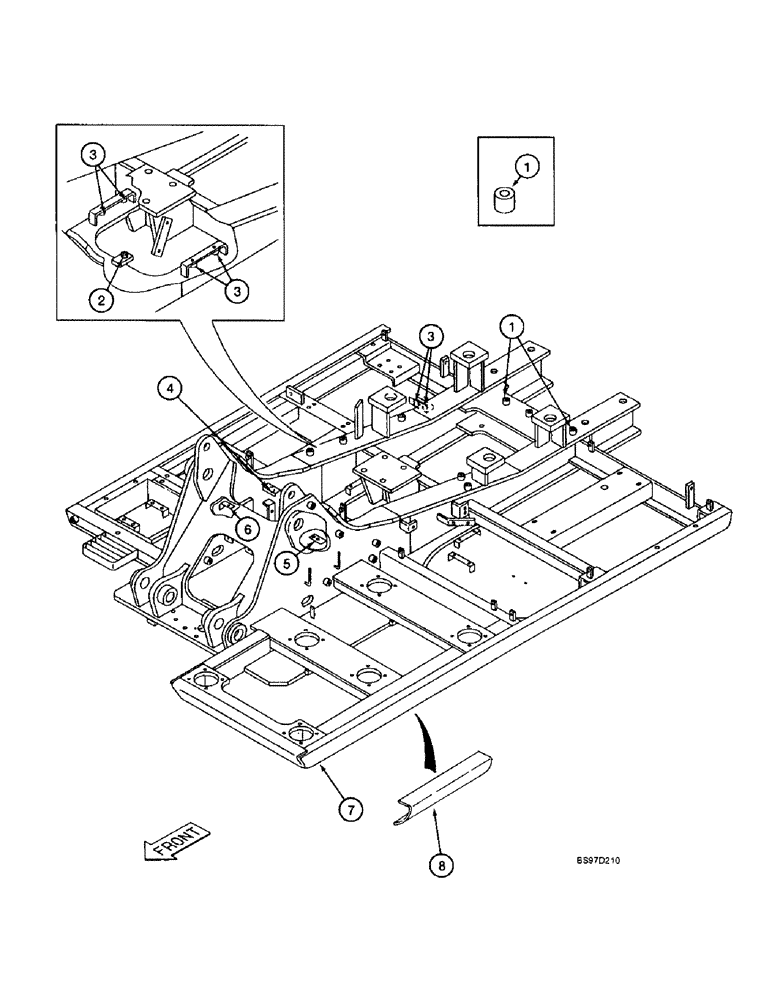

Запчасти Case 9040B (9-010) - TURNTABLE, MACHINES WITH LOAD HOLD, STANDARD AND LONG REACH MODELS P.I.N. DAC04#2001 AND AFTER (09) - CHASSIS

1

158811A1

BOSS

- special

39шт.

2

158918A1

SPECIAL NUT

- special

1шт.

3

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

6шт.

4

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

3шт.

5

162866A1

BAR

- base

1шт.

6

164904A1

BAR

- base

1шт.

7

165597A1

FRAME

- revolving, complete

1шт.

8

159752A1

ANGLE BAR

GUARD - formed angle iron, frame repair

1шт.

Use repair guard on turntable sides. Guard is long enough to repair any side of the turntable. Cut and use the required length for the damaged side.

1шт.
