(9-016) - COUNTERWEIGHT, ALL MODELS EXCEPT LONG REACH (25 FT. 11 INCH ARM) MODELS

Запчасти Case 9040B (9-016) - COUNTERWEIGHT, ALL MODELS EXCEPT LONG REACH (25 FT. 11 INCH ARM) MODELS (09) - CHASSIS

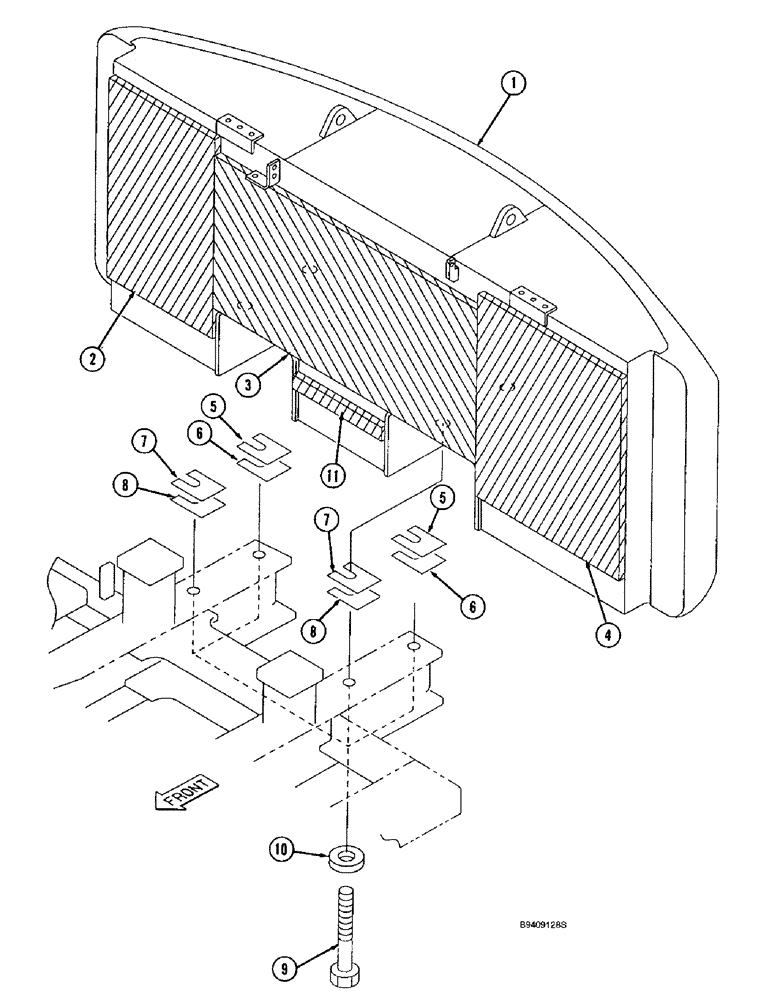

Схема запчастей Case 9040B - (9-016) - COUNTERWEIGHT, ALL MODELS EXCEPT LONG REACH (25 FT. 11 INCH ARM) MODELS (09) - CHASSIS
6
6
8
3
7
1
10
9
4
8
11
7
5
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

165320A1

WEIGHT PACKAGE

COUNTERWEIGHT - 4500 kgs (9923 lbs), replaces 159429A1, counterweight, standard and special application models only

1шт.

1

164212A1

WEIGHT PACKAGE

COUNTERWEIGHT - 5620 kgs (12392 lbs), Timber King models only

1шт.

2

158939A1

NOISE PROTECTION

INSULATION - acoustic, right-hand

1шт.

3

158938A1

NOISE PROTECTION

INSULATION - acoustic, upper center

1шт.

4

158940A1

NOISE PROTECTION

INSULATION - acoustic, left-hand

1шт.

5

158933A1

SHIM

- plate, 0.8 mm (0.03 inch) thick

2шт.

6

158934A1

SHIM

- plate, 1.2 mm (0.05 inch) thick

2шт.

7

158935A1

ADJUSTING PLATE

SHIM - plate, 2.3 mm (0.09 inch) thick

2шт.

8

158936A1

ADJUSTING PLATE

SHIM - plate, 4.5 mm (0.18 inch) thick

2шт.

9

159427A1

BOLT,Spcl, Hex, M30 x 290mm

BOLT - special

4шт.

10

163858A1

WASHER

- high strength, replaces 157545A1

4шт.

11

158941A1

NOISE PROTECTION

INSULATION - acoustic, lower center

1шт.
