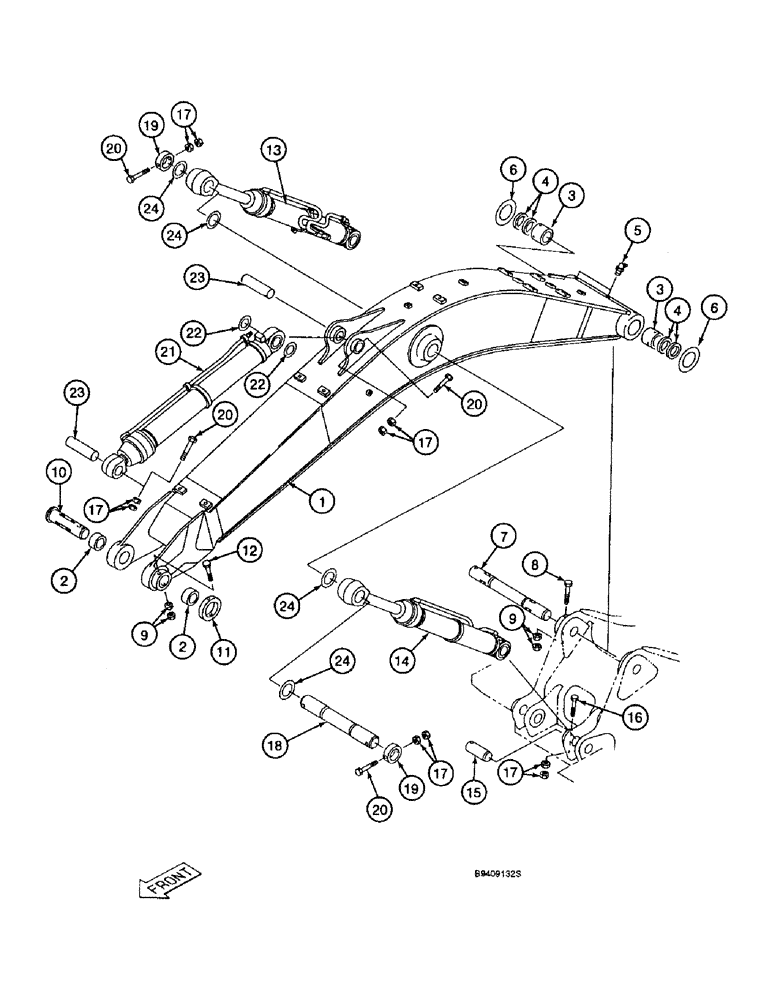

Запчасти Case 9040B (9-090) - BOOM, MOUNTING PINS AND CYLINDERS, STANDARD MODELS ONLY (09) - CHASSIS

1

165136A1

BOOM

ASSEMBLY - excavator, replaces 159454A1, boom assembly

1шт.

2

159460A1

RING

BUSHING - at arm

2шт.

3

159448A1

BUSHING,100mm ID x 115mm OD x 100mm L

- pin, at turntable

2шт.

4

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

- dust

4шт.

5

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

2шт.

6

151231A1

SHIM

- 101 ID x 219 O.D. x 1.2 mm, Serial Range: boom-turntable

1шт.

7

159442A1

PIN

- attaching, Serial Range: boom-turntable

1шт.

8

514-1502

BOLT,Hex, M30 x 2 x 200mm, Cl 10.9

- hex, 30 - 2.0 x 200 mm. class 10.9

1шт.

9

825-11330

NUT,M30 x 2, Cl 8

- hex, 30 mm - 2

4шт.

10

159441A1

PIN

- attaching, Serial Range: boom-arm

1шт.

11

159461A1

COLLAR CLAMP

COLLAR - pin retaining

1шт.

12

514-1503

BOLT,Hex, M30 x 2 x 230mm, Cl 10.9

- hex, 30 - 2.0 x 230 mm, class 10.9

1шт.

13

159462A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 130 (5-1/8) ID x 1278 mm (50-3/16 inch) stroke, boom, right-hand, models without load hold only, parts list figure 8-164

1шт.

Models without load hold only

1шт.

13

162815A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 130 (5-1/8) ID x 1278 mm (50-3/16 inch) stroke, boom, right-hand, models with load hold only, parts list figure 8-168

1шт.

Models with load hold only

1шт.

14

159463A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 130 (5-1/8) ID x 1278 mm (50-3/16 inch) stroke, boom, left-hand, models without load hold only, parts list figure 8-164

1шт.

Models without load hold only

1шт.

14

162815A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 130 (5-1/8) ID x 1278 mm (50-3/16 inch) stroke, boom, left-hand, models with load hold only, parts list figure 8-168

1шт.

Models with load hold only

1шт.

15

159446A1

PIN,90mm OD x 261mm L

- attaching, boom cylinder at frame

2шт.

16

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

- hex, 20 - 1.5 x 170 mm, class 10.9

2шт.

17

829-11420

NUT,M20 x 1.5, Cl 10

- hex, 20 mm - 1.5, class 10

12шт.

18

159445A1

PIN

- attaching, boom cylinder at boom

1шт.

19

159440A1

COLLAR

- pin retaining

2шт.

20

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

- hex, 10 - 1.5 x 170 mm, class 10.9

4шт.

21

159453A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 150 (5-15/16) ID x 1632 mm (64-1/4 inch) stroke, arm, models without load hold only, parts list figure 8-172

1шт.

Models without load hold only

1шт.

21

162816A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 150 (5-15/16) ID x 1632 mm (64-1/4 inch) stroke, arm, models with load hold only, parts list figure 8-172

1шт.

Models with load hold only

1шт.

22

159451A1

SHIM

- special, arm, Serial Range: cylinder-boom

2шт.

23

159447A1

PIN,90mm OD x 285mm L

- attaching, arm cylinder

2шт.

24

159458A1

ADJUSTING PLATE

SHIM - 0.13 mm (.005 inch), boom, Serial Range: cylinder-boom

4шт.
