(9-092) - BOOM, MOUNTING PINS AND CYLINDERS, LONG REACH (25 FT. 11 INCH ARM) MODELS ONLY

Запчасти Case 9040B (9-092) - BOOM, MOUNTING PINS AND CYLINDERS, LONG REACH (25 FT. 11 INCH ARM) MODELS ONLY (09) - CHASSIS

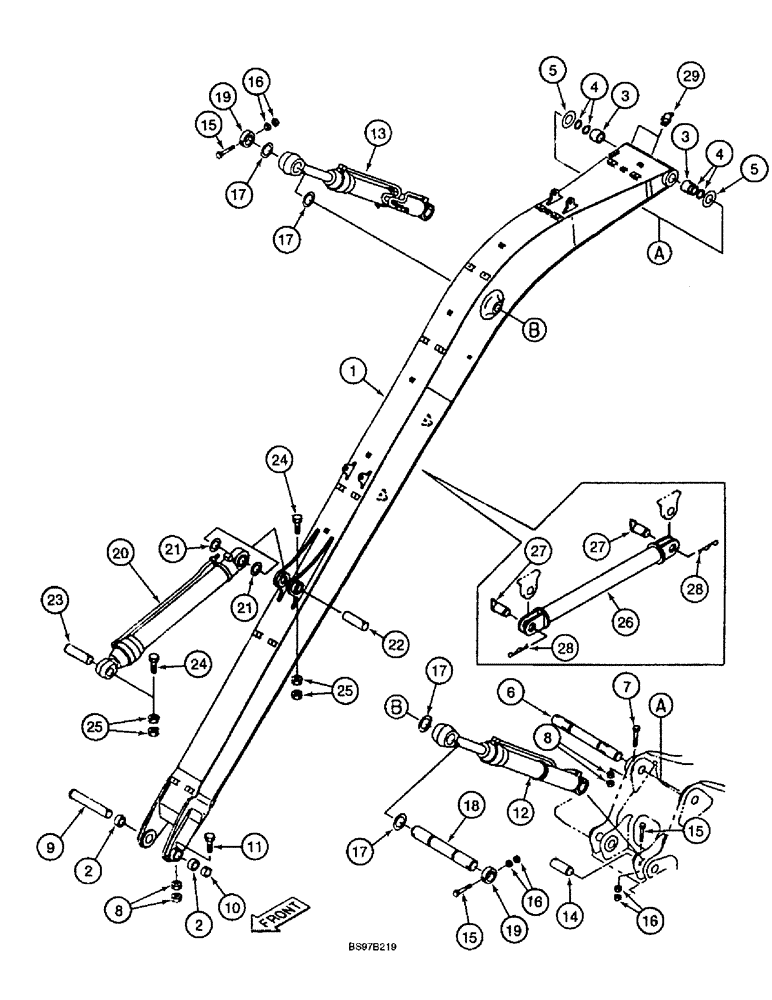

Схема запчастей Case 9040B - (9-092) - BOOM, MOUNTING PINS AND CYLINDERS, LONG REACH (25 FT. 11 INCH ARM) MODELS ONLY (09) - CHASSIS
17
20
29
24
16
23
28
15
24
17
22
17
18
26
7
15
2
19
25
1
16
13
4
8
21
4
14
21
3
12
16
5
6
2
18
8
3
28
10
9
25
11
5
27
15
17
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

164413A1

BOOM

- excavator, Includes: Ref. 2 and 3

1шт.

2

159460A1

RING

BUSHING - pin, at arm

2шт.

3

159448A1

BUSHING,100mm ID x 115mm OD x 100mm L

- at turntable

2шт.

4

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

- dust

4шт.

5

151231A1

SHIM

- 101 ID x 219 OD x 1.2 mm, Serial Range: boom-turntable

2шт.

6

164417A1

PIN

- attaching, Serial Range: boom-turntable

1шт.

7

514-1502

BOLT,Hex, M30 x 2 x 200mm, Cl 10.9

- hex, 30 - 2.0 x 200 mm. class 10.9

1шт.

8

825-11330

NUT,M30 x 2, Cl 8

- hex, 30 mm - 2

4шт.

9

159441A1

PIN

- attaching, Serial Range: boom-arm

1шт.

10

159461A1

COLLAR CLAMP

COLLAR - pin retaining

1шт.

11

514-1503

BOLT,Hex, M30 x 2 x 230mm, Cl 10.9

- hex, 30 - 2.0 x 230 mm, class 10.9

1шт.

12

159463A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 130 (5-1/8) ID x 1278 mm (50-3/16 inch) stroke, boom, models without load hold only, parts list figure 8-164

1шт.

Models without load hold only

1шт.

12

162815A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 130 (5-1/8) ID x 1278 mm (50-3/16 inch) stroke, boom, models with load hold only, parts list figure 8-168

1шт.

Models with load hold only

1шт.

13

159462A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 130 (5-1/8) ID x 1278 mm (50-3/16 inch) stroke, boom, models without load hold only, parts list figure 8-164

1шт.

Models without load hold only

1шт.

13

162815A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 130 (5-1/8) ID x 1278 mm (50-3/16 inch) stroke, boom, models with load hold only, parts list figure 8-168

1шт.

Models with load hold only

1шт.

14

159446A1

PIN,90mm OD x 261mm L

- attaching, boom cylinder at frame

2шт.

15

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

- hex, 20 - 1.5 x 170 mm, class 10.9

4шт.

16

829-11420

NUT,M20 x 1.5, Cl 10

- hex, 20 mm - 1.5, class 10

8шт.

17

159458A1

ADJUSTING PLATE

SHIM - 0.13 mm (.005 inch), boom, Serial Range: cylinder-boom

4шт.

18

159445A1

PIN

- attaching, boom, Serial Range: cylinder-boom

1шт.

19

159440A1

COLLAR

- pin retaining

2шт.

20

151155A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 160 (6-1/4) ID x 1733 mm (68-1/4 inch) stroke, arm, models without load hold only, parts list figure 8-176

1шт.

Models without load hold only

1шт.

20

165554A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 160 (6-5/16) ID x 1733 mm (68-1/4 inch) stroke, arm, models with load hold only, parts list figure 8-175A

1шт.

Models with load hold only

1шт.

21

151247A1

ADJUSTING PLATE

SHIM - arm, Serial Range: cylinder-boom

2шт.

22

151194A1

PIN

- arm cylinder, arm cylinder

1шт.

23

151194A1

PIN

- arm cylinder, Serial Range: boom-arm

1шт.

24

514-1218

BOLT,Hex, M20 x 1.5 x 180mm, Cl 10.9

- hex, 24 - 1.5 x 180 mm, class 10.9

2шт.

25

829-11420

NUT,M20 x 1.5, Cl 10

- hex, 20 mm - 1.5, class 10, models without load hold only

4шт.

25

161664A1

NUT

- hex, high strength, models with load hold only

4шт.

26

164418A1

BRACE

STAY - special

1шт.

27

158350A1

PIN

- special

2шт.

28

150085A1

COTTER PIN

- clip

2шт.

29

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

2шт.
