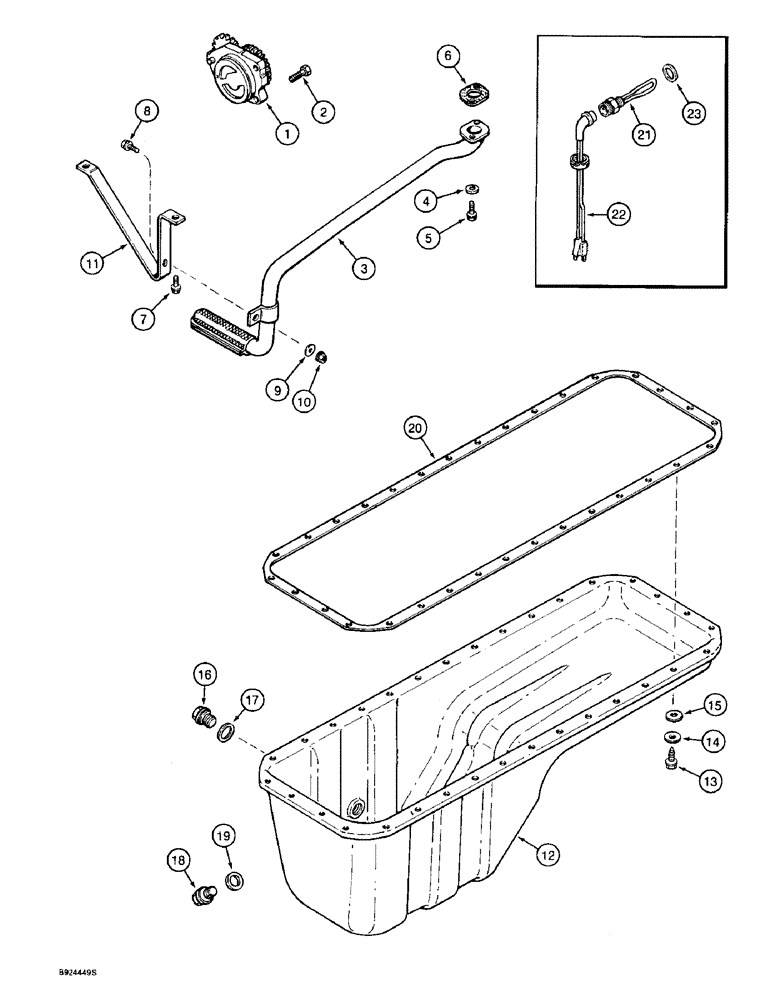

Запчасти Case 9040B (2-44) - OIL PUMP AND OIL PAN, 6T-830 ENGINE, PRIOR TO P.I.N. DAC04#2001 (02) - ENGINE

1

J930338

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, 24 teeth drive gear, replaces J926201 pump assembly

1шт.

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump, 24 teeth drive gear; For N.A. only; replaces JR926201 pump assembly

1шт.

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

2

J900677

BOLT,Hex

BOLT - hex, full threads, 8 - 1.25 x 30 mm

4шт.

3

J910788

TUBE ASSY.

TUBE - with screen, oil suction

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

SPACER - mounting, oil suction tube to cylinder block, replaces J908738

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 30 mm, Mounting, Tube to block

2шт.

6

J914302

GASKET

GASKET - mounting, oil suction tube

1шт.

Part of oil pan gasket kit P/N A77679.

1шт.

7

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, , Brace to block Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

8

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 20 mm, brace to tube

1шт.

9

J910960

WASHER

WASHER - flat, special

1шт.

10

J906216

FLANGE NUT

NUT - hex flange, special, 6 mm - 1.0

1шт.

11

J927611

BRACKET

BRACE - suction tube, replaces J913427 brace

1шт.

12

J914013

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

13

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW, Hex, Flg Hd, M8 x 21, Spcl

32шт.

14

J910266

LOCK WASHER

WASHER - spring, Belleville

32шт.

15

J908316

WASHER

WASHER - flat, special, 9 x 16 x 1 mm

32шт.

16

J924148

PLUG,M22 x 1.5

PLUG - hex magnetic, special, 22 mm - 1.5

1шт.

17

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

Part of oil pan gasket kit P/N A77679.

1шт.

18

J924147

PLUG,M18 x 1.5

PLUG - hex magnetic, special, 12 mm - 1.5

1шт.

19

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

Part of oil pan gasket kit P/N A77679.

1шт.

20

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

Part of oil pan gasket kit P/N A77679.

1шт.

A77679

GASKET KIT

KIT - gasket, oil pan, Includes: Refs. 6, 17, 19 and 20

1шт.

A77580

SERVICE KIT

KIT - oil pan heater, also order Ref. 23, J902425 washer

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater,120 volt, oil pan kit

1шт.

22

J905113

CABLE

CABLE - engine block heater, oil pan kit

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug, oil pan heater kit

1шт.
