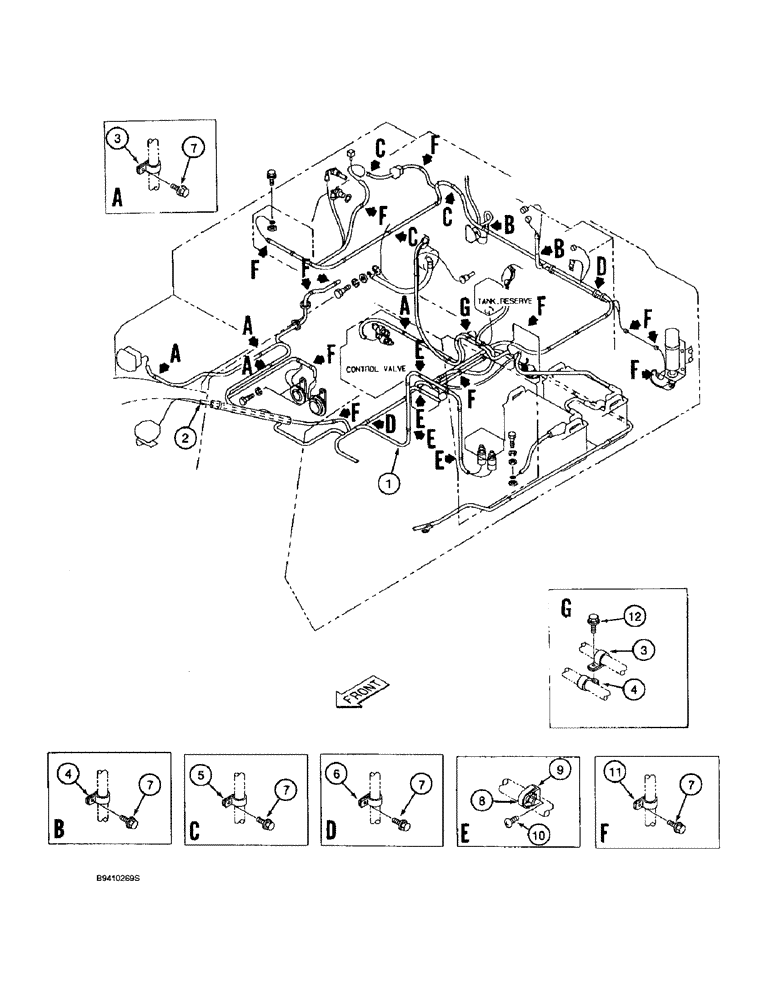

Запчасти Case 9040B (4-14) - MAIN ELECTRICAL SYSTEM CLAMPING, PRIOR TO P.I.N. DAC04#2001 (04) - ELECTRICAL SYSTEMS

1

164723A1

HARNESS

- main wiring, replaces 161071A1 harness, see figure 4-10 for connections

1шт.

2

159913A1

HARNESS

- wiring, working lamps, see figure 4-10

1шт.

3

157806A1

COLLAR

CLAMP - P-type

1шт.

4

157807A1

COLLAR

CLAMP - P-type, 20 mm ID

1шт.

5

159024A1

COLLAR

CLAMP - P-type

1шт.

6

157808A1

COLLAR

CLAMP - P-type

1шт.

7

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

8

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

9

150860A1

COLLAR

BRACKET - support

1шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

1шт.

11

153039A1

CLAMP

- P-type, 12 mm ID

1шт.

12

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

BOLT - special

1шт.
