(8-092) - PEDAL OPERATED REMOTE CONTROL VALVE, FOUR SPOOL

Запчасти Case 9045B (8-092) - PEDAL OPERATED REMOTE CONTROL VALVE, FOUR SPOOL (08) - HYDRAULICS

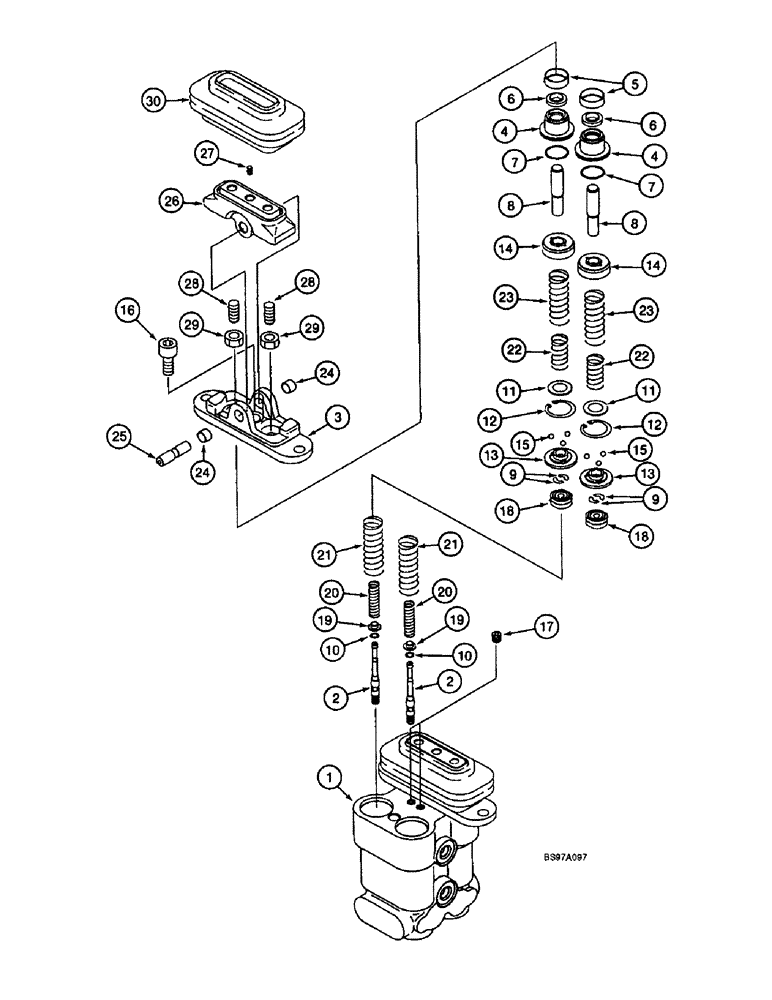

Схема запчастей Case 9045B - (8-092) - PEDAL OPERATED REMOTE CONTROL VALVE, FOUR SPOOL (08) - HYDRAULICS
15
27
20
21
18
9
7
19
14
8
10
20
24
2
19
2
6
18
22
28
11
23
16
21
12
6
15
29
29
4
1
30
12
26
14
13
7
25
4
11
10
3
5
17
8
9
28
23
24
22
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

165215A1

VALVE

ASSEMBLY - remote control, four spool, Includes: Ref. 1 - 30

1шт.

165203A1

SET OF PARTS

KIT - spool and housing, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

4шт.

3

165211A1

COVER

- valve

2шт.

4

165197A1

PLUG

GLAND - push rod

4шт.

5

165210A1

CAP

CUP - grease

4шт.

165204A1

SEAL KIT

KIT - gland, push rod, Includes: Ref. 6 and 7

1шт.

6

165195A1

SCRAPER RING

PACKING - gland

4шт.

7

165194A1

O-RING

- gland seal

4шт.

8

165229A1

PUSH ROD

ROD - push

4шт.

9

LA00056

WASHER

- flat, special; Replaces 160286A1

8шт.

10

160285A1

WASHER

- flat, special

4шт.

11

165205A1

SPRING SEAT

SEAT - spring

4шт.

12

165198A1

RING, SNAP

RING - retaining

4шт.

13

165196A1

BUSHING

SEAT - spring

4шт.

14

165199A1

PISTON

- push rod

4шт.

15

165200A1

BALL

- steel

12шт.

16

862-12055

HEX SOC SCREW,M12 x 55mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 55 mm, class 12.9

2шт.

17

156972A1

PLUG

- port

2шт.

18

165207A1

SPRING SEAT

SPRING - valve

4шт.

19

160283A1

WASHER

- spring seat

4шт.

20

160249A1

SPRING

- spool

4шт.

21

160250A1

SPRING

- spool, outer

4шт.

22

165277A1

SPRING

- valve

4шт.

23

165208A1

SPRING

- valve

4шт.

24

160035A1

BUSHING

- camshaft

4шт.

25

160022A1

SHAFT

- cam, valve

2шт.

26

160090A1

CAM

- valve spool

2шт.

27

160071A1

SET SCREW

- set

2шт.

28

160282A1

SCREW

- push rod

4шт.

29

160281A1

LOCK NUT

- lock, push rod screw

4шт.

30

160001A1

BELLOWS

- valve dust cover

2шт.
