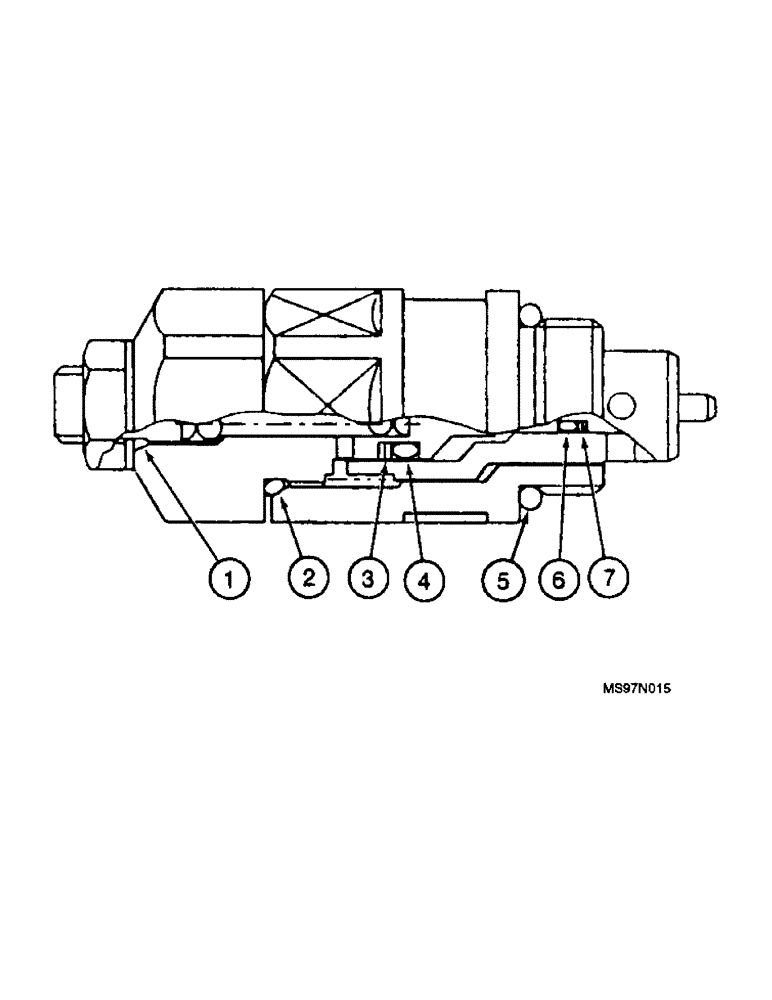

Запчасти Case 9045B (8-106) - HYDRAULIC CONTROL VALVE COMPONENTS, RELIEF VALVE COMPONENTS (08) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - control, see Figure 8-94 for correct valve assembly and parts list Figures 8-94 - 8-108 for components, Includes: Ref. 1 - 7

1шт.

164457A1

VALVE

ASSEMBLY - relief, Includes: Ref. 1 - 7

1шт.

163380A1

VALVE

ASSEMBLY - relief, Includes: Ref. 1 - 7

1шт.

1

154463A1

O-RING

- valve

1шт.

2

155223A1

O-RING

- valve

1шт.

3

164905A1

BACK-UP RING

RING - backup, valve

2шт.

4

164906A1

O-RING

- valve

1шт.

5

155223A1

O-RING

- valve

1шт.

6

163323A1

O-RING

- valve

1шт.

7

164575A1

BACK-UP RING

RING - backup, valve

2шт.
