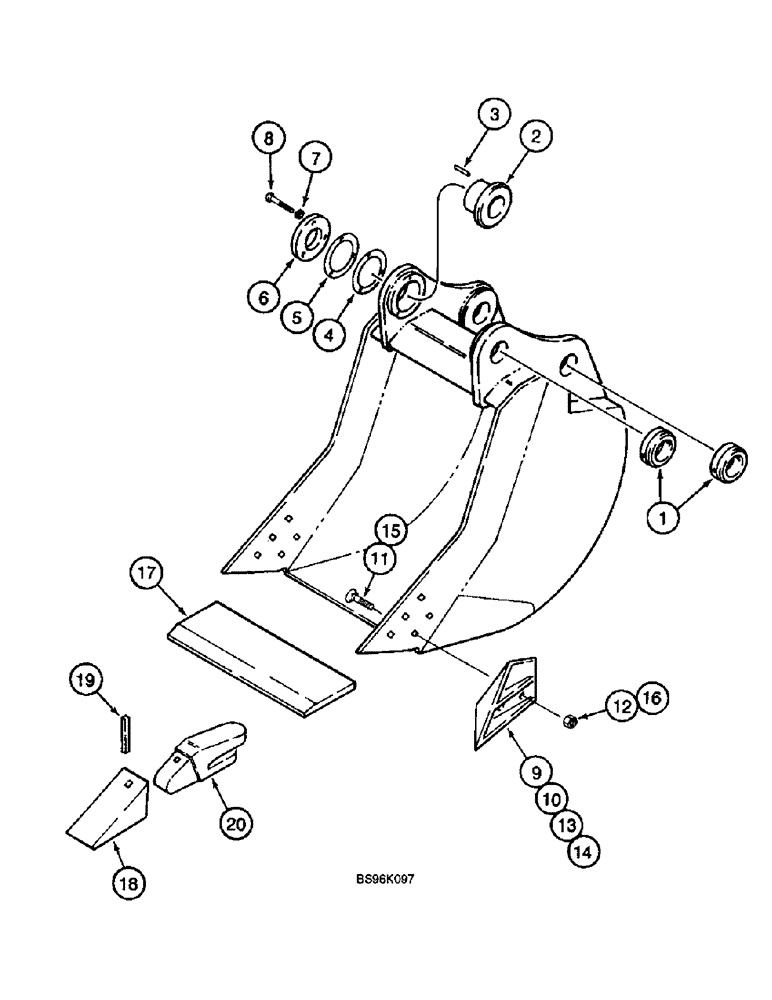

Запчасти Case 9045B (9-096) - H & H BUCKETS, SEVERE DUTY (09) - CHASSIS

REF

INSTRUCTION

BUCKET ASSEMBLY - 30 inch (762 mm), with 4 teeth, 0.92 cu. yd., order bucket assembly from Machinery Price List, Includes: Ref. 1 - 21

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 36 inch (914 mm), with 4 teeth, 1.15 cu. yd., order bucket assembly from Machinery Price List, Includes: Ref. 1 - 21

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 42 inch (1067 mm), with 5 teeth, 1.38 cu. yd., order bucket assembly from Machinery Price List, Includes: Ref. 1 - 21

1шт.

Order bucket assembly from Machinery Price List

1шт.

1

125671A1

BUSHING

- bucket, with locking collar

2шт.

2

125667A1

BUSHING

- bucket, adjustable, Includes: Ref. 3

1шт.

3

125664A1

DOWEL

PIN - dowel, special

1шт.

4

125668A1

SHIM

- plate mounting

1шт.

5

125669A1

SHIM

- plate mounting

1шт.

6

125670A1

RETAINER

PLATE - bushing

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

8

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

112780A1

EDGE, CUTTING

KIT - side cutting edge, 4 inch, Includes: Ref. 9 - 12

1шт.

9

125930A1

CUTTER

EDGE - side cutting, left-hand, 102 mm (4 inch)

1шт.

10

125932A1

CUTTER

EDGE - side cutting, right-hand, 102 mm (4 inch)

1шт.

11

320-21648

CARRIAGE BOLT,#3, 1" - 8 x 3", Gr 8

BOLT - plow, #3 head, 1 NC x 3 inch, grade 8

10шт.

12

232-41316

NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

10шт.

112804A1

HALF BLADE

KIT - side cutter blade, 5 inch, Includes: Ref. 13 - 16

1шт.

13

125934A1

EDGE, CUTTING

EDGE - side cutting, left-hand, 127 mm (5 inch)

1шт.

14

125936A1

EDGE, CUTTING

EDGE - side cutting, right-hand, 127 mm (5 inch)

1шт.

15

320-21656

CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8

BOLT - plow, #3 head, 1 NC x 3-1/2 inch, grade 8

10шт.

16

232-41316

NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

10шт.

17

125726A1

EDGE, CUTTING

EDGE - cutting, center, 762 mm (30 inch) bucket, severe duty

1шт.

17

125727A1

EDGE, CUTTING

EDGE - cutting, center, 914 mm (36 inch) bucket, severe duty

1шт.

17

125728A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket, severe duty

1шт.

18

122671A1

TOOTH

- standard point, cutting edge, severe duty

1шт.

See Figures 9-102 and 9-104 for point, pin and shank options.

1шт.

19

122672A1

FASTENER

PIN - flex, tooth to shank, cutting edge, severe duty

1шт.

See Figures 9-102 and 9-104 for point, pin and shank options.

1шт.

20

122673A1

BUCKET TOOTH SHANK

- tooth, 2 inch, tooth, standard, cutting edge, severe duty

1шт.

See Figures 9-102 and 9-104 for point, pin and shank options.

1шт.

21

112803A1

CATALOG

TOOTH - ripper, frost, not shown, cutting edge, severe duty

1шт.

Frost ripper tooth art and parts list information to be provided at a later date.

1шт.
