(8-030) - SWING CONTROL LINES

Запчасти Case 9045B (8-030) - SWING CONTROL LINES (08) - HYDRAULICS

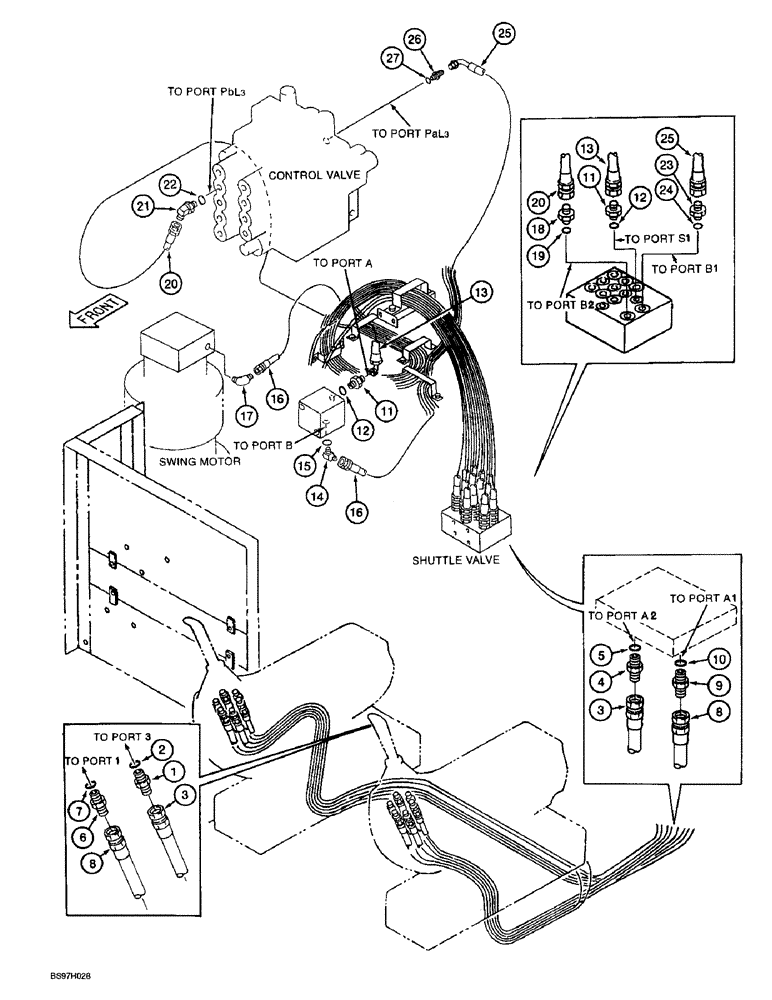

Схема запчастей Case 9045B - (8-030) - SWING CONTROL LINES (08) - HYDRAULICS
23
16
9
13
21
8
18
4
6
3
16
22
3
19
10
20
12
5
11
14
27
26
13
8
11
2
24
20
15
25
1
25
17
7
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152747A1

ADAPTER

- straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159215A1

HYDRAULIC HOSE,9.50 mm ID x 1650.00 mm

- Swing-left line (LH controller port 3 to shuttle valve port A2) 9.50 mm ID x 1650.00 mm

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

6

152747A1

ADAPTER

- straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

159216A1

HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm

- Swing right line (LH controller port 1 to shuttle valve port A1) 9.50 mm ID x 1750.00 mm

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 12

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

159019A1

HOSE ASSY.

HOSE - 900 mm (35-7/8 inch) long, swing control line (shuttle valve port S1 to swing brake release valve port B)

1шт.

14

150933A1

ELBOW

- 45 degree, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

16

152773A1

HOSE ASSY.

HOSE - 1850 mm (72-13/16 inch) long, swing control line (swing brake release valve port A to swing motor

1шт.

17

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

18

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

20

152771A1

HOSE ASSY.

HOSE - 3000 mm (118-1/8 inch) long, swing left line (shuttle valve port B2 to control valve port PbL3)

1шт.

21

153559A1

ELBOW

- 90 degree, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

23

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 24

1шт.

24

154475A1

O-RING

- adapter

1шт.

25

161487A1

HOSE ASSY.

HOSE - 2800 mm (110-1/4 inch) long, swing right line (shuttle valve port B1 to control valve port PsL3)

1шт.

26

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.
