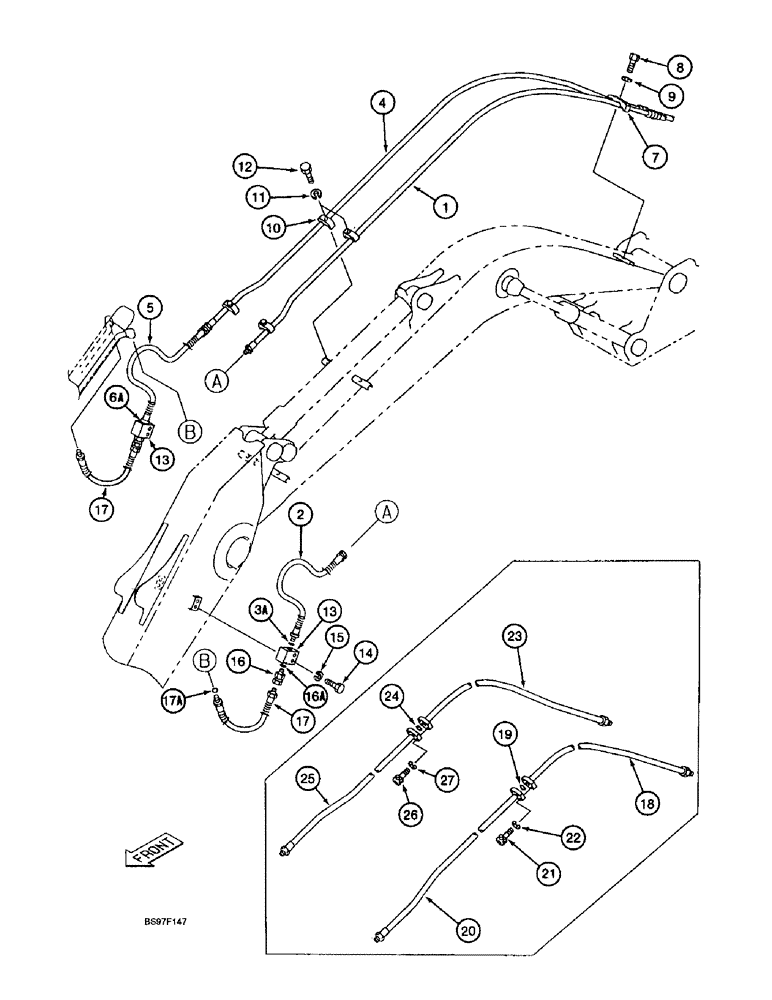

Запчасти Case 9045B (8-057A) - BUCKET CYLINDER LINES, 4.0 METER ARM (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

TUBE - bucket-open line, replace with Kit No. 159476A1 shown below

1шт.

2

159743A1

HYDRAULIC HOSE,1700.00 mm

- Bucket-open line to manifold, Includes Ref. 3A 1700.00 mm

1шт.

3a

154503A1

O-RING

- line seal, used on models with load hold only

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE - bucket-close line, replace with Kit No. 159475A1 shown below

1шт.

5

159743A1

HYDRAULIC HOSE,1700.00 mm

- Bucket-close line to manifold, Includes Ref. 6A 1700.00 mm

1шт.

6a

154503A1

O-RING

- line seal, used on models with load hold only

1шт.

7

159742A1

COLLAR

CLAMP - bucket cylinder lines

1шт.

8

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

10

151486A1

CLAMP BRACKET

CLAMP - bucket cylinder lines

4шт.

11

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

12

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

4шт.

13

153644A1

MANIFOLD

- hydraulic

2шт.

14

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

- hex, 12 - 1.75 x 75 mm, class 10.9

4шт.

15

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

16

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 16A

2шт.

16a

154503A1

O-RING

- adapter, used on models with load hold only

1шт.

17

163296A1

HYDRAULIC HOSE,19.00 mm ID x 1000.00 mm

- Manifold to bucket cylinder, Includes Ref. 17A 19.00 mm ID x 1000.00 mm

2шт.

17a

154503A1

O-RING

- line seal, used on models with load hold only

1шт.

159476A1

TUBE

KIT - bucket-open line, Includes: Ref. 18 - 22

1шт.

18

159474A1

TUBE

- replacement, input end, bucket-open line

1шт.

19

154528A1

O-RING

- line seal

1шт.

20

159473A1

TUBE,27.2 mm OD, 2419.9 mm Length

- replacement, output end, bucket-open line

1шт.

21

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

22

112309A1

LOCK WASHER

- lock, special

4шт.

159475A1

TUBE

KIT - bucket-close line, Includes: Ref. 23 - 27

1шт.

23

159472A1

TUBE

- replacement, input end, bucket-close line

1шт.

24

154528A1

O-RING

- line seal

1шт.

25

159471A1

TUBE

- replacement, output end, bucket-close line

1шт.

26

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

27

112309A1

LOCK WASHER

- lock, special

4шт.
