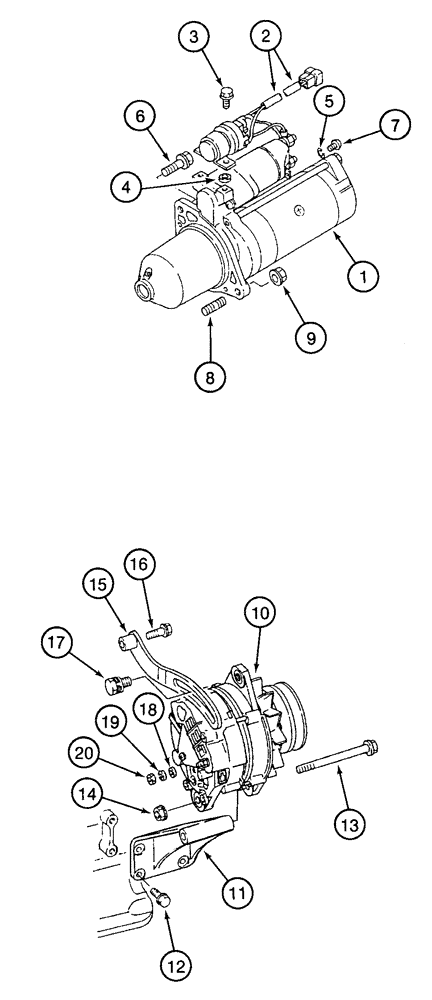

Запчасти Case 9050 (4-06) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

135035A1

STARTING MOTOR

24 volt parts list Figure 4-4

1шт.

2

135062A1

RELAY

safety control

1шт.

3

135089A1

BOLT,Hex Flg, M6 x 16mm

hex flange 6 x 16 mm

2шт.

4

135079A1

WASHER

flat

2шт.

5

135077A1

WASHER

lock 5 mm

1шт.

6

240363A1

BOLT

hex flange 12 x 40 mm

2шт.

7

135087A1

BOLT

CABLE electrical, heater

1шт.

8

135081A1

STUD

special 12 x 35 mm

1шт.

9

135085A1

FLANGE NUT

hex flange 12 mm

1шт.

10

135104A1

ALTERNATOR

24 volt, 40 ampere parts list Figure 4-2

1шт.

11

135115A1

BRACKET

alternator mounting

1шт.

12

132378A1

BOLT,Hex Flg, M10 x 20mm

hex flange 10 x 20 mm

4шт.

13

135145A1

BOLT,Hex Flg, M12 x 125mm

hex flange 12 x 125 mm

1шт.

14

135085A1

FLANGE NUT

hex flange 12 mm

1шт.

15

135112A1

BRACKET

BRACE alternator adjusting

1шт.

16

135146A1

BOLT,Hex Flg, M10 x 40mm

hex flange 10 x 40 mm

1шт.

17

135147A1

BOLT,M12 x 30mm, w/ Captive Wshr

with captive washer 12 x 30 mm

1шт.

18

135136A1

WASHER

flat 5 mm

1шт.

19

135077A1

WASHER

lock 5 mm

1шт.

20

135143A1

NUT

hex 5 mm

1шт.
