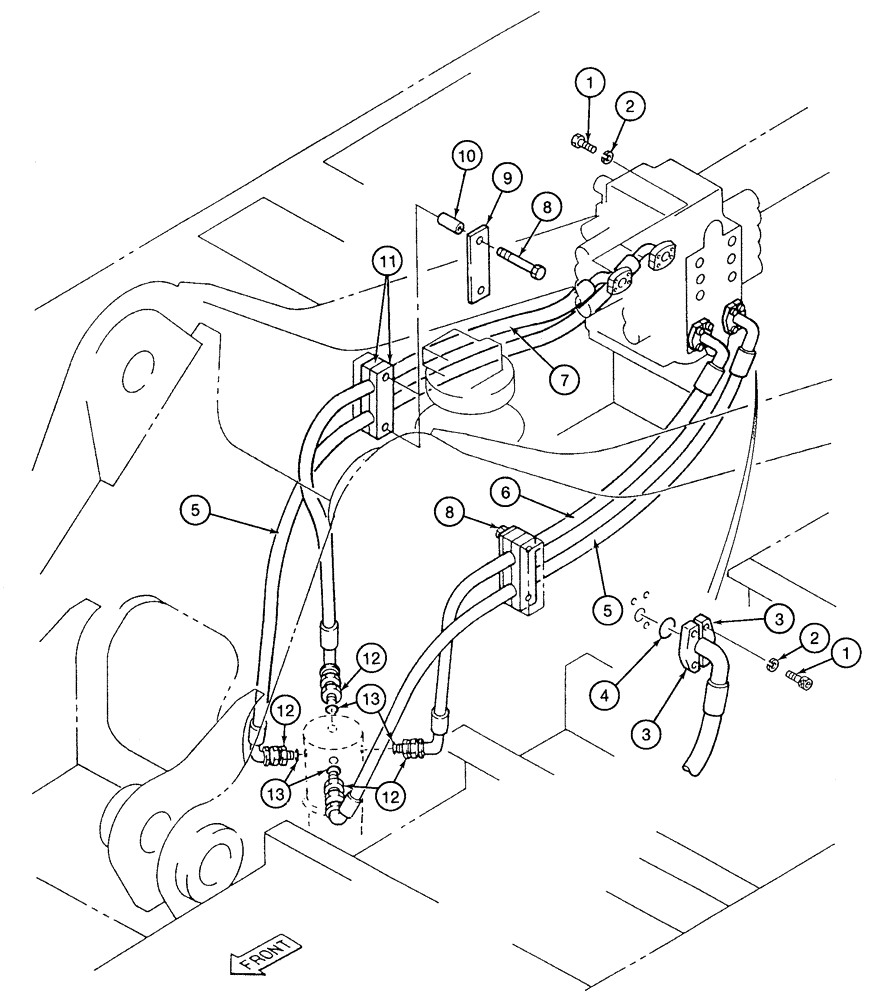

Запчасти Case 9050 (6-14) - TRACK DRIVE HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRAULIC SWIVEL (06) - POWER TRAIN

1

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.

2

112310A1

WASHER

lock, special

16шт.

3

153459A1

FLANGE

split

8шт.

4

162246A1

O-RING

, Serial Range: hose-valve

4шт.

5

153284A1

HOSE ASSY.

67-3/4 inch (1720 mm) long rear valve ports to front swivel ports

2шт.

6

153286A1

HOSE ASSY.

57-1/16 inch (1450 mm) long front valve port to left-hand rear swivel port

1шт.

7

153287A1

HOSE ASSY.

57-1/6 inch (1450 mm) long front valve port to right-hand rear swivel port

1шт.

8

828-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

9

152888A1

PLATE, SPACER

PLATE,SPACER hose clamp

2шт.

10

152895A1

SPACER

clamp

4шт.

11

152987A1

COLLAR

hose

4шт.

12

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight to swivel, Includes: Ref. 13

4шт.

13

154523A1

O-RING

adapter, at swivel

1шт.
