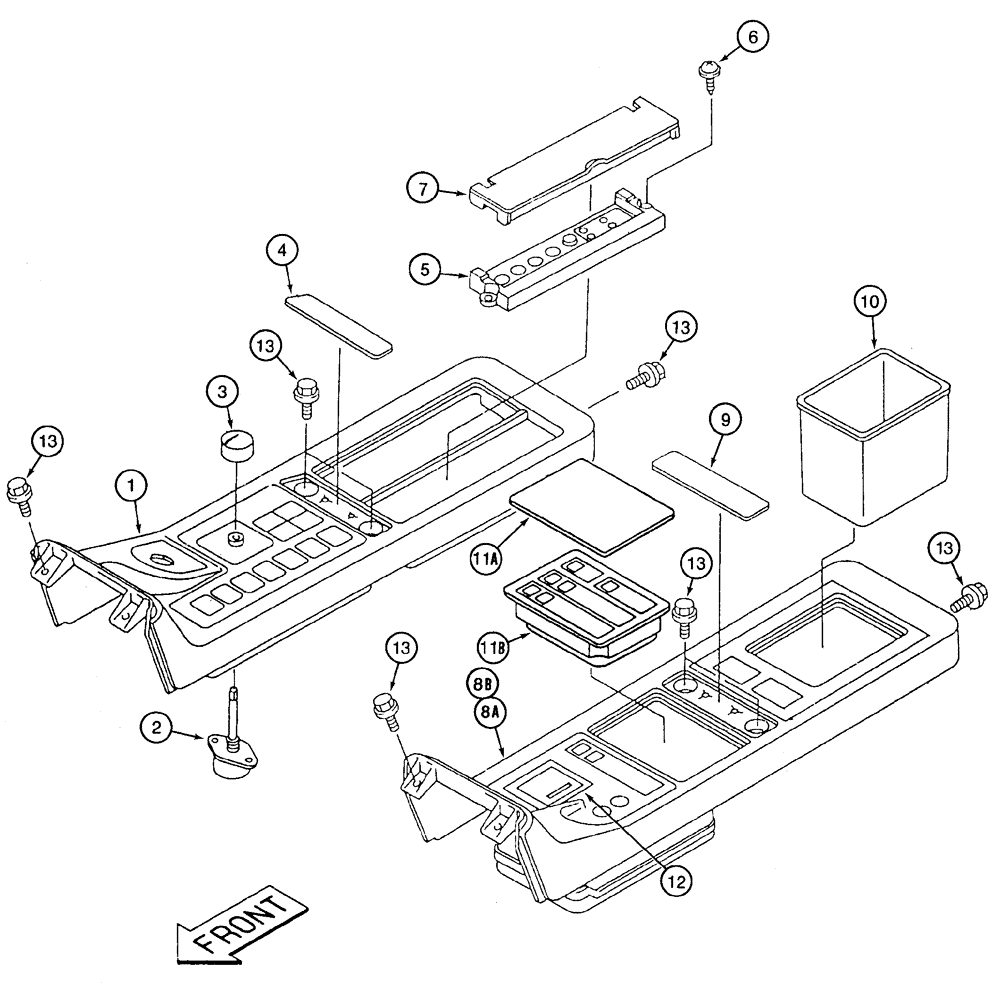

Запчасти Case 9050B (9-030) - CONSOLE BOX, CONTROL PANEL ASSEMBLIES (09) - CHASSIS

161312A1

CONSOLE

PANEL ASSEMBLY - control, console box, right-hand, Includes: Ref. 1 - 6

1шт.

1

162269A1

PANEL ASSY.

control, right-hand

1шт.

2

159614A1

THROTTLE SWITCH

engine speed rheostat

1шт.

3

159611A1

BUTTON

switch

1шт.

4

159612A1

CAP

PANEL - cover

1шт.

5

159627A1

COVER

PANEL - control panel, right-hand rear

1шт.

6

162161A1

SCREW

special

2шт.

7

159628A1

COVER

- control panel, right-hand rear

1шт.

7a

KHR3214

HARNESS

ignition switch, not shown

1шт.

163511A1

PANEL

ASSEMBLY - control, console box, left-hand machines with heater but no air conditioning, Includes: Ref. 8A - 13

1шт.

163512A1

PANEL

ASSEMBLY - control, console box, left-hand machines with heater and air conditioning, Includes: Ref. 8A - 13

1шт.

8a

162270A1

PANEL ASSY.

control, left-hand machines with heater but no air conditioning

1шт.

8b

162272A1

PANEL ASSY.

control, left-hand machines with heater and air conditioning

1шт.

9

159613A1

CAP

PANEL - cover

1шт.

10

159607A1

CASE

BOXK - control

1шт.

11a

159936A1

COVER

PANEL - cover machines without heater or air conditioning

1шт.

11b

162273A1

PANEL

switch, with LED indicators machines with heater and air conditioning

1шт.

12

162271A1

HOURMETER

engine operation time

1шт.

13

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special

12шт.
