(2-36) - OIL PAN, FILLER AND DIPSTICK, 6D22-T ENGINE

Запчасти Case 9050B (2-36) - OIL PAN, FILLER AND DIPSTICK, 6D22-T ENGINE (02) - ENGINE

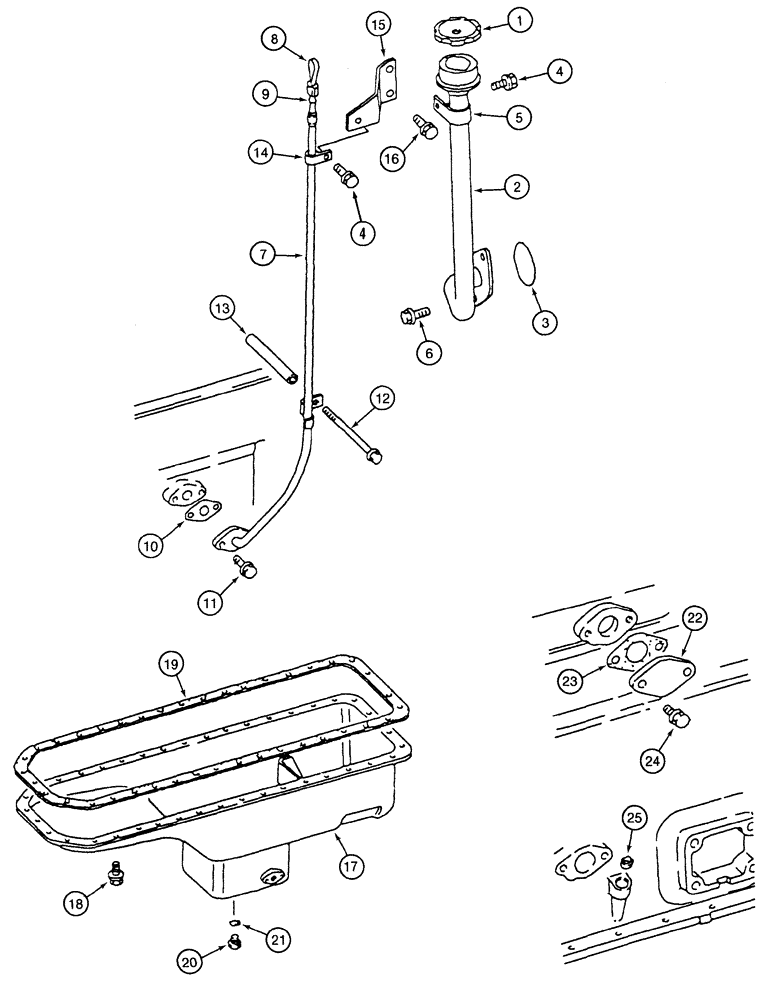

Схема запчастей Case 9050B - (2-36) - OIL PAN, FILLER AND DIPSTICK, 6D22-T ENGINE (02) - ENGINE
4
24
21
15
22
5
11
12
2
20
19
25
7
23
18
1
16
13
10
8
9
14
17
3
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

399725A1

PLUG

CAP - oil filler

1шт.

2

240055A1

TUBE

oil filler

1шт.

3

135150A1

O-RING

filler tube

1шт.

4

132373A1

BOLT,Hex Flg, M6 x 12mm

hex flange 6 x 12 mm

2шт.

5

133288A1

CLAMP

special 30 mm dia.

1шт.

6

132385A1

BOLT,Hex Flg, M12 x 25mm

- hex flange, 12 x 25 mm

2шт.

7

240058A1

GUIDE

TUBE - dipstick

1шт.

8

240057A1

GAUGE

DIPSTICK - engine oil level

1шт.

9

132399A1

O-RING

dipstick tube

1шт.

10

132394A1

GASKET

special

1шт.

11

132376A1

BOLT,Hex, M10 x 20mm, W/ Wshr

hex, with captive washer 10 x 20 mm

2шт.

12

240059A1

BOLT

hex flange 10 x 67 mm

1шт.

13

240056A1

SPACER

BRACKET - special

1шт.

14

132398A1

CLAMP

special 12.2 mm dia.

1шт.

15

240054A1

SUPPORT

CAP - oil filler tube

1шт.

16

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

2шт.

17

240052A1

PAN, ENGINE OIL

1шт.

18

132361A1

BOLT,Hex Flg, M10 x 18mm

hex flange 10 x 18 mm

37шт.

19

132356A1

OIL PAN GASKET SET

oil pan

1шт.

20

H410605

hex 18 mm

1шт.

21

133291A1

O-RING

seal 18 mm

1шт.

22

132671A1

COVER

cylinder block

1шт.

23

132396A1

GASKET

cover

1шт.

24

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

2шт.

25

132367A1

CAP

PLUG - special 15 mm engine block

1шт.
