(8-156) - PEDAL OPERATED REMOTE CONTROL VALVE, DOUBLE SECTION

Запчасти Case 9050B (8-156) - PEDAL OPERATED REMOTE CONTROL VALVE, DOUBLE SECTION (08) - HYDRAULICS

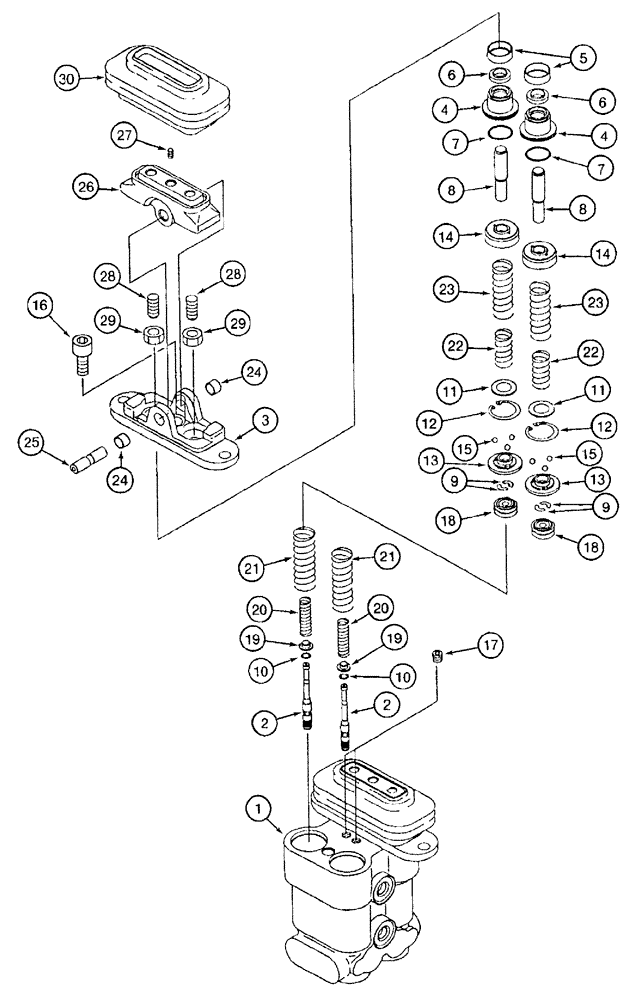

Схема запчастей Case 9050B - (8-156) - PEDAL OPERATED REMOTE CONTROL VALVE, DOUBLE SECTION (08) - HYDRAULICS
20
23
11
8
22
9
6
12
10
10
3
20
15
18
24
26
19
21
13
13
17
18
21
27
12
22
28
1
4
11
23
19
15
7
14
16
2
6
24
29
30
25
4
8
7
14
2
28
29
9
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

165193A1

VALVE

ASSEMBLY - remote control, Includes: Ref. 1 - 30

1шт.

165203A1

SET OF PARTS

pool and housing, Includes: Ref. 1 - 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

4шт.

3

165211A1

COVER

valve

2шт.

4

165197A1

PLUG

GLAND - push rod

4шт.

5

165210A1

CAP

CUP - grease

4шт.

165204A1

SEAL KIT

gland, push rod, Includes: Ref. 6 - 7

1шт.

6

165195A1

SCRAPER RING

gland

4шт.

7

165194A1

O-RING

gland seal

4шт.

8

165202A1

THREADED ROD

push

4шт.

9

LA00056

WASHER

flat, special; Replaces 160286A1

8шт.

10

160285A1

WASHER

flat, special

4шт.

11

165205A1

SPRING SEAT

4шт.

12

165198A1

RING, SNAP

RING SNAP retaining

4шт.

13

165196A1

BUSHING

SEAT - spring

4шт.

14

165199A1

PISTON

push rod

4шт.

15

165200A1

BALL

steel

12шт.

16

862-12055

HEX SOC SCREW,M12 x 55mm, Cl 12.9

hex socket, 12 - 1.75 x 55 mm, class 12.9

2шт.

17

156972A1

PLUG

port

2шт.

18

165206A1

SPRING SEAT

valve

4шт.

19

160283A1

WASHER

spring seat

4шт.

20

164507A1

SPRING

valve

4шт.

21

160250A1

SPRING

spool, outer

4шт.

22

165277A1

SPRING

valve

4шт.

23

165208A1

SPRING

SPRING - valve

4шт.

24

160035A1

BUSHING

camshaft

4шт.

25

160022A1

SHAFT

cam, valve

2шт.

26

160090A1

CAM

valve spool

2шт.

27

160071A1

SET SCREW

set

2шт.

28

160282A1

SCREW

push rod

4шт.

29

160281A1

LOCK NUT

lock, push rod screw

4шт.

30

160001A1

BELLOWS

valve dust cover

2шт.
