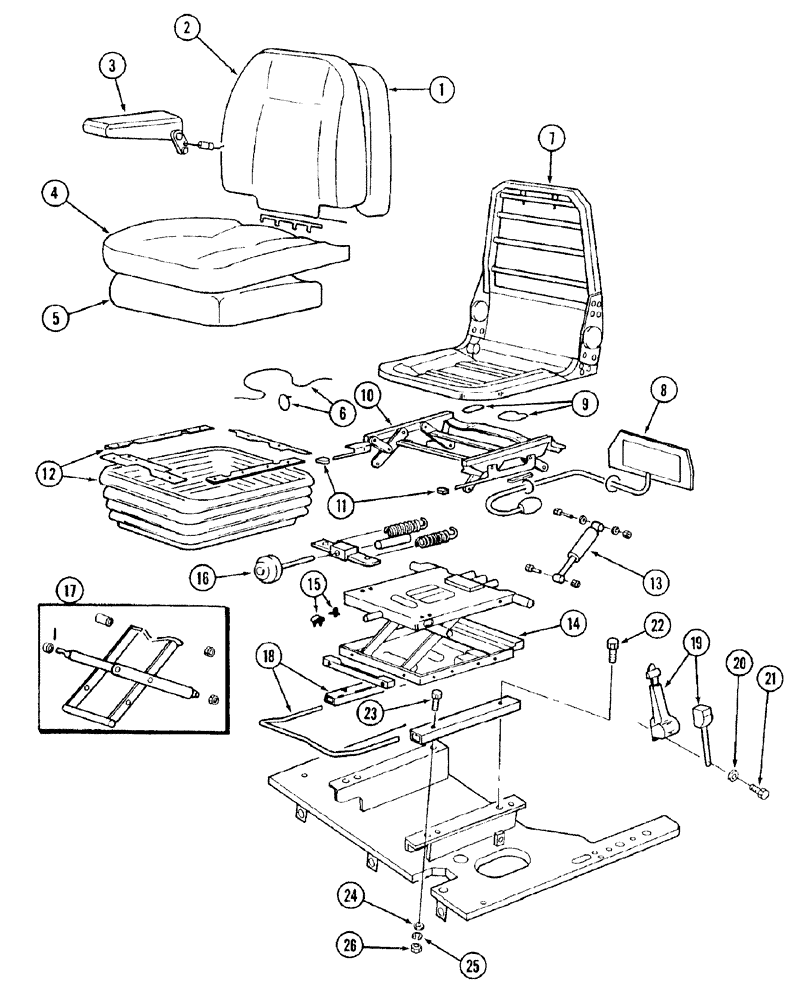

Запчасти Case 9050B (9-052) - 300642A1 SUSPENSION SEAT ASSEMBLY, P.I.N. EAC0501227 AND AFTER, SEAT BACK CUSHION HAS CASE LOGO (09) - CHASSIS/ATTACHMENTS

300642A1

SEAT ASSY.

operators, with belt and suspension, Includes: Ref. 1 - 21

1шт.

307040A1

SEAT ASSY.

operators, without belt or suspension, Includes: Ref. 1, 2, 4 - 8

1шт.

1

P4841461

CUSHION

seat back

1шт.

2

307042A1

DRIVER'S SEAT COVER

back

1шт.

2a

166096A1

HEADREST, SEAT

HEADREST seat, not shown

1шт.

3

307048A1

ARMREST ASSY.

Right Hand and Left Hand

1шт.

4

P2547002

SEAT COVER

cushion

1шт.

5

P4841462

CUSHION

seat

1шт.

6

P2447088

KIT

recliner cable

1шт.

7

307043A1

FRAMEWORK

KIT - seat frame

1шт.

8

307044A1

KIT

lumbar support, pneumatic

1шт.

307045A1

KIT

height riser, Includes: Ref. 9 - 11

1шт.

9

307046A1

KIT

spring, height riser

1шт.

10

NSS

NOT SOLD SEPARAT

RISER - height

1шт.

11

307047A1

SET OF PARTS

knobs, height riser

1шт.

12

307052A1

KIT

suspension cover

1шт.

307049A1

SUSPENSION

suspension, seat, Includes: Ref. 13 - 17

1шт.

13

P4143253

SHOCK ABSORBER

KIT - shock absorber, seat

1шт.

14

NSS

NOT SOLD SEPARAT

FRAME - suspension

1шт.

15

307050A1

KIT

suspension bumper stop

1шт.

16

P2447086

KIT

weight adjustment

1шт.

17

307051A1

BEARING ASSY

bearing, blocks and roll pins for four joints

1шт.

18

307053A1

KIT

slide rail, seat

1шт.

19

304621A1

SAFETY BELT

1шт.

20

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

21

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

22

863-8016

HEX SOC SCREW,M8 x 16mm, Cl 12.9

2шт.

23

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

25

892-11008

LOCK WASHER,8mm ID

With attached lockwasher

4шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Operator's manual tether

4шт.
