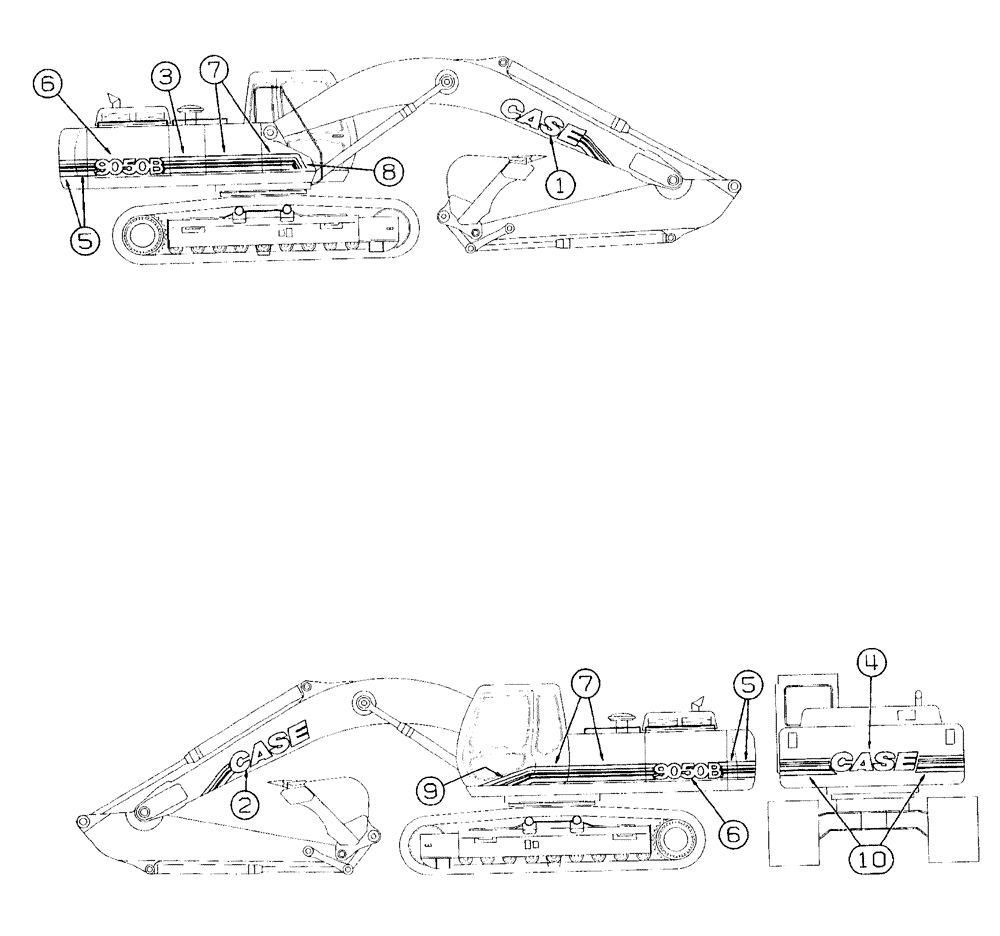

Запчасти Case 9050B (9-144) - DECALS, MODEL IDENTIFICATION AND STRIPING (09) - CHASSIS/ATTACHMENTS

1

163509A1

DECAL

DECAL - Case, boom, right-hand

1шт.

2

163508A1

DECAL

Case, boom, left-hand

1шт.

3

162938A1

DECAL

stripes, right-hand and left-hand rear corner and right-hand side on fuel tank, 620 mm (24-13/32 inch), on side o f hydraulic reservoir

1шт.

4

163507A1

DECAL

DECAL - Case, counterweight, center

1шт.

5

162941A1

ADHESIVE

DECAL - stripes, right-hand and left-hand, corners, 100 mm (3-13/16 inch)

4шт.

6

163506A1

DECAL

9050B model designation

2шт.

7

162943A1

DECAL

stripes, right-hand, front, 1300 mm (51-3/8 inch), on the sides

2шт.

8

162958A1

DECAL

DECAL - stripes, right-hand, front

1шт.

9

162945A1

DECAL

stripes, left-hand, front

1шт.

10

162944A1

DECAL

stripes, right-hand side, 900 mm (35-11/64 inch), on counterweight, left-hand and right-hand rear corners

2шт.
