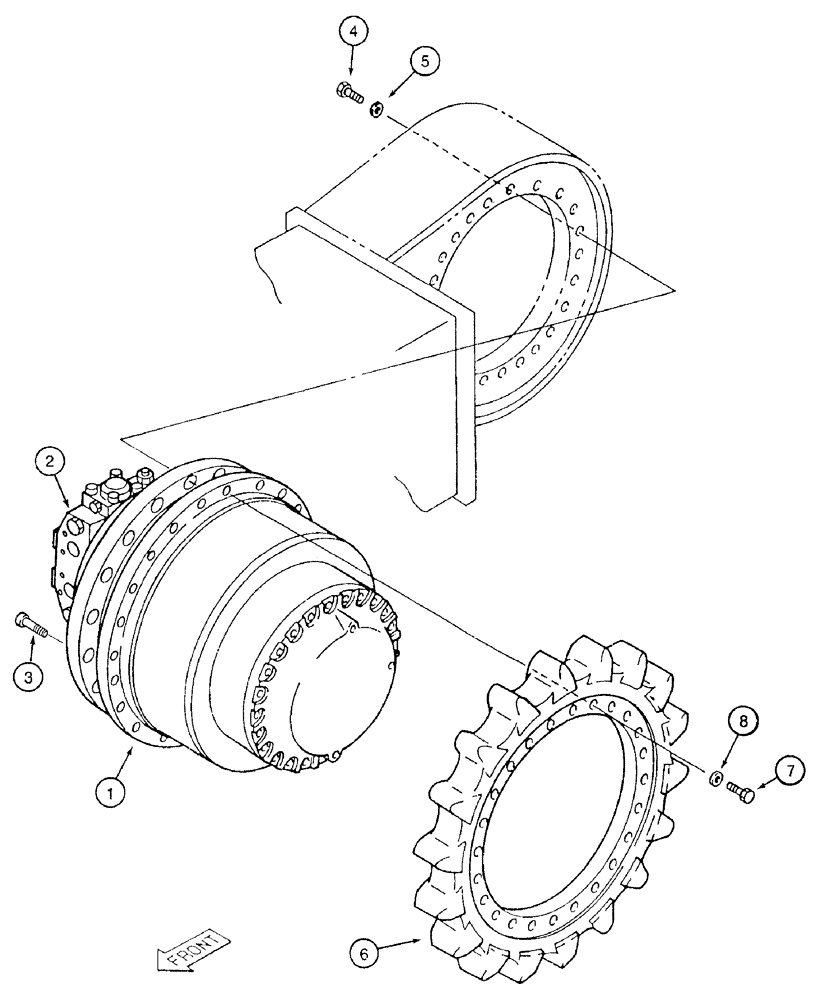

Запчасти Case 9050B (6-002) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR, MODELS WITHOUT TIMBER KING (06) - POWER TRAIN

162165A1

MOTOR

ASSEMBLY - track drive, Includes: Ref. 1-3

2шт.

1

168478A1

GEAR-SET

TRANSMISSION ASSEMBLY - final drive, without track drive motor, see figure 6-4

1шт.

2

162110A1

MOTOR, HYDRAULIC

ASSEMBLY - track drive, see figure 6-8

1шт.

3

863-12080

HEX SOC SCREW,M12 x 80mm, Cl 12.9

hex socket, 12 - 1.75 x 80 mm, class 12.9

3шт.

4

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

36шт.

5

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

flat, special

36шт.

6

173848A1

SPROCKET ASSY.

track drive, was 151758A1

2шт.

7

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

48шт.

8

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

flat, special, 20 mm

48шт.
